WOODWARD 8273-140 2301D 速度控制器
1.產 品 資 料 介 紹：
中文資料：
WOODWARD 8273-140 2301D速度控制器是一種用于控制發動機或發電機轉速的設備，由美國伍德沃德公司制造。這款產品屬于該公司的產品線，專門用于各種工業應用，包括發電機組、壓縮機、泵等設備，以確保這些設備在安全和穩定的轉速范圍內運行。這不僅可以提高設備的效率，延長設備的使用壽命，還可以保護設備免受過載或失速等問題的影響。
具體來說，WOODWARD 8273-140 2301D速度控制器在發電機組運營管理方面，可以確保發電機的轉速穩定，并協調發電機組的運行，以滿足電網需求。在工業生產過程控制中，如在壓縮機、泵等設備中，它可以用來調節設備的轉速，確保生產過程穩定、高效運行。
該速度控制器基于微處理器進行控制，與2301A LSSC具有相同的負載分配和速度控制功能。它置于一個金屬底板上，由一塊印刷電路板PCB組成?？刂破鞯墓ぷ麟娫措妷簽?4Vdc，并配備有可配置的I/O端口，包括一個執行器輸出通道、一個模擬量輸入和一個模擬量輸出通道。
此外，WOODWARD 8273-140 2301D速度控制器特別適用于以柴油機或燃氣發動機為動力的發電機，為其提供負荷分配和速度控制。發動機必須工作在900~3600rpm的范圍內。
在啟動過程中，該控制器采用自動啟動控制，通過識別柴油機由被動運轉到主動運轉的轉變，實現啟動過程的自動控制。此外，它還有一套詳細的設置和操作手冊，包括啟動過程的說明，以及執行器輸出轉速信號、輸入外接直流電源等設置和操作的具體步驟。
英文資料
WOODWARD 8273-140 2301D speed controller is a device used to control the speed of an engine or generator, manufactured by Woodward Corporation in the United States. This product belongs to the company's product line and is specifically designed for various industrial applications, including generator sets, compressors, pumps, and other equipment, to ensure that these devices operate within a safe and stable speed range. This can not only improve the efficiency of the equipment, extend its service life, but also protect the equipment from overload or stall issues.
Specifically, the WOODWARD 8273-140 2301D speed controller can ensure the stable speed of the generator and coordinate the operation of the generator to meet the needs of the power grid in the operation and management of the generator set. In industrial production process control, such as in compressors, pumps, and other equipment, it can be used to adjust the speed of the equipment to ensure stable and efficient operation of the production process.
This speed controller is controlled based on a microprocessor and has the same load distribution and speed control functions as the 2301A LSSC. It is placed on a metal substrate and consists of a printed circuit board PCB. The working power supply voltage of the controller is 24Vdc, and it is equipped with configurable I/O ports, including an actuator output channel, an analog input channel, and an analog output channel.
In addition, the WOODWARD 8273-140 2301D speed controller is particularly suitable for generators powered by diesel or gas engines, providing load distribution and speed control. The engine must operate within the range of 900~3600rpm.
During the start-up process, the controller adopts automatic start-up control, which realizes automatic control of the start-up process by identifying the transition of the diesel engine from passive operation to active operation. In addition, it also has a detailed set of settings and operation manuals, including instructions for the startup process, as well as specific steps for setting and operating the output speed signal of the actuator and the input external DC power supply.

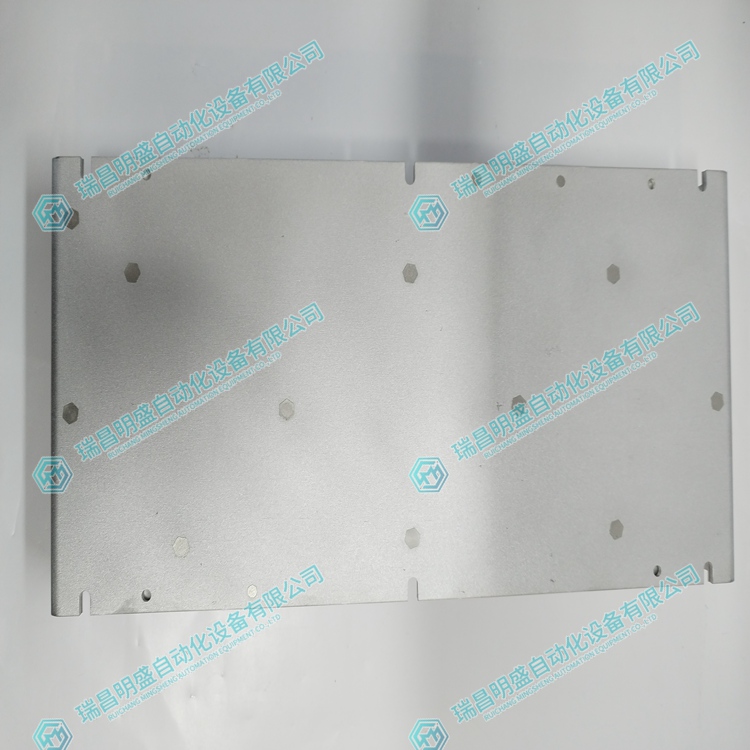

2.產 品 展 示
3.產 品 展 示
