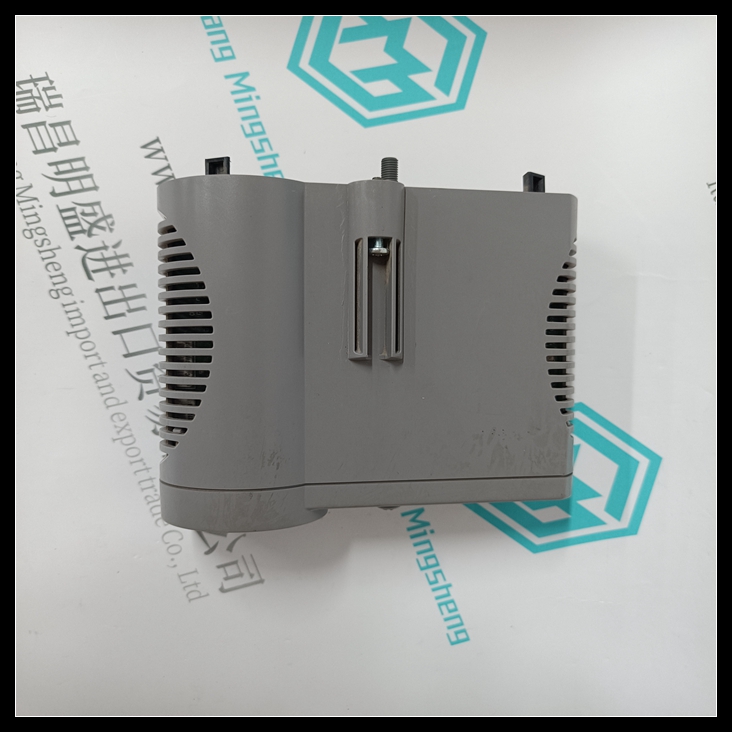

HONEYWELL CC-PAIM01溫度模塊,CC-PAIM01中文說明
電源
模塊從總線接口單元接收電源，用于自身操作。
需要外部120VAC電源為輸入設備供電。模塊輸入響應
電壓水平從0 VAC到132 VAC。HONEYWELL CC-PAIM01
發光二極管通過模塊頂部的透明部分可見的單個LED指示開/關
每個輸入的狀態。
存在背板電源時，PWR LED亮起。
主機接口
該模塊的智能處理由總線接口單元或
系統這包括配置輸入默認值和故障報告等功能。模塊
具有16位（兩個字節）的離散輸入數據。需要一個總線接口單元來提供此輸入
數據傳輸到主機和/或本地處理器。CC-PAIM01溫度模塊
Power Sources
The module receives power from the Bus Interface Unit for its own operation.
An external 120VAC supply is needed to power the input devices. Module inputs respond to
voltage levels from 0 VAC to 132 VAC.
LEDs
Individual LEDs, visible through the transparent portion of the module top, indicate the on/off
status of each input. The PWR LED is on when backplane power is present.
Host Interface
Intelligent processing for this module is performed by the Bus Interface Unit or elsewhere in the
system. This includes configuring features such as input defaults and fault reporting. The module
has 16 bits (two bytes) of discrete input data. A Bus Interface Unit is required to provide this input
data to the host and/or local processor.
