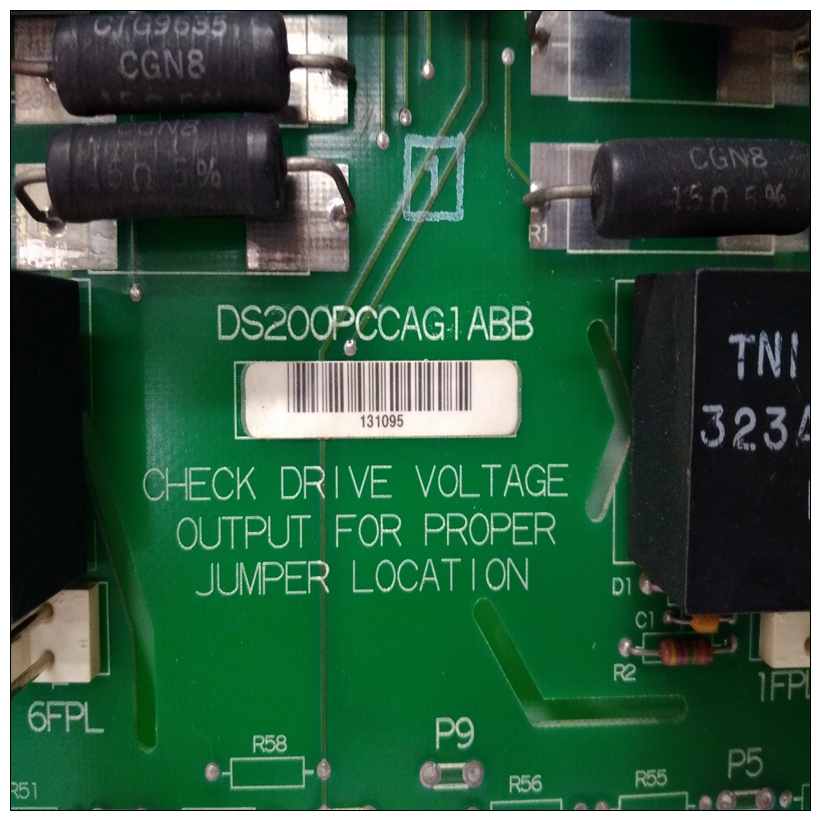

DS200PCCAG1ABB燃機模塊,DS200PCCAG1ABB產品重量
公路可尋址遠程變送器（HART）是一種行業標準
疊加了頻移鍵控（FSK）信號4-20 mA回路。特里康
2071H型HART多路復用器包含在以下各項中的模塊
HART接口模塊將HART信號與AI或AO信號。HART信號
1200時約為±0.5 mA
僅限Tricon v10.4。x及更高版本系統可使用HART接口模塊；
DS200PCCAG1ABB燃機模塊較早的Tricon系統必須升級到Tricon v10.4。x、 機箱要求使用HART接口
升級到的系統中的模塊Tricon v10.4。x根據
原始系統版本，如中所述HART Tricon機箱的使用通信表。
和2200 Hz。這些頻率為足夠高，低帶寬
回路不受影響，HART elec tronics可以施加和提取
HART信號容易發出。HART通信通過
HART多路復用器與Tricon系統，經認證干擾4-20 mA安全
模擬輸入和模擬信號輸出模塊。
Highway Addressable Remote Trans
ducer (HART) is an industry standard
field bus protocol that superimposes a
Frequency Key Shifted (FSK) signal
onto the 4-20 mA loop. The Tricon
Model 2071H HART Multiplexer
Module that is incorporated into each of
the HART Interface Modules capaci
tively couples the HART signal to the
AI or AO signals. The HART signals
are approximately ±0.5 mA at 1,200
Only Tricon v10.4.x and later systems
can use HART Interface Modules;
earlier Tricon systems must upgrade to
Tricon v10.4.x. The chassis require
ments for using HART Interface
Modules in a system upgraded to
Tricon v10.4.x differ depending on the
original system version, as described in
the Tricon Chassis Usage for HART
Communication table.
and 2,200 Hz. These frequencies are
high enough that the low-bandwidth
loop is unaffected and the HART elec
tronics can impose and extract the
HART signals easily.
HART communication through the
HART multiplexer is separate from the
Tricon system and is certified not to
interfere with the 4-20 mA safety
signals of the Analog Input and Analog
Output Modules.
