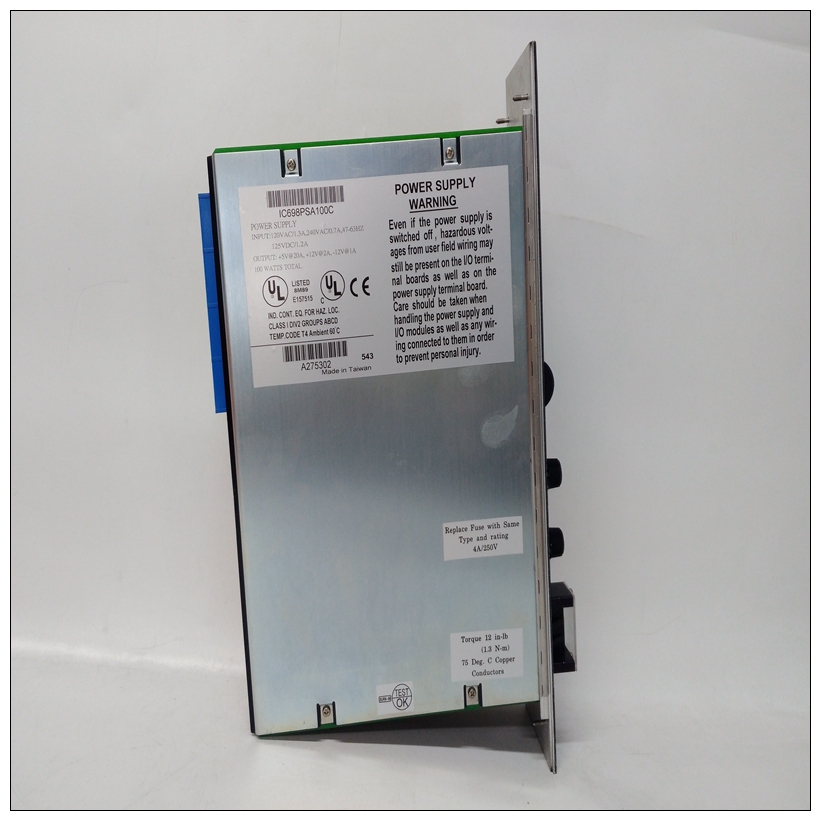

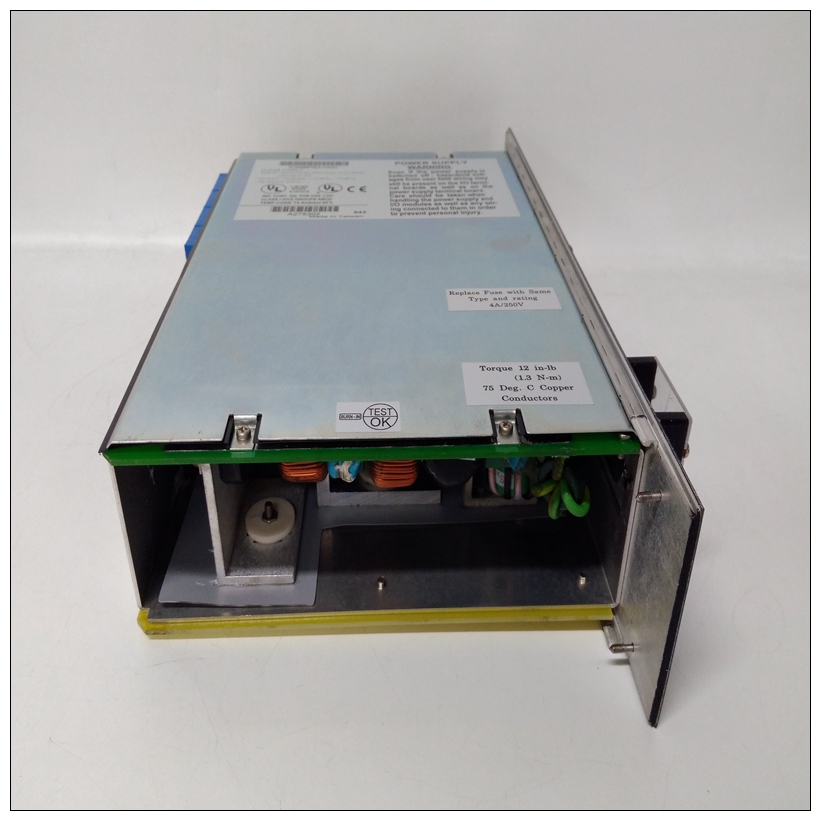

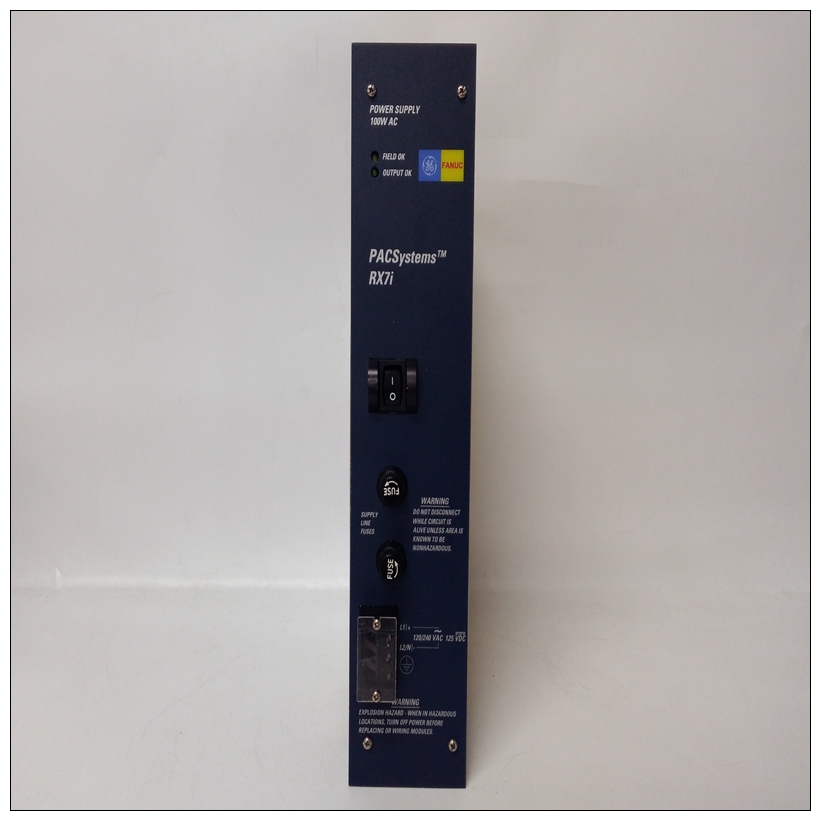

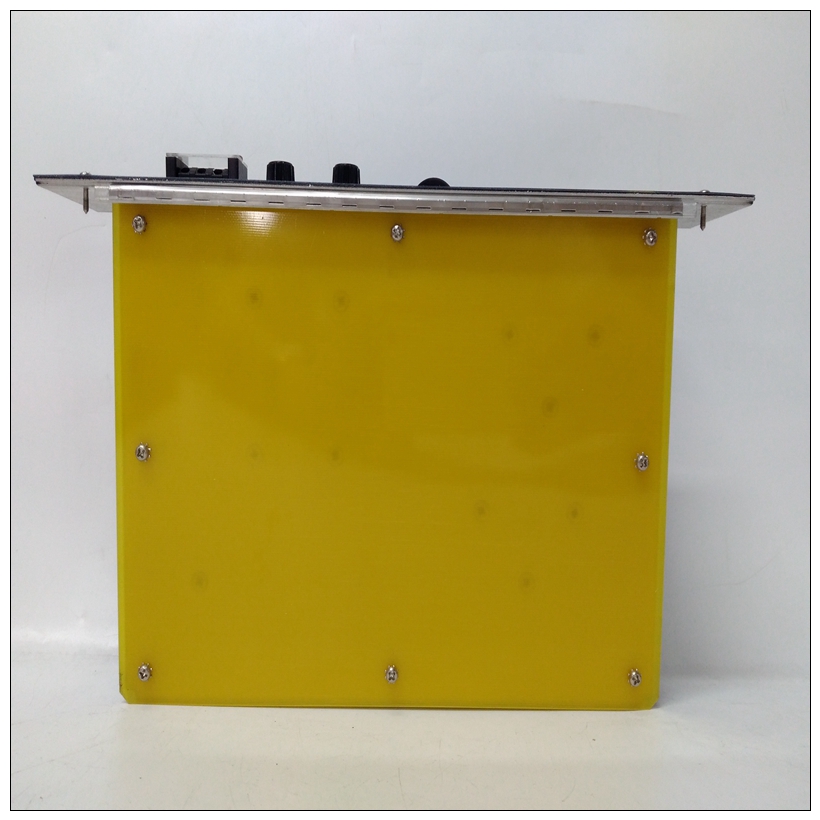

IC698PSA100燃機模塊,GE通用電氣
DPV1命令說明11.3.1概述背板CPU可以通過掃描儀向從機發送DPV1命令。為此，背板CPU向SST-PB3-CLX-RLL發出CIP通用消息。對象0x101，使用實例1。
要處理DPV1命令，應使用背板CPU初始化掃描儀DPV1\u INIT命令（必須處于脫機配置模式才能接受此命令）。當掃描儀聯機時，初始化后可以發送DPV1 Class 1命令。
IC698PSA100燃機模塊要設置DPV1 Class 2通信，背板CPU應發送啟動命令。掃描儀自動維護Class 2通信，直到出現網絡(luò )錯誤。
背板CPU應通過Abort命令關閉類通信。CPU可以如果需要，使用Initiate命令重新啟動Class2通信。
當不再需要DPV1通信時，背板CPU應停止DPV1模塊通過DPV1 Close命令。
以下數組假定對齊方式為1字節；確保梯形圖程序將參數設置為正確的偏移量。
DPV1 Command Description
11.3.1 Overview
The backplane CPU can send DPV1 commands to slaves through the scanner. To do this,
the backplane CPU issues CIP generic messages to the SST-PB3-CLX-RLL. Object 0x101,
Instance 1 is used.
To process a DPV1 command, the scanner should be initialized by the backplane CPU with
the DPV1_INIT Command (it must be in offline configured mode to accept this command).
DPV1 Class 1 commands can be sent after initialization when the scanner is online.
To set up a DPV1 Class 2 communication, the backplane CPU should send an Initiate command.
The scanner maintains Class 2 communication automatically, until a network error occurs.
The backplane CPU should close the class communication via an Abort command. The CPU can
restart the Class2 communication with an Initiate command if needed.
When DPV1 communication is no longer needed, the backplane CPU should stop the DPV1
module via a DPV1 Close command.
Note
The following arrays assume an alignment of 1 byte; make sure that the
ladder program's set parameters at the correct offsets.
