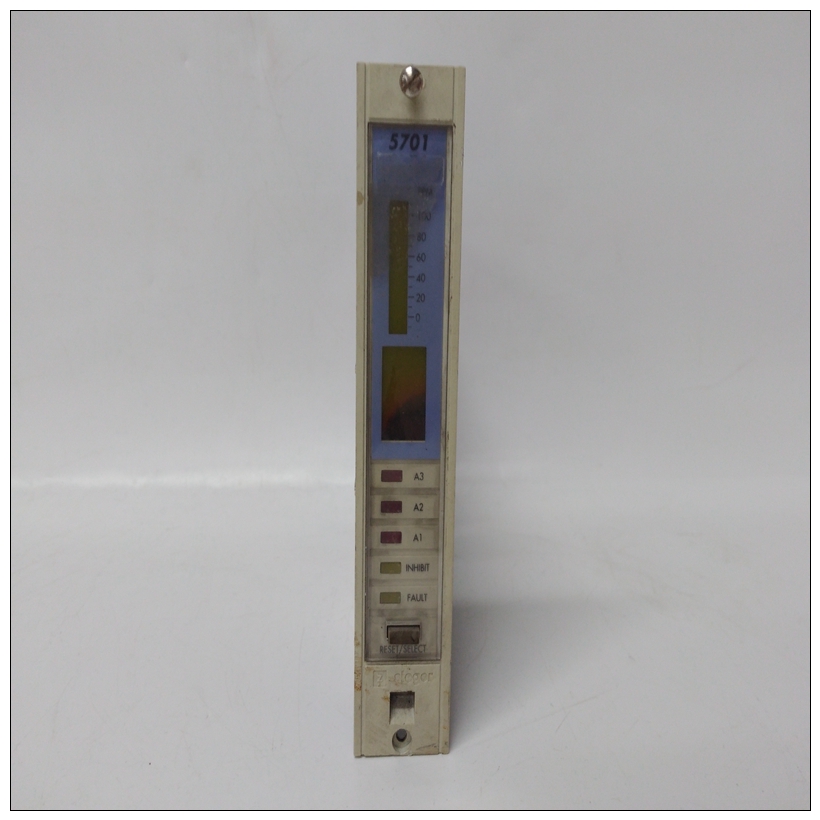

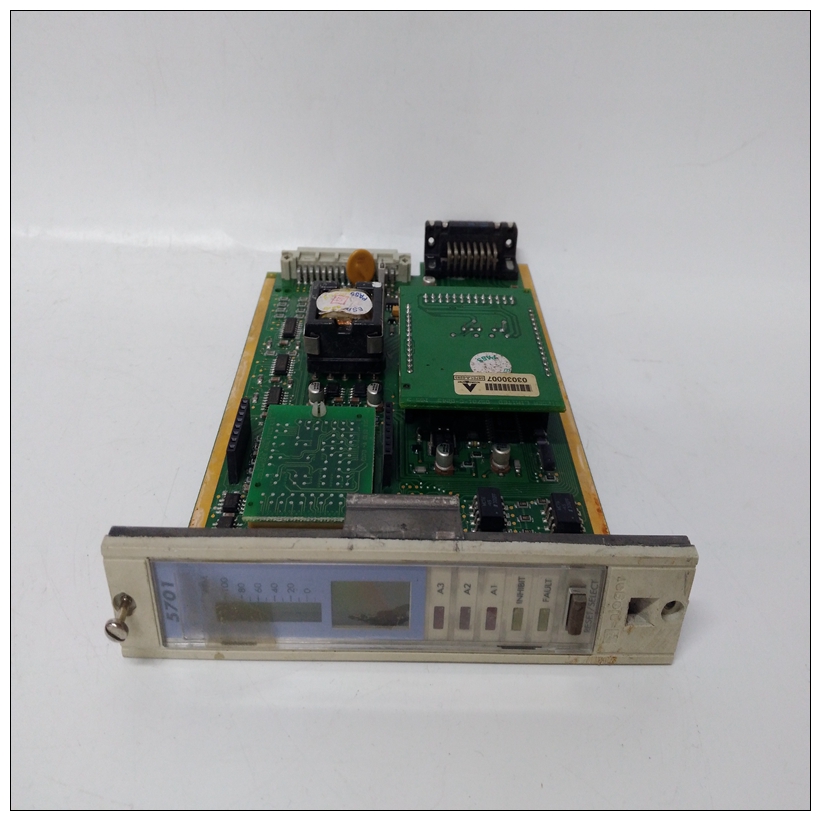

HONEYWELL 05701-A-0301控制卡件,05701-A-0301實驗數據
為了橋接更長距離并繞過EMC干擾，使用光纖傳輸還規定了導體（玻璃或塑料）。
標準總線插頭連接器可用于光纖導體傳輸。
這些連接器將RS 485信號轉換為光纖導體信號，反之亦然。（OLP=光纖鏈路插頭）。
此外，中繼器可用于處理此信號轉換。這為您提供了在中的兩種傳輸技術之間切換的選項如有必要，一個系統。
一個Profibus系統最多可連接126個站點。
HONEYWELL 05701-A-0301控制卡件為了能夠在公交車上處理這么多的參與者，必須對公交車系統進行劃分分為單獨的段，每個段最多包含32個站。
這些區段由中繼器連接。通過Profibus處理測量數據
兩個腹板張力測量值通過Profibus傳輸：
?值1與“電壓輸出”具有相同的階躍響應時間
?值2與“電流輸出”具有相同的階躍響應時間。
“電壓輸出”和“電流輸出”的縮放不影響測量值通過Profibus傳輸。
如果已執行零位設置，則零位設置值通過Profibus傳輸。
有關Profibus測量值的縮放，請參見第3.13.5.2節。
每個測量值都有16位2補碼表示（整數16）。
3.13.5.1其他菜單
使用此菜單縮放Profibus測量值
To bridge longer distances and bypass EMC interference, transmission with optical fiber
conductors (glass or plastic) is also specified.
Standard bus plug connectors are available for transmission with optical fiber conductors.
These connectors convert RS 485 signals to optical fiber conductor signals and vice versa.
(OLP = optical link plug).
In addition, repeaters are available to handle this signal conversion.
This gives you the option of switching between the two transmission techniques within
one system if necessary.
You can connect up to 126 stations to one Profibus system.
To be able to handle this number of participants on the bus, the bus system must be divided
into individual segments, containing maximum 32 stations each.
These segments are linked by repeaters.Handling of Measurement Data through Profibus
Two web tension measurement values are transferred through Profibus:
? Value 1 has the same step response time as "voltage output"
? Value 2 has the same step response time as "current output".
The scaling of "voltage output" and "current output" does not affect the measurement values
transferred through Profibus.
If zero set has been performed, the zero set values are transferred through Profibus.
For scaling of Profibus measurement values, see Section 3.13.5.2.
Each measurement value has 16 bit, 2-complement representation (Integer 16).
3.13.5.1 Miscellaneous Meny
Use this menu for scaling Profibus measuring values
