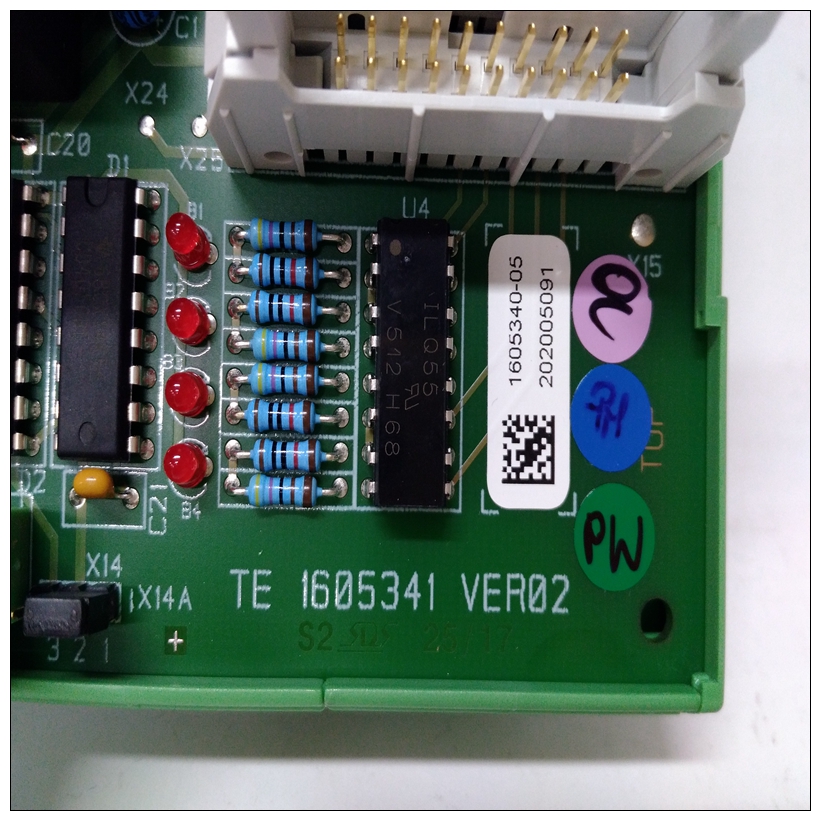

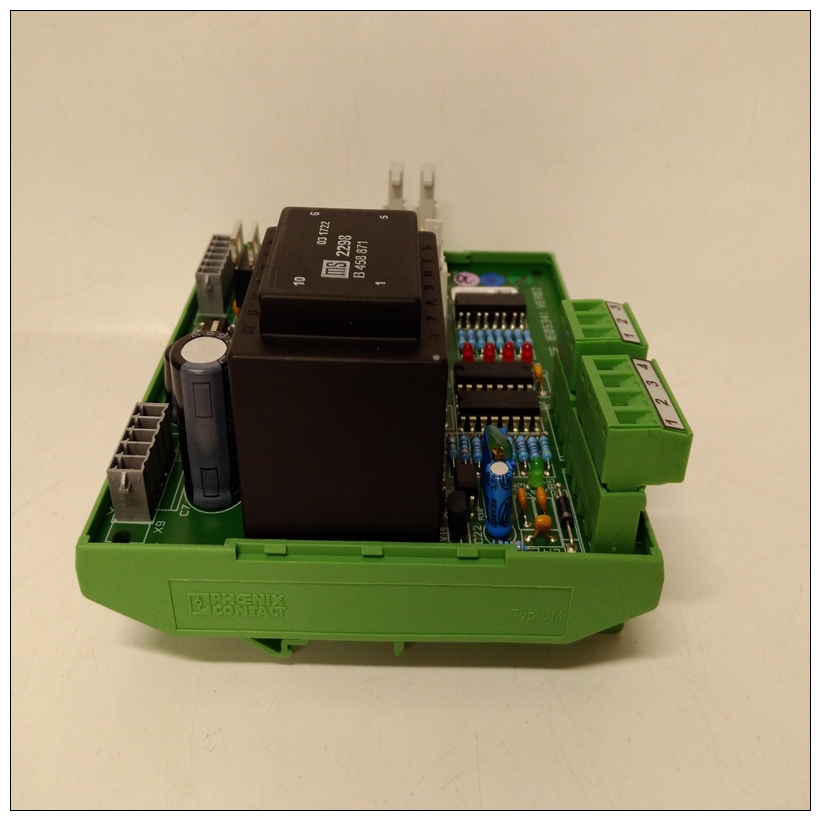

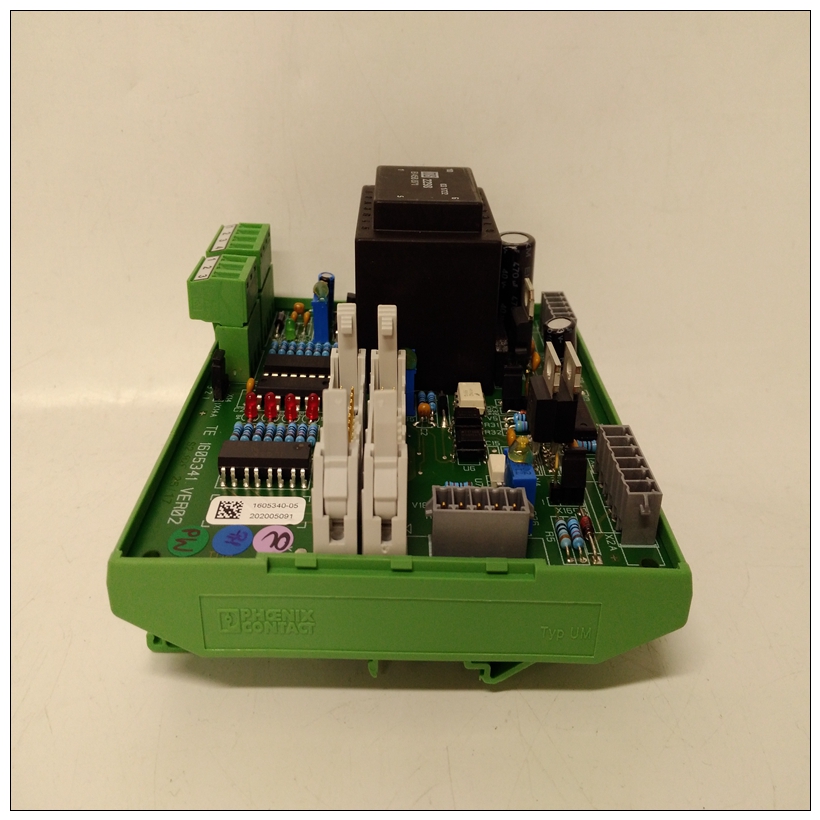

TRUMPF TE 1605341 VER02模塊,TE 1605341 VER02參數說明
如果一個稱重傳感器出現故障，則更改為單側測量
如果一個稱重傳感器出現故障，則可以從標準輥改為單側測量。
關于稱重傳感器連接，請參考附錄B、C、D、E、F或G中的電纜圖安裝中使用的稱重傳感器類型。
根據出現故障的稱重傳感器，執行以下操作：稱重傳感器A故障：將稱重傳感器A從張力電子裝置上斷開。
在X1:3和X1:4之間連接稱重傳感器勵磁電路的短路線。
稱重傳感器B故障：將稱重傳感器B從張力電子裝置上斷開。
TRUMPF TE 1605341 VER02模塊在X1:7和X1:8之間連接稱重傳感器勵磁電路的短路線。
更改稱重傳感器連接后，張力電子設備中的一個參數設置必須更改。
使用下面的菜單將StandardRoll更改為單側A或單側B。9更改稱重傳感器開始工作前，請閱讀第一章引言中的安全說明。
對于配有延長電纜和連接器的稱重傳感器：斷開稱重傳感器的連接電纜，并保護連接電纜污垢和損壞。
對于配有固定電纜的稱重傳感器：斷開張力電子設備或接線盒中的稱重傳感器連接并保護松動的電纜末端有污垢和損壞。
在松開和拆除舊稱重傳感器之前，對其進行清潔。
松開并拆除舊稱重傳感器。松開舊稱重傳感器上的轉接板并將其拆下。
清潔支撐結構、轉接板和其他安裝表面。
Changing to Single Side Measurement If One Load Cell Is Faulty
If one load cell is faulty it is possible to change from Standard Roll to Single Side Measurement.
For load cell connections, please refer to cable diagrams in Appendix B, C, D, E, F or G for the
load cell type used in the installation.
Depending on which load cell that is faulty, do the following:
Load cell A is faulty:
1. Disconnect load cell A from the Tension Electronics.
2. Connect a shorting wire for the load cell excitation circuit between X1:3 and X1:4.
Load cell B is faulty:
1. Disconnect load cell B from the Tension Electronics.
2. Connect a shorting wire for the load cell excitation circuit between X1:7 and X1:8.
After having changed the load cell connections, one parameter setting in the Tension Electronics
must be changed.
Use the menu below to change from StandardRoll to Single Side A or Single Side B.9 Changing Load Cells
1. Before starting work, read the safety instructions stated in Chapter 1 Introduction.
2. For load cells equipped with an extension cable and connector:
Disconnect the connection cable from the load cell and protect the connection cable from
dirt and damage.
For load cells equipped with a fixed cable:
Disconnect the load cell connection in the tension electronics or junction box and protect
the loose cable ends from dirt and damage.
3. Clean the old load cell before it is unfastened and removed.
4. Unfasten and remove the old load cell.
5. Unfasten and remove the adapter plates from the old load cell.
6. Clean the support structure, adapter plates and other mounting surfaces.
7. For mounting instructions for the new load cell, see:
