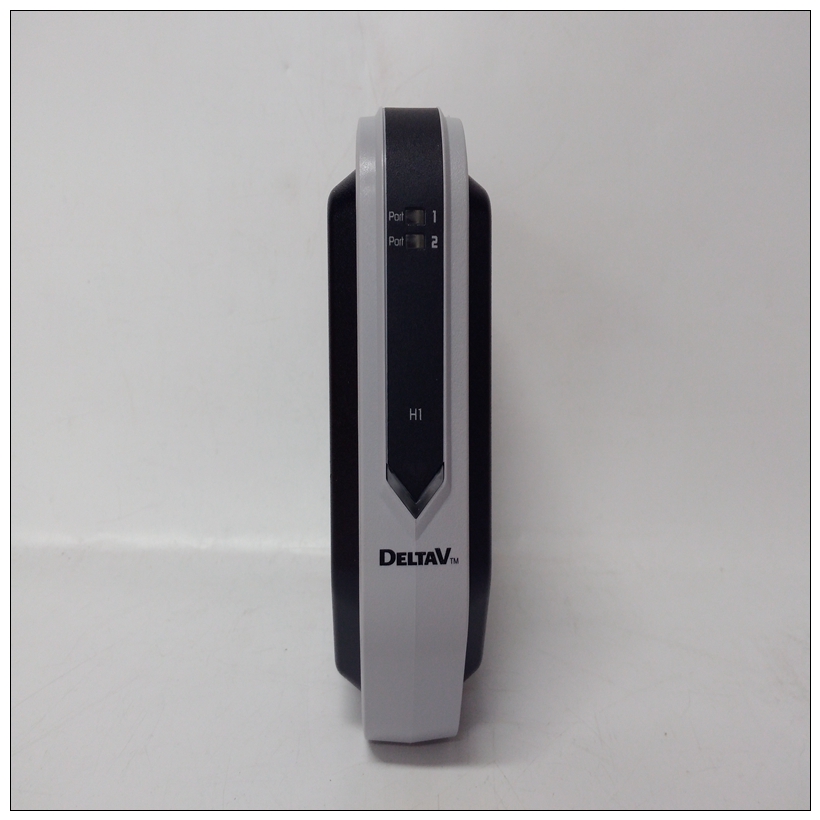

KJ3242X1-BK1卡件,EMERSON使用說明KJ3242X1-BK1
控制和輸入/輸出模塊之間的輸入/輸出擴展器總線并行通信總線。
LVDT線性可變差動變壓器。提供執行器位置的變壓器通過感應與堆芯位置成比例的差分電壓進行反饋（液壓當由勵磁電壓驅動時。
MFP多功能處理器模塊。具有數據采集和信息處理能力。
KJ3242X1-BK1卡件MMU模塊安裝單元。提供電氣和通信的卡固定框架支持INFI 90/Network 90?模塊。
模塊總線對等通信鏈路，用于在智能過程控制單元內的模塊。
OIS操作員接口站。集成操作員控制臺，具有數據采集和報告能力。它提供了對過程的數字訪問，以實現靈活的控制和監控。
終端模塊在工廠設備和INFI 90之間提供輸入/輸出連接/網絡(luò )90個模塊。
終端裝置在工廠設備和INFI 90之間提供輸入/輸出連接/網絡(luò )90個模塊。
TMU終端安裝單元。為INFI 90/Network 90提供外殼的卡固定框架終端模塊。
I/O Expander Bus Parallel communication bus between the control and I/O modules.
LVDT Linear variable differential transformer. A transformer that provides actuator position
feedback by inducing a differential voltage proportional to the core position (hydraulic
actuator position) when driven by an excitation voltage.
MFP Multi-function processor module. A multiple loop controller with data acquisition and
information processing capabilities.
MMU Module mounting unit. A card cage that provides electrical and communication
support for INFI 90/Network 90? modules.
Module Bus Peer-to-peer communication link used to transfer information between intelligent
modules within a process control unit.
OIS Operator interface station. Integrated operator console with data acquisition and
reporting capabilities. It provides a digital access into the process for flexible control
and monitoring.
Termination Module Provides input/output connection between plant equipment and the INFI 90/
Network 90 modules.
Termination Unit Provides input/output connection between plant equipment and the INFI 90/
Network 90 modules.
TMU Termination mounting unit. A card cage that provides housing for INFI 90/Network 90
termination modules.
