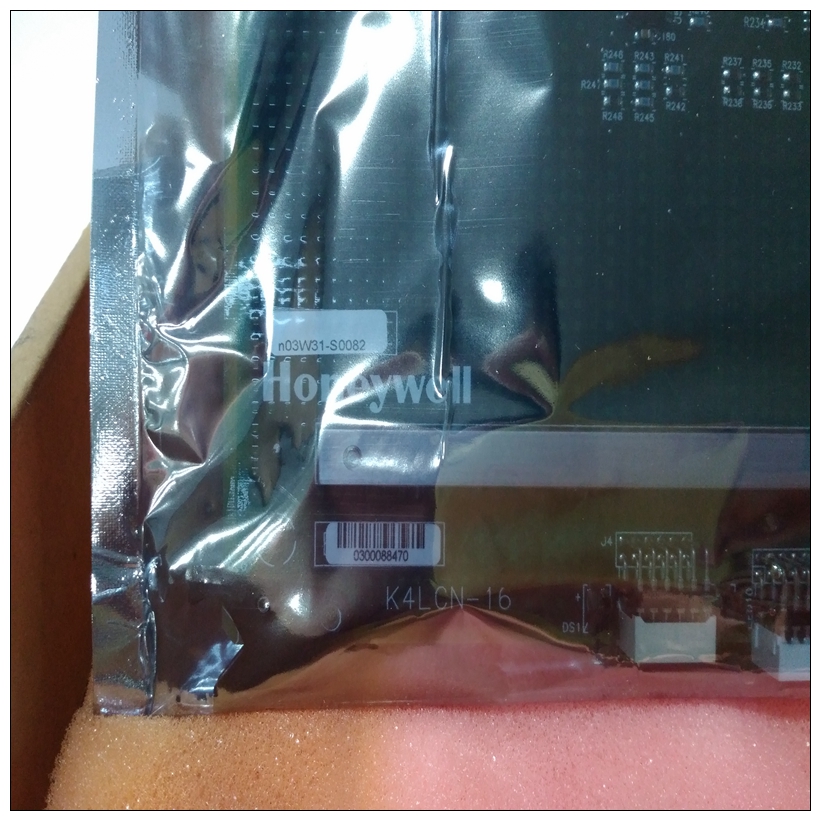

HONEYWELL K4LCN-16輸入特性卡件,K4LCN-16使用流程
如果智能輸入/輸出模塊（ALG240、ALG320、ALG620、ALG630、，MDL841）或網絡(luò )通信模塊Genius NIU站和GNIU被命令清除其配置中不包括上述模塊
后續自動配置，也不是任何位于該模塊右側。這不是存儲時的問題硬件配置；這只是清晰配置的一個問題活動如果您有這些模塊中的一個，并且需要使用此方法生成自動配置，
HONEYWELL K4LCN-16輸入特性卡件循環功率清除配置命令完成后的GNIU。操作說明/限制：增強診斷模式當用于GMR系統的安全相關部分時，GNIU的必須啟用增強診斷模式。選擇是否
通過硬件啟用或禁用增強診斷模式GNIU的配置選項。默認設置為禁用。什么時候
啟用增強診斷模式，滿足以下要求必須滿足。（注意：有關增強診斷的更多信息模式在Genius NIU用戶手冊中提供。）系統要求機架中唯一允許的模塊是電源，以及GNIU和多達四個ALG265/ALG266模塊（任何允許ALG265和ALG266模塊的組合）。2、所有模擬模塊必須位于主機架中。3、不允許使用擴展架。4、不允許使用空IO載波。配置要求
1.GNIU的報告故障參數必須設置為啟用。在里面此外，報告每個模擬模塊上的故障參數必須設置為啟用。2.GNIU的CPU冗余參數必須設置為GMR。3.GNIU的“BSM存在”和“BSM控制器”參數必須設置為否。4、對于除最后一個模塊外的每個模塊，一個模擬輸入通道變?yōu)闊o(wú)法使用。這些未使用的通道仍計入數字GNIU將發送到Genius總線的%AI通道控制器。
If an intelligent I/O module (ALG240, ALG320, ALG620, ALG630,
MDL841) or a Network Communications Module is present in the
Genius NIU station, and the GNIU is commanded to clear its
configuration, the before-mentioned module is not included in the
subsequent auto-configuration, nor are any modules that are
located to the right of that module. This is not an issue when storing
hardware configuration; It is only an issue for the clear configuration
operation. If you have one of these modules present, and need to
generate an auto-configuration using this method, cycle power of
the GNIU after the clear configuration command completes.Operating Notes/Restrictions: Enhanced
Diagnostics Mode
When used in the safety-relevant portion of a GMR system, the GNIU’s
Enhanced Diagnostics Mode must be enabled. Select whether to
enable or disable Enhanced Diagnostics Mode via a hardware
configuration option for the GNIU. The default is disabled. When
Enhanced Diagnostics Mode is enabled, the following requirements
must be met. (Note: More information about Enhanced Diagnostics
Mode is available in the Genius NIU User’s Manual.)
System Requirements
1. The only modules allowed in the rack are the Power Supply, the
GNIU, and up to four total ALG265 / ALG266 modules (any
combination of ALG265 and ALG266 modules is allowed).
2. All of the analog modules must be located in the main rack.
3. Expansion racks are not allowed.
4. Empty IO carriers are not allowed.
Configuration Requirements
1. The GNIU's Report Faults parameter must be set to Enabled. In
addition, the Report Faults parameter on every analog module
must be set to Enabled.
2. The GNIU’s CPU Redundancy parameter must be set to GMR.
3. The GNIU’s “BSM Present” and “BSM Controller” parameters must
be set to No.
4. For each module except the last, one analog input channel becomes
unusable. These unused channels still count towards the number
of %AI channels that the GNIU will send to the Genius Bus
Controller.
