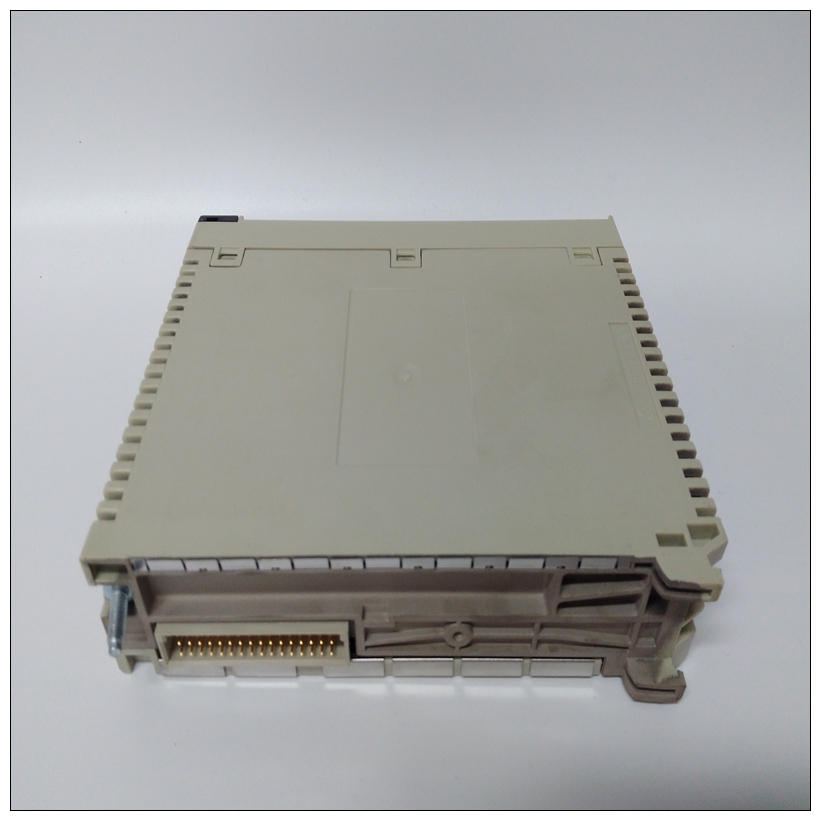

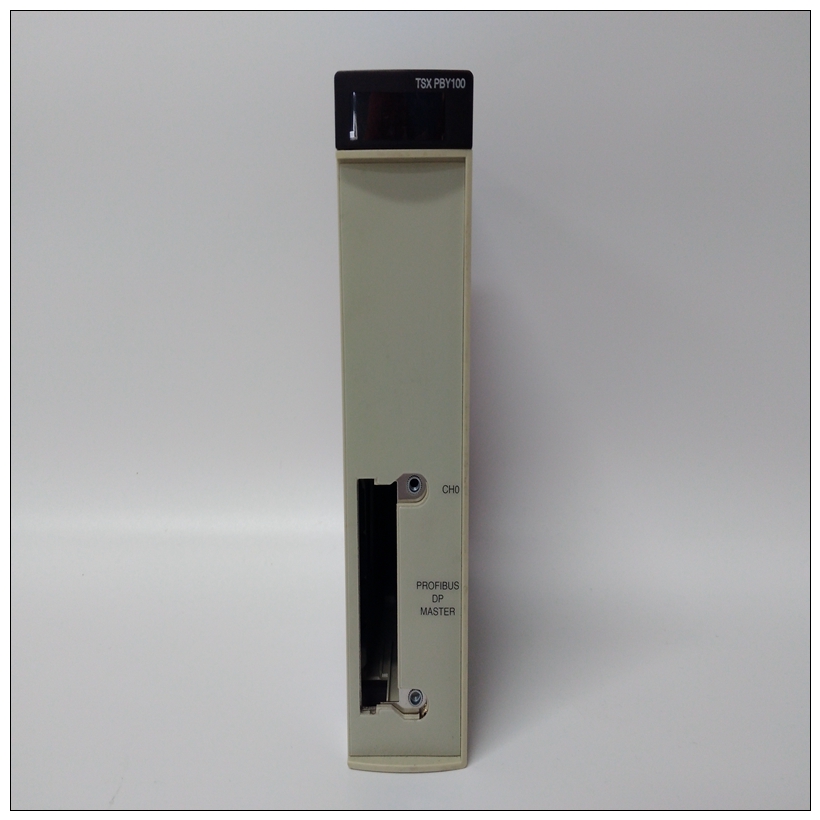

TSXPBY10模塊,TSXPBY10產品顏色
在總線配置中配置Genius NIU時Genius總線控制器，為%I、%Q、%AI指定的數據長度%AQ數據必須與NIU的硬件配置相匹配。如果總線控制器和NIU的輸入/輸出數據長度不匹配，NIU不會(huì )加入公交車，也不會(huì )報告系統由不匹配引起的配置不匹配故障。）正確的輸入/輸出數據長度可以通過檢查Genius NIU的硬件配置。程序此處描述的是機器版邏輯開發人員-PLC編程軟件。
a、 如果Genius NIU硬件配置可用：1） 打開包含Genius NIU目標和選擇NIU目標。
TSXPBY10模塊2） 在NIU目標下，右鍵單擊硬件配置并選擇“硬件參考視圖”。
3） 對于每個輸入/輸出數據選項卡（%I等），使用最大的地址在“結束”列中，作為該輸入/輸出數據的數據大小類型如果沒有數據類型的條目，則數據該類型的長度為零。
b、 如果Genius NIU硬件配置不可用：
1） 連接運行編程的Windows PC使用VersaMax NIU序列將軟件發送到Genius NIU電纜，IC200CBL002。
2） 為GE Fanuc PLC創(chuàng )建一個新項目。在新的項目，創(chuàng )造一個新的天才牛的目標。
3） 將硬件配置從Genius NIU上傳到目標。
4） 在NIU目標下，右鍵單擊硬件配置并選擇“硬件參考視圖”。
5） 對于每個輸入/輸出數據選項卡（%I等），使用“End”列作為該輸入/輸出數據類型的數據大小。如果數據類型沒有條目，數據長度為該類型為零。
9.如果GNIU試圖使用具有以下特征的配置聯機：輸入/輸出類型和長度與控制器，GNIU的系統配置不匹配故障將出現在控制器的PLC故障表中：該故障由控制器本身。GNIU中存在的其他故障不會(huì )直到糾正輸入/輸出類型和長度的不匹配。10、當主機控制器處于停止模式且GNIU處于配置為雙總線操作，對GNIU進行電源循環立即將總線從總線A切換到總線B。GNIU即使主機控制器進入運行模式。
When configuring a Genius NIU in the bus configuration for a
Genius Bus Controller, the data lengths specified for %I, %Q, %AI
and %AQ data must match the hardware configuration of the NIU.
If the I/O data lengths of the Bus Controller and NIU do not match,
the NIU will not join the bus and will not report the System
configuration mismatch fault caused by the mismatch.)
The correct I/O data lengths can be determined by examining the
hardware configuration for the Genius NIU. The procedure
described here is for Machine Edition Logic Developer – PLC
programming software.
a. If the Genius NIU hardware configuration is available:
1) Open the project that includes the Genius NIU target and
select the NIU target.
2) Under the NIU target, right-click on Hardware
Configuration and select “Hardware Reference View”.
3) For each I/O data tab (%I, etc.), use the largest address
in the “End” column as the data size for that I/O data
type. If there are no entries for a data type, the data
length for that type is zero.
b. If the Genius NIU hardware configuration is NOT available:
1) Connect the Windows PC running the programming
software to the Genius NIU using a VersaMax NIU serial
cable, IC200CBL002.
2) Create a new project for a GE Fanuc PLC. Within the
new project, create a new Genius NIU target.
3) Upload the hardware configuration from the Genius NIU to
the target.
4) Under the NIU target, right-click on Hardware
Configuration and select “Hardware Reference View”.
5) For each I/O data tab (%I, etc.), use the largest address in
the “End” column as the data size for that I/O data type. If
there are no entries for a data type, the data length for
that type is zero.
9. If the GNIU attempts to come online with a configuration that has
I/O types and lengths that do not match those expected by the
controller, a System Configuration Mismatch fault for the GNIU will
appear in the controller's PLC fault table: This fault is generated by
the controller itself. Additional faults present in the GNIU do not
appear until the mismatch in I/O types and lengths is corrected.
10. When the host controller is in STOP mode and the GNIU is
configured for dual bus operation, a power cycle to the GNIU
switches the bus from BUS A to BUS B immediately. The GNIU
does not switch back from BUS B to BUS A even if the host
controller goes to RUN mode.
