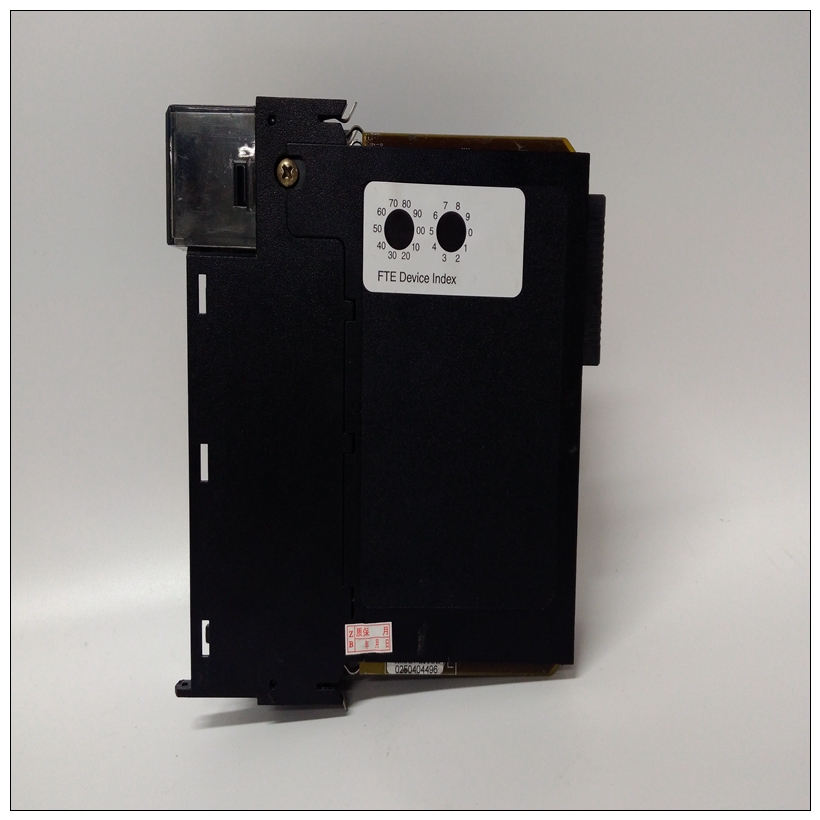

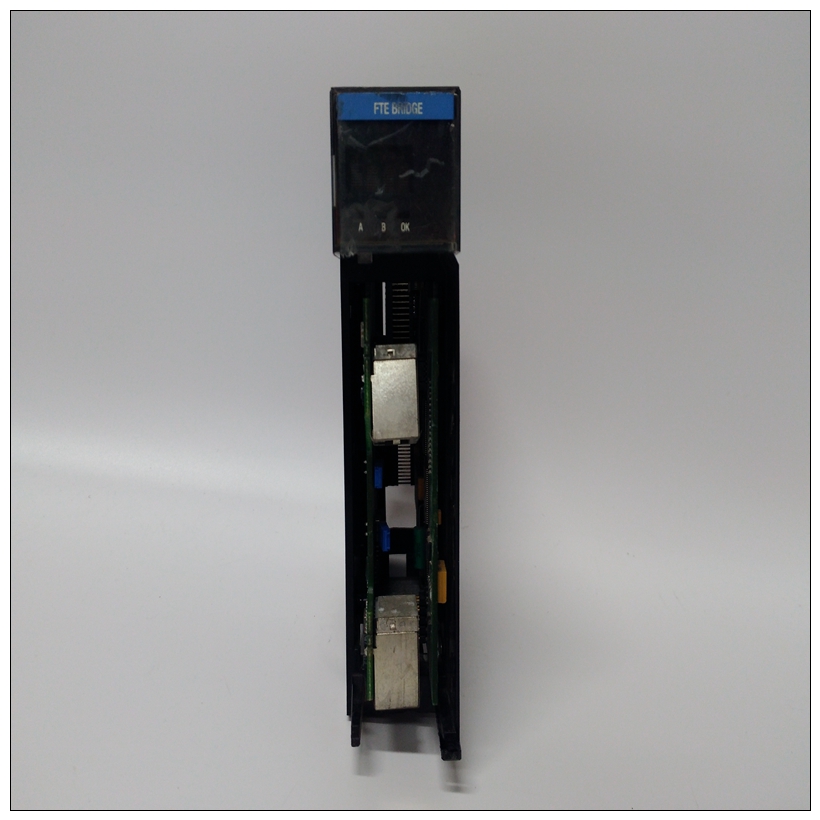

HONEYWELL TK-FTEB01電源模塊,TK-FTEB01配置手冊
關于輸入/輸出總線擴展電纜的重要說明1.I/O擴展系統中可包含的最大電纜數量為七，以及CPU基板和最后一個之間的總最大電纜長度膨脹基板為50英尺（15米）。之間的最大電纜總長度CPU基板和最后一個遠程基板為700英尺（213米）。未能觀察這些最大電纜長度可能會(huì )導致PLC運行不穩定系統2.CPU 350–364最多支持七條輸入/輸出擴展電纜。CPU 331–341最多支持四條輸入/輸出擴展電纜。3.50英尺（15米）輸入/輸出總線擴展電纜
HONEYWELL TK-FTEB01電源模塊（IC693CBL302），其具有外螺紋連接器的每一端都內置了輸入/輸出總線端接電阻器電纜上的連接器。如果使用此電纜，則不會(huì )安裝單獨的終塊小心不得連接或斷開輸入/輸出總線擴展電纜向輸入/輸出擴展基板供電。想不到的可能導致PLC運行。電纜應用建議一般來說，在可能的情況下，使用標準的工廠制造的電纜來節省時間，避免接線錯誤。使用標準電纜用于基板之間的連接（CPU和擴展基板之間，兩個擴展基板之間或兩個遠程基板之間）標準長度（0.5米、1米、2米、8米或15米）將滿足需要。作為定制點到點電纜的Y形跳線（通常使用IC693CBL300為此）。這種組合節省了時間，因為點對點電纜可以建造得很多比Y形電纜更快。圖10-23顯示了一個示例。使用定制電纜當您需要標準尺寸的電纜長度時。當電纜必須穿過不夠大的導管時
標準電纜的連接器，以適應通過。
Important Notes About I/O Bus Expansion Cables
1. The maximum number of cables that can be included in an I/O expansion system is
seven, and the total maximum cable length between the CPU baseplate and the last
expansion baseplate is 50 feet (15 meters). The total maximum cable length between
the CPU baseplate and the last remote baseplate is 700 feet (213 meters). Failure to
observe these maximum cable lengths could result in erratic operation of the PLC
system.
2. CPUs 350 – 364 support a maximum of seven I/O expansion cables. CPUs 331 – 341
support a maximum of four I/O expansion cables.
3. The 50 foot (15 meter) I/O bus expansion cable (IC693CBL302), which has a male
connector on each end, has the I/O bus terminating resistors built into the end
connector on the cable. If this cable is used, you would not install a separate terminator
block.
Caution
I/O Bus Expansion cables should NOT be connected or disconnected
with power applied to the I/O expansion baseplate(s). Unexpected
PLC operation may result.
Cable Application Suggestions
In general, it is advantageous to use standard, factory-built cables, where possible, to
save time and avoid wiring errors.
Using Standard Cables
For connecting between baseplates (either between a CPU and expansion baseplate,
between two expansion baseplates or between two remote baseplates) in the same
cabinet when a standard length (0.5, 1, 2, 8, or 15 meters) will fit the need.
As a Wye jumper for custom built point-to-point cables (IC693CBL300 is often used
for this). This combination saves time since a point-to-point cable can be built much
faster than a Wye cable. An example of this is shown in Figure 10-23.
Using Custom Built cables
When you need a cable length not available in a standard size.
When a cable must be routed through a conduit that is not large enough for a
standard cable’s connector to fit through.
