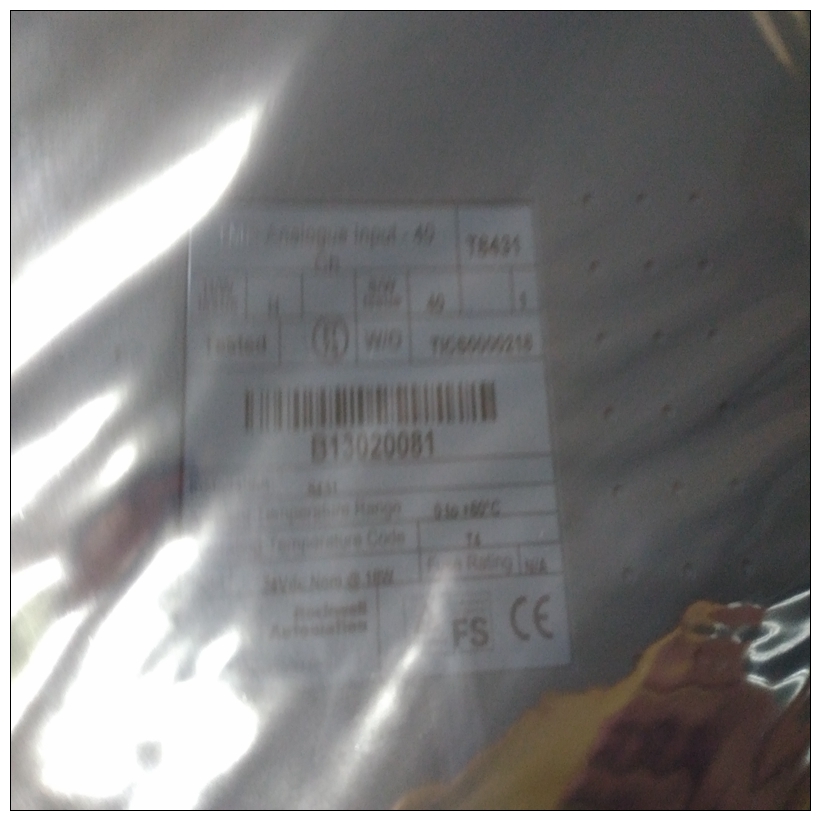

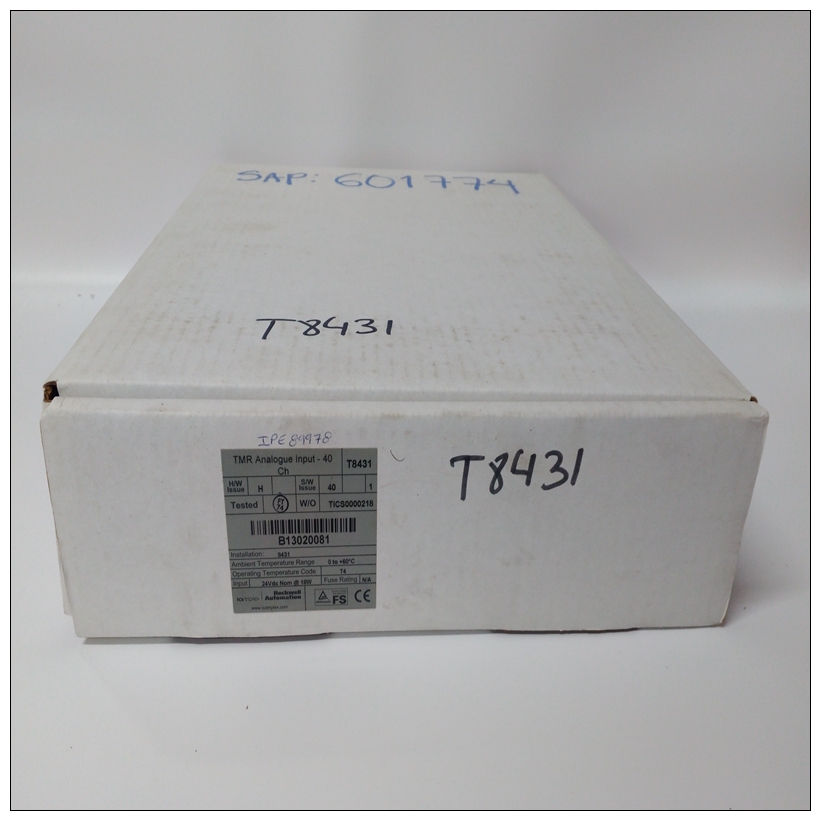

ICS TRIPLEX T8431處理器模塊,T8431產品重量
CPU366現場總線主機“模塊忙”COMMREQ狀態字響應不工作當兩個相同的COMMREQ同時發送時（即。未收到來自第一個COMMREQ的狀態字）上一個固件版本可能會(huì )錯誤地導致COMMREQ狀態完成（COMMREQ狀態字=1）。帶有PROFIBUS固件v1.02（及更高版本）模塊忙的狀態字（COMMREQ狀態當發送兩個相同的COMMREQ時，將返回文字=2）同時PROFIBUS主機無法發送DPV1奇數字節寫入數據尺寸DP-V1
ICS TRIPLEX T8431處理器模塊寫入請求COMMREQ的字14說明應be：要寫入的數據的長度x（以字或字節為單位）。最高位確定大小值是否解釋為字或字節。例如，值0x0005表示數據大小為五個字，0x8005表示數據大小為五個字節。PROFIBUS DP-V1通信：從未能響應原因重復錯誤狀態在以前的版本中，如果CPU366在等待響應時超時從從從機到DP-V1讀或寫請求COMMREQ，它報告DP-V1請求狀態為130十進制–“主機已停止DP-V1自動通信?！笔盏酱隋e誤后，后續DP-V1 COMMREQ可以報告DP-V1請求狀態129十進制–“主機即將停止DP-V1通信或DP-V1未處于打開狀態州?！币宄藸顟B(tài)，請下載新硬件配置到CPU366，或者關閉并重新打開CPU366。該問題在版本1.02中得到糾正
CPU366 PROFIBUS master
"Module Busy" COMMREQ
Status Word response does
not work
When two of the same COMMREQS are sent at the same time (i.e.
status word from 1st COMMREQ has not been received) previous
versions of firmware may erroneously result in a status of COMMREQ
COMPLETE (COMMREQ Status Word = 1). With PROFIBUS firmware
v1.02 (and later) a status word of MODULE BUSY (COMMREQ Status
Word=2) will be returned when two of the same COMMREQS are sent
at the same time.
PROFIBUS Master can't send
DPV1 Write data for odd byte
sizes
Description for Word 14 of the DP-V1 Write request COMMREQ should
be:
Length x of data to be written in words or bytes.
The uppermost bit determines whether the size value is interpreted as
words or bytes. For example, a value of 0x0005 indicates a data size of
five words while a value of 0x8005 indicates a data size of five bytes.
PROFIBUS DP-V1
Communications: Slave
Failure To Respond Causes
Repeated Error Status
In previous versions, if the CPU366 timed out waiting for a response
from a slave to a DP-V1 Read or Write request COMMREQ, it reported
a DP-V1 Request Status of 130 decimal – “Master has stopped DP-V1
communication automatically.” After receiving this error, subsequent
DP-V1 COMMREQs could report DP-V1 Request Status 129 decimal –
“Master is about to stop DP-V1 communication or DP-V1 is not in Open
