FOXBORO FBM217電壓監視器模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
FOXBORO FBM217 電壓監視器模塊是施耐德電氣（Schneider Electric）旗下 Foxboro 系列的一部分，專為過程控制系統設計，主要用于實時監測工業自動化系統中的電壓信號狀態。該模塊適用于需要高精度和高可靠性的環境，例如石油、天然氣、化工、發電和水處理等領域。
產品特點
多通道電壓監測
- 提供多個輸入通道，用于監測和采集電壓信號。
- 支持多種輸入電壓范圍，適應不同類型的設備和信號源。
高精度測量
- 提供精準的電壓監測，確保系統數據的可靠性。
- 高分辨率輸入，適合關鍵任務應用。
實時報警與診斷
- 實時檢測電壓異常（如欠壓、過壓），并發送報警信號。
- 提供診斷功能，支持快速故障排查。
模塊化設計
- 緊湊型模塊設計，易于在 Foxboro 控制系統中安裝和集成。
- 支持熱插拔功能，便于在線更換或維護而不影響系統運行。
工業級可靠性
- 適應嚴苛工業環境，具有出色的抗干擾能力。
- 支持長時間連續運行，確保系統穩定性。
技術參數
- 輸入通道數：支持多通道電壓信號輸入（通常為 8 或更多）。
- 輸入電壓范圍：典型范圍為 ±10V 或更廣（具體需參考技術手冊）。
- 測量精度：±0.1% 或更高，視具體型號而定。
- 響應時間：快速響應，適用于動態信號監測。
- 供電電壓：24V DC（標準模塊電源）。
- 環境條件：
- 工作溫度：-20°C 至 +70°C。
- 存儲溫度：-40°C 至 +85°C。
- 濕度范圍：5% 至 95%，無冷凝。
- 通訊協議：與 Foxboro 系統兼容，支持 FOUNDATION Fieldbus、Modbus 等通信標準。
英文資料：
The FOXBORO FBM217 voltage monitor module is part of the Foxboro series under Schneider Electric, designed specifically for process control systems and primarily used for real-time monitoring of voltage signal status in industrial automation systems. This module is suitable for environments that require high precision and reliability, such as petroleum, natural gas, chemical, power generation, and water treatment.
Product Features
Multi channel voltage monitoring
Provide multiple input channels for monitoring and collecting voltage signals.
Supports multiple input voltage ranges to adapt to different types of devices and signal sources.
High precision measurement
Provide precise voltage monitoring to ensure the reliability of system data.
High resolution input, suitable for critical task applications.
Real time alarm and diagnosis
Real time detection of voltage anomalies (such as undervoltage and overvoltage) and sending alarm signals.
Provide diagnostic functions and support quick troubleshooting.
Modular design
Compact module design, easy to install and integrate in Foxboro control system.
Support hot swappable function, easy to replace or maintain online without affecting system operation.
Industrial grade reliability
Adapt to harsh industrial environments and possess excellent anti-interference capabilities.
Support long-term continuous operation to ensure system stability.
technical parameter
Number of input channels: Supports multi-channel voltage signal input (usually 8 or more).
Input voltage range: The typical range is ± 10V or wider (please refer to the technical manual for details).
Measurement accuracy: ± 0.1% or higher, depending on the specific model.
Response time: Fast response, suitable for dynamic signal monitoring.
Power supply voltage: 24V DC (standard module power supply).
Environmental conditions:
Working temperature: -20 ° C to+70 ° C.
Storage temperature: -40 ° C to+85 ° C.
Humidity range: 5% to 95%, no condensation.
Communication protocol: Compatible with Foxboro system, supporting communication standards such as FOUNDATION Fieldbus and Modbus.

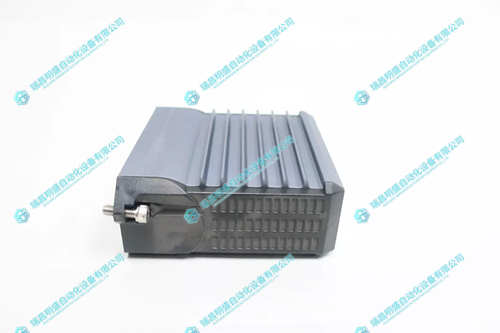

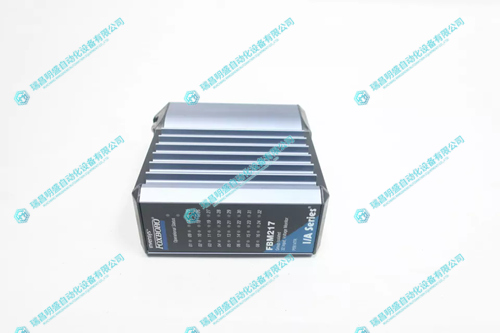

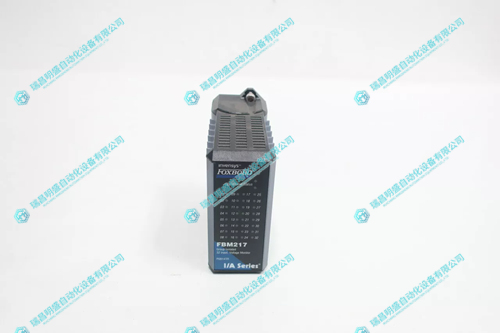

2.產 品 展 示
