BENTLY 3500/20 125768-01接口模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
Bently Nevada 3500/20 125768-01 接口模塊 是 Bently Nevada 3500 系列振動監測系統 的一部分，主要用于在系統內部實現不同監測模塊之間的連接和數據交換。它作為通信中樞，確保系統內各個模塊能夠有效地互相交流并進行數據傳輸。
主要特性：
- 型號：3500/20 125768-01
- 功能：提供與其他監測模塊的連接接口，允許各種輸入輸出設備（如傳感器、控制系統、執行器等）與主控制系統之間的數據交互。
- 輸入/輸出接口：支持多種信號接口，包括 數字輸入/輸出、模擬輸入/輸出，并具備一定數量的通訊接口，確保與外部設備的兼容性。
- 高數據吞吐能力：支持高速數據傳輸，確保監控系統能夠實時響應。
- 信號處理能力：具備一定的信號調理和轉換能力，以便適配不同類型的輸入信號。
應用領域：
- 工業設備監控：用于連接不同類型的傳感器模塊，采集設備的振動、溫度、壓力等數據，幫助進行實時狀態監控。
- 發電廠與石油天然氣行業：適用于關鍵設備的監控，如風機、泵、渦輪機等，確保設備運行的穩定性和安全性。
- 制造業：用于生產線的自動化控制系統，確保設備的實時監控和故障報警。
功能特點：
- 多種信號接口：支持 模擬與數字信號的輸入輸出，能夠適配各種工業傳感器和控制系統。
- 模塊化設計：與 Bently Nevada 3500 系列 的其他模塊兼容，簡化系統的安裝和擴展，便于根據需求進行擴展或升級。
- 數據轉換與傳輸：對傳感器信號進行調理和轉換，并通過 Modbus、Profibus、Ethernet 等協議與其他系統進行通信。
- 實時監控與報警功能：實現對系統狀態的實時監控，提供數據反饋，并支持觸發報警系統應對設備異常。
英文資料：
The Bently Nevada 3500/20 125768-01 interface module is a part of the Bently Nevada 3500 series vibration monitoring system, mainly used to connect and exchange data between different monitoring modules within the system. It serves as a communication hub, ensuring that various modules within the system can effectively communicate with each other and transmit data.
Main features:
Model: 3500/20 125768-01
Function: Provides a connection interface with other monitoring modules, allowing data exchange between various input/output devices (such as sensors, control systems, actuators, etc.) and the main control system.
Input/Output Interface: Supports multiple signal interfaces, including digital input/output, analog input/output, and has a certain number of communication interfaces to ensure compatibility with external devices.
High data throughput capability: Supports high-speed data transmission to ensure real-time response of the monitoring system.
Signal processing capability: Possess certain signal conditioning and conversion abilities to adapt to different types of input signals.
Application areas:
Industrial equipment monitoring: used to connect different types of sensor modules, collect data on equipment vibration, temperature, pressure, etc., to assist in real-time status monitoring.
Power plants and the oil and gas industry: suitable for monitoring critical equipment such as fans, pumps, turbines, etc., to ensure the stability and safety of equipment operation.
Manufacturing industry: Automated control systems used for production lines to ensure real-time monitoring and fault alarm of equipment.
Functional features:
Multiple signal interfaces: Supports input and output of analog and digital signals, and can adapt to various industrial sensors and control systems.
Modular design: Compatible with other modules in the Bently Nevada 3500 series, simplifying system installation and expansion, making it easy to expand or upgrade according to requirements.
Data conversion and transmission: Conditioning and converting sensor signals, and communicating with other systems through protocols such as Modbus, Profibus, Ethernet, etc.
Real time monitoring and alarm function: realizes real-time monitoring of system status, provides data feedback, and supports triggering alarm systems to respond to equipment abnormalities.

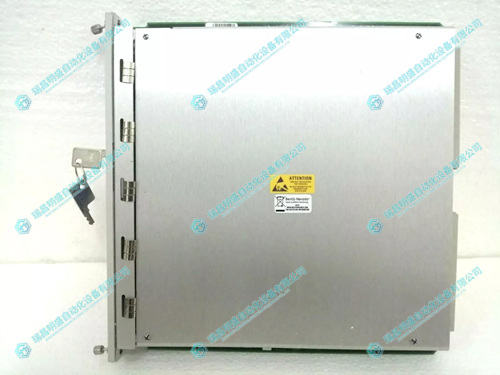

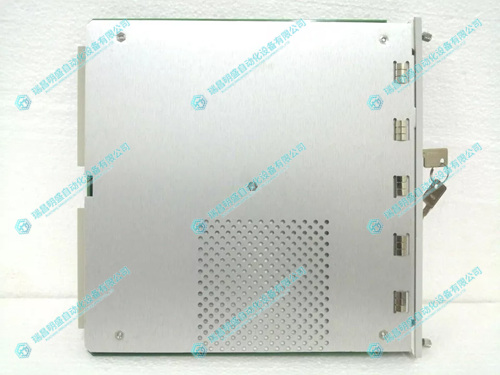

2.產 品 展 示
