GE 193X532ADG04現場控制板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X532ADG04 現場控制板簡介
GE 193X532ADG04 是美國通用電氣公司（General Electric）推出的 193X 系列控制系統中的現場控制模塊之一，主要用于早期 GE 工業驅動系統和過程自動化控制系統。該模塊多用于調節與反饋控制回路中，適用于直流/交流電機控制、發電勵磁、以及大型設備的自動運行控制。
技術規格與功能特點
控制類型：模擬信號處理控制板，具備一定邏輯控制能力
輸入信號：電壓輸入、模擬反饋信號、數字控制信號等
輸出信號：用于控制功率模塊、執行單元、驅動板的模擬信號或邏輯控制量
安裝方式：標準 GE 插卡式結構，插入主機架背板
電源要求：通常為 ±15V DC（通過系統統一供電）
板載元件：包含多個電位器、分立電路元件、運算放大器等
狀態反饋：部分版本可能配有狀態指示燈，用于運行狀態判斷或調試支持
可調參數：如增益（GAIN）、偏移（OFFSET）、響應時間等，通過電位器調節完成
應用領域
GE Mark 系列工業自動化系統（如 Mark I、II、IV 等）
直流電機勵磁控制與調速系統
工業爐控、冶金連鑄、軋制線驅動系統
發電廠勵磁裝置、變頻控制回路
老舊工業設備維護與改造項目中的替換件需求
使用與維護要點
安裝前必須斷電，避免插拔操作時造成電弧或損壞接口。
防靜電操作規范，接觸板卡應佩戴靜電環，避免靜電擊穿器件。
信號檢查：使用萬用表或示波器檢查輸入、輸出端電壓/波形是否正常。
定期維護：重點檢查電解電容是否鼓脹、接插件有無氧化、焊點有無裂紋。
參數調節：若需調整控制效果，建議在原設備說明書指導下微調板載電位器。
英文資料：
Introduction to GE 193X532ADG04 Field Control Board
GE 193X532ADG04 is one of the on-site control modules in the 193X series control system launched by General Electric, mainly used in early GE industrial drive systems and process automation control systems. This module is commonly used in regulating and feedback control circuits, suitable for DC/AC motor control, power generation excitation, and automatic operation control of large equipment.
Technical specifications and functional features
Control type: Analog signal processing control board with certain logical control capability
Input signals: voltage input, analog feedback signal, digital control signal, etc
Output signal: an analog signal or logic control quantity used to control power modules, execution units, and drive boards
Installation method: Standard GE plug-in card structure, inserted into the motherboard backplane
Power requirement: Typically ± 15V DC (supplied uniformly through the system)
Onboard components: including multiple potentiometers, discrete circuit components, operational amplifiers, etc
Status feedback: Some versions may be equipped with status indicator lights for running status judgment or debugging support
Adjustable parameters: such as gain (GAIN), offset (OFFSET), response time, etc., can be adjusted through potentiometers
application area
GE Mark series industrial automation systems (such as Mark I, II, IV, etc.)
DC motor excitation control and speed regulation system
Industrial furnace control, metallurgical continuous casting, rolling line drive system
Excitation device and frequency conversion control circuit of power plant
Replacement parts requirements in maintenance and renovation projects for old industrial equipment
Key points for use and maintenance
Before installation, the power must be turned off to avoid arcing or damage to the interface during plugging and unplugging operations.
Anti static operation standards require wearing an electrostatic ring when in contact with the board to avoid electrostatic breakdown of the device.
Signal inspection: Use a multimeter or oscilloscope to check if the input and output voltage/waveform are normal.
Regular maintenance: Focus on checking whether the electrolytic capacitor is swollen, whether the connectors are oxidized, and whether there are cracks in the solder joints.
Parameter adjustment: If you need to adjust the control effect, it is recommended to fine tune the onboard potentiometer under the guidance of the original equipment manual.

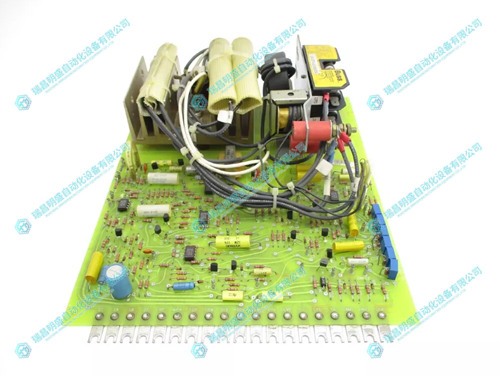

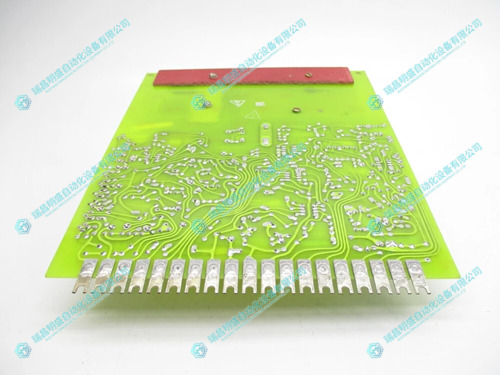

2.產 品 展 示
3.其他產品
GE ENERGY HYDRAN H201Ci-1 單通道控制器
4.其他英文產品
Asea 2668-184-280 12 slot control board
HAAS 93-32-3550J Intelligent Driver
ABB XXD129A01 Card Module Controller
