GE 193X543ABG02電動電路板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X543ABG02 是通用電氣公司（General Electric）193X 系列工業控制系統中的一款關鍵電路板，常被稱為“電動控制板”或“電動電路板”。該模塊廣泛應用于 GE 的直流或交流驅動系統中，用于執行電動設備的控制邏輯，包括電機驅動信號處理、反饋調節、系統保護等功能。
該電路板通常作為整個驅動系統的子功能板，配合主控制板、反饋板、勵磁板等一起運行，確保設備在工業現場的穩定運行。
技術參數與功能特點
型號：193X543ABG02
產品類型：電動控制電路板（Motor Control PCB）
系統適配：GE 193X 系列工業自動化系統
安裝方式：標準插卡式安裝，通過金手指接口連接控制框架
輸入信號：模擬信號（如電壓反饋、電流反饋）、數字邏輯命令、觸發控制信號
輸出信號：控制信號輸出到執行器、驅動器、繼電器等
板載元件：集成多個運算放大器、晶體管、調節電位器、電容電阻等分立元器件
調節功能：設有電位器用于調節控制增益、響應時間、補償參數等
工作電壓：通常為 ±15V DC，需由系統統一供電
工作溫度范圍：-20℃ 至 +70℃，適用于工業現場環境
狀態顯示：部分版本帶有 LED 狀態指示燈，便于調試與運行監控
應用場景
GE Mark 系列工業電機控制系統（如 Mark II、IV）
大型直流/交流電機驅動設備
冶金、石化、電廠、水處理、紙漿造紙等過程控制行業
用于執行電動機啟?？刂?、速度調節、狀態反饋處理等任務
在舊型 GE 控制系統中的電動子板更換或功能擴展中常被采用
英文資料：
GE 193X543ABG02 is a critical circuit board in General Electric's 193X series industrial control systems, often referred to as an "electric control board" or "electric circuit board". This module is widely used in GE's DC or AC drive systems to execute control logic for electric equipment, including motor drive signal processing, feedback regulation, system protection, and other functions.
This circuit board is usually used as a sub functional board of the entire drive system, working together with the main control board, feedback board, excitation board, etc., to ensure the stable operation of the equipment on the industrial site.
Technical parameters and functional characteristics
Model: 193X543ABG02
Product type: Motor Control PCB
System adaptation: GE 193X series industrial automation system
Installation method: Standard card insertion installation, connected to the control framework through a gold finger interface
Input signals: analog signals (such as voltage feedback, current feedback), digital logic commands, trigger control signals
Output signal: Control signal output to actuators, drivers, relays, etc
Onboard components: integrated with multiple operational amplifiers, transistors, adjustable potentiometers, capacitors, resistors, and other standing element devices
Adjustment function: Equipped with a potentiometer for adjusting control gain, response time, compensation parameters, etc
Working voltage: usually ± 15V DC, requiring unified power supply from the system
Working temperature range: -20 ℃ to+70 ℃, suitable for industrial site environment
Status display: Some versions come with LED status indicators for easy debugging and operation monitoring
Application scenarios
GE Mark series industrial motor control system (such as Mark II, IV)
Large DC/AC motor drive equipment
Process control industries such as metallurgy, petrochemicals, power plants, water treatment, pulp and paper manufacturing, etc
Used to perform tasks such as motor start stop control, speed regulation, and status feedback processing
It is often used in the replacement or expansion of electric daughter boards in old GE control systems

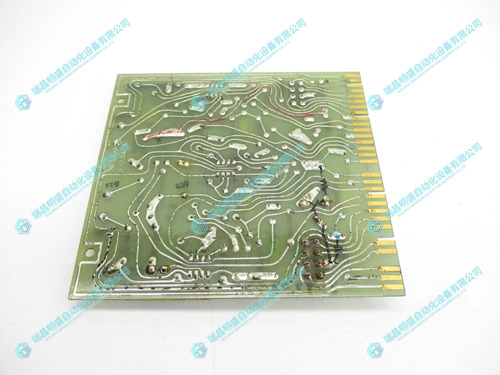

2.產 品 展 示
