GE 193X565ABG01 PC板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X565ABG01 是通用電氣（General Electric）193X 系列控制系統中的一塊信號處理與控制邏輯電路板（PC板）。該模塊用于GE自動化控制系統（如早期Mark系列或驅動控制系統）中，實現信號采集、邏輯判斷、中間繼電控制、狀態處理等關鍵功能。193X系列以其模塊化設計、標準化接口及工業級可靠性廣泛應用于電力、冶金、石化等自動化控制系統中。
技術參數與功能特點
產品型號：193X565ABG01
產品名稱：PC板 / Printed Circuit Board
功能類型：信號邏輯處理與控制輸出
主要功能：信號采集、數據傳輸、中間控制、繼電器邏輯切換等
接口形式：金手指式 PCB 插槽連接，適配 GE 193X 背板系統
電源需求：±15V DC / +24V DC（由系統供電）
板載元件：包括邏輯芯片、電阻、電容、晶體管、電位器、小型繼電器等
邏輯電平標準：TTL 或 CMOS（具體視板上芯片而定）
板載功能模塊：可能包括電壓檢測、比較器、驅動器、緩沖器等
工作溫度范圍：-20°C ~ +70°C
外形尺寸：標準 GE 193X 系列尺寸，便于模塊化更換
安裝方式：水平插入式安裝，固定于系統背板中
功能作用
作為主控制系統與執行模塊之間的信號中轉與處理單元
實現邏輯判斷、命令轉換、狀態保持等功能
接收系統指令信號并生成繼電器或控制電平信號輸出
對輸入信號進行濾波、整形、放大、隔離等預處理
與193X系列其他模塊配合完成整套自動控制邏輯鏈
英文資料：
GE 193X565ABG01 is a signal processing and control logic circuit board (PC board) in the General Electric 193X series control system. This module is used in GE automation control systems (such as early Mark series or drive control systems) to achieve key functions such as signal acquisition, logic judgment, intermediate relay control, and status processing. The 193X series is widely used in automation control systems such as power, metallurgy, and petrochemicals due to its modular design, standardized interfaces, and industrial grade reliability.
Technical parameters and functional characteristics
Product model: 193X565ABG01
Product Name: PC Board/Printed Circuit Board
Function type: Signal logic processing and control output
Main functions: signal acquisition, data transmission, intermediate control, relay logic switching, etc
Interface form: Gold finger PCB slot connection, compatible with GE 193X backplane system
Power requirement: ± 15V DC/+24V DC (powered by the system)
Onboard components: including logic chips, resistors, capacitors, transistors, potentiometers, small relays, etc
Logic level standard: TTL or CMOS (depending on the chip on the board)
Onboard functional modules: may include voltage detection, comparator, driver, buffer, etc
Working temperature range: -20 ° C~+70 ° C
Dimensions: Standard GE 193X series dimensions for easy modular replacement
Installation method: Horizontal plug-in installation, fixed in the system backplane
function
As a signal relay and processing unit between the main control system and the execution module
Implement functions such as logical judgment, command conversion, and state maintenance
Receive system command signals and generate relay or control level signals for output
Preprocess the input signal by filtering, shaping, amplifying, isolating, etc
Collaborate with other modules in the 193X series to complete the entire automatic control logic chain

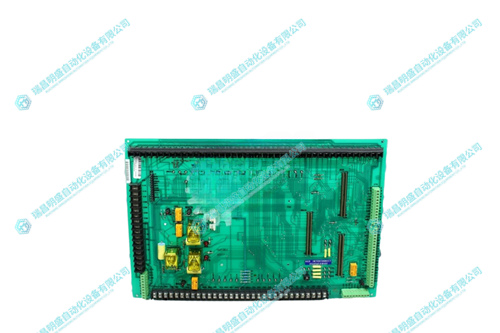

2.產 品 展 示
