GE 193X643AGG112狀態板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
GE 193X643AGG112 是通用電氣（General Electric）193X 系列中的一款狀態板（Status Board），它作為工業自動化控制系統的關鍵組成部分，用于實時監控和顯示系統狀態，提供系統運行的反饋信息。該狀態板通過其精確的數據采集和高效的信號處理功能，能夠確保系統運行狀態的實時顯示與故障報警，幫助工程師更好地管理和維護控制系統。
基本參數
產品型號：193X643AGG112
產品名稱：狀態板（Status Board）
系列：GE 193X 系列控制模塊
制造商：General Electric (GE)
電源要求：+5V DC / ±15V DC（通過系統電源模塊提供）
接口類型：標準金手指接口，插槽式安裝
工作溫度范圍：-20°C ～ +70°C
外形規格：符合標準 193X 系列尺寸，適用于工業自動化控制系統機柜
功能特點
實時狀態監控：提供系統實時運行狀態的顯示，包括正常運行、故障報警、溫度異常等關鍵信息；
故障診斷功能：內置故障檢測和報警系統，能夠實時反饋系統故障位置和狀態，幫助快速定位問題；
多通道信號采集：支持多種輸入信號類型的采集和處理，包括模擬信號、數字信號等，適應不同的控制需求；
高效數據傳輸：通過高效的信號處理單元，將采集到的數據及時傳輸至中央控制系統，確保數據流暢與無誤；
可視化顯示：通過 LED 燈、顯示屏等方式，直觀地呈現系統的當前狀態，便于維護人員快速查看；
兼容性強：與 GE 其他控制模塊及設備兼容，能夠靈活集成到不同的工業自動化系統中。
英文資料：
GE 193X643AGG112 is a Status Board in the General Electric 193X series, which serves as a key component of industrial automation control systems for real-time monitoring and display of system status, providing feedback information on system operation. This status board ensures real-time display and fault alarm of system operation status through its precise data acquisition and efficient signal processing functions, helping engineers better manage and maintain control systems.
Basic parameters
Product model: 193X643AGG112
Product Name: Status Board
Series: GE 193X series control module
Manufacturer: General Electric (GE)
Power requirements:+5V DC/± 15V DC (provided through the system power module)
Interface type: Standard gold finger interface, slot type installation
Working temperature range: -20 ° C to+70 ° C
Exterior specifications: Compliant with standard 193X series dimensions, suitable for industrial automation control system cabinets
Functional Features
Real time status monitoring: providing real-time display of the system's operating status, including key information such as normal operation, fault alarms, and temperature anomalies;
Fault diagnosis function: Built in fault detection and alarm system, which can provide real-time feedback on the location and status of system faults, helping to quickly locate problems;
Multi channel signal acquisition: supports the acquisition and processing of multiple input signal types, including analog signals, digital signals, etc., to meet different control requirements;
Efficient data transmission: Through efficient signal processing units, the collected data is promptly transmitted to the central control system to ensure smooth and error free data flow;
Visual display: By using LED lights, display screens, and other methods, the current status of the system is visually presented, making it easy for maintenance personnel to quickly view;
Strong compatibility: Compatible with other GE control modules and equipment, able to flexibly integrate into different industrial automation systems.

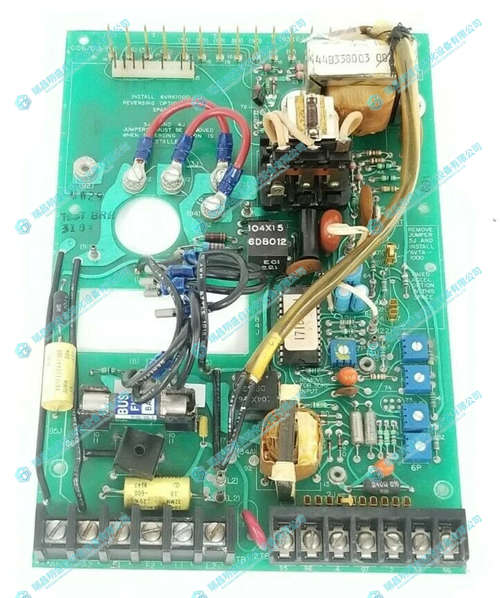

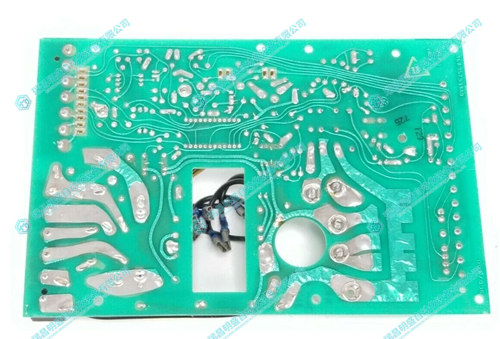

2.產 品 展 示
