ABB P72140-4-0788740 CTI21-P輸入輸出模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
P72140-4-0788740 CTI21-P 輸入輸出模塊 是一款廣泛應用于自動化控制系統中的 I/O 模塊，特別適用于過程控制、機械自動化及生產線監控等應用領域。
一、基本信息
產品編號：P72140-4-0788740
型號：CTI21-P
類型：輸入輸出模塊（I/O Module）
輸入/輸出類型：數字輸入和輸出
適用控制系統：適配于特定的自動化控制平臺
工作電壓：通常為 24V DC（視配置不同而有差異）
安裝方式：DIN 導軌安裝，模塊化設計
通訊協議：可能支持多種標準通訊協議，具體取決于系統要求
二、功能特點
輸入輸出功能：支持數字信號輸入和輸出，廣泛用于設備狀態檢測與控制
高可靠性：抗干擾設計，適用于工業自動化環境
模塊化設計：易于擴展與替換，節省安裝空間
狀態指示燈：每個通道有獨立的LED指示，便于維護人員實時監控工作狀態
隔離設計：輸入和輸出之間通常具備電氣隔離功能，防止外部電氣干擾
三、技術參數
輸入類型：數字信號輸入，通常為干接點或開關信號
輸出類型：數字信號輸出，通常為繼電器或晶體管輸出
額定電壓：24V DC（常見規格，但具體參數根據實際配置有所不同）
輸出通道數：可選16路、32路等配置
環境適應性：可在-20°C至+60°C的溫度范圍內穩定工作
通訊接口：支持與上位控制系統的通訊，具體協議依控制平臺而定（如Modbus、Profibus等）
英文資料：
P72140-4-0788740 CTI21-P input/output module is an I/O module widely used in automation control systems, particularly suitable for application fields such as process control, mechanical automation, and production line monitoring.
1、 Basic Information
Product Code: P72140-4-0788740
Model: CTI21-P
Type: Input/Output Module
Input/Output Types: Digital Input and Output
Applicable control system: Suitable for specific automation control platforms
Working voltage: usually 24V DC (varies depending on configuration)
Installation method: DIN rail installation, modular design
Communication protocol: may support multiple standard communication protocols, depending on system requirements
2、 Functional Features
Input/output function: supports digital signal input and output, widely used for device status detection and control
High reliability: anti-interference design, suitable for industrial automation environments
Modular design: easy to expand and replace, saving installation space
Status indicator light: Each channel has an independent LED indicator, which facilitates maintenance personnel to monitor the work status in real time
Isolation design: There is usually electrical isolation between input and output to prevent external electrical interference
3、 Technical parameters
Input type: Digital signal input, usually dry contact or switch signal
Output type: Digital signal output, usually relay or transistor output
Rated voltage: 24V DC (common specifications, but specific parameters may vary depending on actual configuration)
Number of output channels: optional configurations such as 16 or 32 channels
Environmental adaptability: capable of stable operation within a temperature range of -20 ° C to+60 ° C
Communication interface: Supports communication with the upper control system, with specific protocols depending on the control platform (such as Modbus, Profibus, etc.)

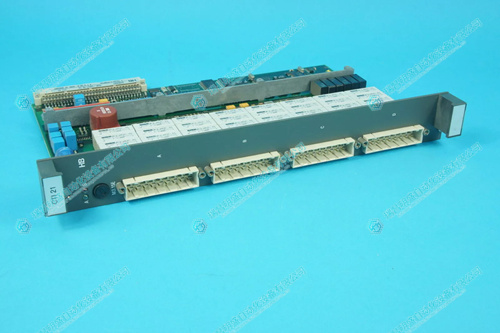

2.產 品 展 示
