GE IC695CPE400-ABAB 以太網端口模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
IC695CPE400-ABAB 是 GE（General Electric，現屬 Emerson）生產的 PACSystems RX3i 系列 控制系統中的一款 高性能中央處理單元（CPU）模塊，它集成了 以太網端口，用于與上位機、遠程 I/O 或其他控制器進行通信。
盡管用戶提到的是“以太網端口模塊”，實際上 IC695CPE400-ABAB 是一款內置以太網功能的高級CPU模塊，具有網絡(luò )通信與邏輯控制雙重功能。
一、基本信息
品牌：GE (General Electric) / Emerson
系列：PACSystems RX3i
型號：IC695CPE400-ABAB
產品類型：高級控制處理器（CPU）模塊，帶以太網接口
功能定位：邏輯控制 + 以太網通信
二、主要功能
內置以太網端口
支持多種協議：Modbus TCP/IP、SRTP、Ethernet Global Data（EGD）、OPC-UA 等
可用于遠程 I/O 通信、HMI/SCADA 數據傳輸、控制器間同步等
強大處理能力
雙核 CPU，支持高速邏輯運算
適用于大規模應用和復雜控制流程
兼容性良好
兼容 RX3i 系列所有 I/O 模塊、通信模塊
可作為標準或冗余控制系統的主控單元
支持 PAC Machine Edition 軟件編程
支持 Relay Ladder Diagram (RLD)、Structured Text、Function Block 等編程語言
數據存儲能力
大容量?jì)却?，支持用?hù)邏輯與數據的本地存儲
支持外部 SD 卡擴展
英文資料：
IC695CPE400-ABAB is a high-performance central processing unit (CPU) module in the PACSystems RX3i series control system produced by GE (General Electric, now Emerson). It integrates Ethernet ports for communication with a host computer, remote I/O, or other controllers.
Although the user mentioned the "Ethernet port module", in fact, IC695CPE400-ABAB is an advanced CPU module with built-in Ethernet functionality, which has dual functions of network communication and logic control.
1、 Basic Information
Brand: GE (General Electric)/Emerson
Series: PACSystems RX3i
Model: IC695CPE400-ABAB
Product type: Advanced Control Processor (CPU) module with Ethernet interface
Functional positioning: Logic control+Ethernet communication
2、 Main functions
Built in Ethernet port
Supports multiple protocols: Modbus TCP/IP, SRTP, Ethernet Global Data (EGD), OPC-UA, etc
Can be used for remote I/O communication, HMI/SCADA data transmission, inter controller synchronization, etc
Powerful processing capability
Dual core CPU, supporting high-speed logical operations
Suitable for large-scale applications and complex control processes
Good compatibility
Compatible with all I/O modules and communication modules in the RX3i series
Can serve as the main control unit for standard or redundant control systems
Support PAC Machine Edition software programming
Support programming languages such as Relay Ladder Diagram (RLD), Structured Text, Function Block, etc
Data storage capability
Large capacity memory, supporting local storage of user logic and data
Support external SD card expansion

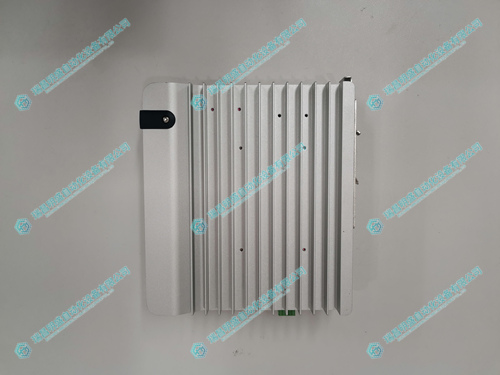

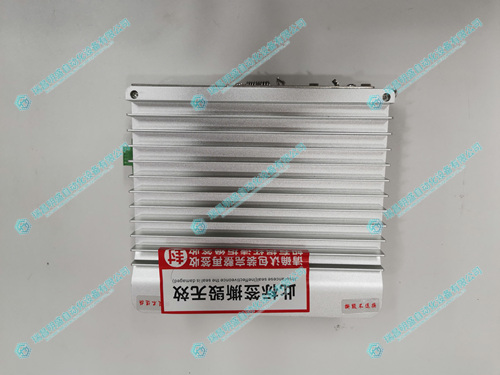

2.產 品 展 示
