ABB 3BHE014070R0101 驅動控制板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ABB 3BHE014070R0101 驅動控制板是 ABB 變頻器系統中的一個關鍵組件，專門用于控制和調節驅動系統的各種參數。它通常被用于 ABB 的高壓或中壓驅動系統，負責對電機的控制、信號處理和保護。此控制板具備實時監控電機和變頻器的運行狀態，以及執行電流、電壓、頻率等控制指令的功能。
主要功能
電機控制：精確控制電機的啟動、停機、轉速調節等。
逆變器調制：驅動逆變器模塊，通過 PWM（脈寬調制）控制信號實現高效電能轉換。
故障診斷：具有自診斷功能，能夠實時監測電壓、電流、溫度等關鍵參數并觸發警報。
系統保護：提供電流過載、過溫、短路等保護功能。
通訊接口：支持與 ABB 控制系統或其他外部設備的通訊，包括 RS-485 或專用總線接口。
信號采樣和處理：實時采集電壓、電流等信號并進行處理，確保系統的精準控制。
應用領域
工業自動化：用于各種工業自動化設備和驅動控制系統。
電力和能源：適用于風機、水泵、壓縮機等高壓電機驅動控制系統。
石化與冶金：在高壓驅動控制中應用廣泛。
冶金、電力、采礦等行業：可以用于這些領域的電機控制和驅動管理。
典型硬件參數
供電電壓：由主控單元或電源模塊提供（例如5V、15V）。
通信接口：常見的接口包括 RS-485、CAN 總線等。
工作溫度范圍：通常為 0°C 至 60°C。
存儲溫度范圍：-40°C 至 85°C。
板卡結構：多層電路板，通常具有防護涂層以防止環境干擾。
兼容系統
此驅動控制板一般與以下設備一起使用：
ABB ACS 系列變頻器（例如 ACS5000、ACS6000）。
ABB DCS（分布式控制系統）。
ABB 高壓和中壓變頻驅動系統。
英文資料：
The ABB 3BHE014070R0101 drive control board is a key component in the ABB inverter system, specifically designed to control and regulate various parameters of the drive system. It is commonly used in ABB's high or medium voltage drive systems, responsible for controlling, signal processing, and protecting motors. This control board has the function of real-time monitoring of the operating status of motors and frequency converters, as well as executing control commands such as current, voltage, and frequency.
major function
Motor control: precise control of motor start, stop, speed adjustment, etc.
Inverter modulation: Drive the inverter module to achieve efficient energy conversion through PWM (pulse width modulation) control signals.
Fault diagnosis: With self diagnostic function, it can monitor key parameters such as voltage, current, temperature in real time and trigger alarms.
System protection: Provides protection functions such as current overload, over temperature, and short circuit.
Communication interface: Supports communication with ABB control systems or other external devices, including RS-485 or dedicated bus interfaces.
Signal sampling and processing: Real time acquisition and processing of voltage, current, and other signals to ensure precise control of the system.
application area
Industrial automation: used for various industrial automation equipment and drive control systems.
Electricity and Energy: Suitable for high-voltage motor drive control systems such as fans, pumps, compressors, etc.
Petrochemicals and Metallurgy: Widely used in high-pressure drive control.
Metallurgy, power, mining and other industries: can be used for motor control and drive management in these fields.
Typical hardware parameters
Power supply voltage: provided by the main control unit or power module (e.g. 5V, 15V).
Communication interface: Common interfaces include RS-485, CAN bus, etc.
Working temperature range: usually from 0 ° C to 60 ° C.
Storage temperature range: -40 ° C to 85 ° C.
Board structure: Multi layer circuit board, usually with protective coating to prevent environmental interference.
Compatible system
This drive control board is generally used with the following devices:
ABB ACS series frequency converters (such as ACS5000, ACS6000).
ABB DCS (Distributed Control System).
ABB high-voltage and medium voltage variable frequency drive systems.

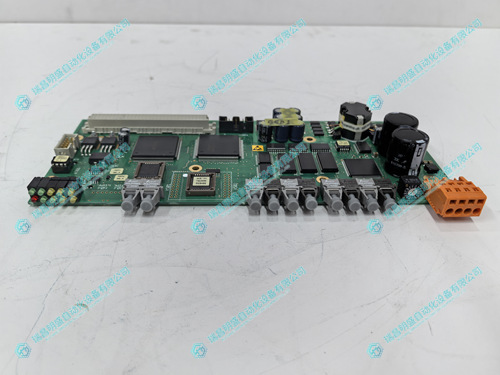

2.產 品 展 示
