FOXBORO FBM202 P0926EQ 熱電偶輸入模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
FBM202 P0926EQ 是 Foxboro I/A Series 系列中的一款熱電偶輸入模塊，支持多種類型的熱電偶信號（包括 K、J、T、E、B、R、S 等），可實現高精度的溫度測量功能。模塊用于過程控制系統中，特別適用于熱過程監控、工業自動化、化工與電力行業的溫度采集需求。
主要技術參數
| 項目 | 參數說明 |
|---|---|
| 輸入類型 | 熱電偶輸入（K、J、T、E、B、R、S、N 等） |
| 輸入通道數量 | 8 通道，隔離式熱電偶輸入 |
| 模擬輸入范圍 | 熱電偶類型相關（自動補償冷端溫度） |
| 精度（典型） | ±0.1% 讀數 ±1°C（具體取決于熱電偶類型） |
| 隔離特性 | 通道對通道之間、電源與通道之間完全隔離 |
| 冷端補償 | 內置冷端溫度補償（CJC） |
| 輸入信號更新速率 | 50 毫秒（每通道） |
| 工作溫度范圍 | 0°C ～ 60°C（標準模塊） |
| 安裝方式 | 安裝在 Foxboro FBM 通道底座（Baseplate）上 |
| 通訊方式 | 與 I/A Series 控制系統通過模塊總線通信 |
| 模塊電源 | 通過系統背板供電（24 VDC 公共母線） |
功能特點
多種熱電偶兼容性：支持廣泛的熱電偶標準類型，適應各種工業溫度測量需求
每通道獨立隔離：每個輸入通道之間電氣隔離，提高系統抗干擾能力與安全性
高精度測量：內建冷端補償，確保熱電偶測量精度
模塊化設計：熱插拔模塊，支持現場快速更換與維護
適配系統：完全兼容 Foxboro I/A Series 控制系統，可無縫集成
英文資料：
FBM202 P0926EQ is a thermocouple input module in the Foxboro I/A Series series, which supports multiple types of thermocouple signals (including K, J, T, E, B, R, S, etc.) and can achieve high-precision temperature measurement function. The module is used in process control systems and is particularly suitable for temperature acquisition needs in thermal process monitoring, industrial automation, chemical and power industries.
Main technical parameters
Project parameter description
Input type: thermocouple input (K, J, T, E, B, R, S, N, etc.)
Number of input channels: 8 channels, isolated thermocouple input
Analog input range related to thermocouple type (automatically compensates for cold junction temperature)
Accuracy (typical) ± 0.1% reading ± 1 ° C (depending on thermocouple type)
Isolation feature: The channel is completely isolated between channels and between power sources and channels
Cold end compensation with built-in cold end temperature compensation (CJC)
Input signal update rate of 50 milliseconds (per channel)
Working temperature range: 0 ° C to 60 ° C (standard module)
Installation method: Install on the Foxboro FBM channel base plate
Communication method with I/A Series control system through module bus communication
The module power is supplied through the system backplane (24 VDC common bus)
Functional Features
Multiple thermocouple compatibility: Supports a wide range of thermocouple standard types to meet various industrial temperature measurement needs
Independent isolation of each channel: Electrical isolation between each input channel improves the system's anti-interference ability and safety
High precision measurement: Built in cold end compensation ensures thermocouple measurement accuracy
Modular design: Hot swappable modules, supporting quick on-site replacement and maintenance
Adaptation System: Fully compatible with Foxboro I/A Series control system, seamlessly integrated

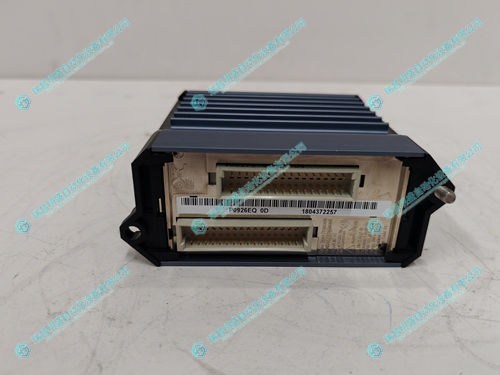

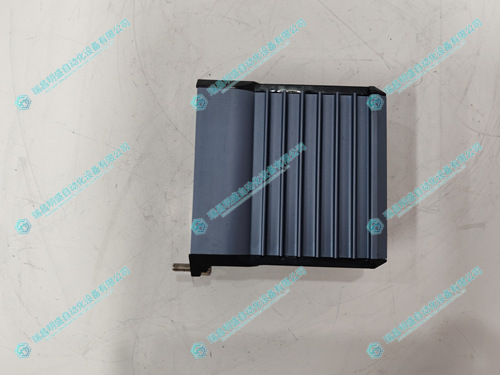

2.產 品 展 示
