TRICONEX AI2351 7400210-010 模塊底座 PDF資料
1.產 品 資 料 介 紹：
中文資料：
TRICONEX AI2351 7400210-010 模塊底座 是 TRICONEX 系列控制系統中一個重要的組件，它用于安裝和支撐 TRICONEX AI2351 模塊（模擬輸入模塊）。底座為模塊提供了物理連接點，并確保穩定的電氣接觸和良好的散熱性能。這個底座是 TRICONEX 系統中的一部分，能夠為模塊提供電力和數據傳輸支持，同時保證系統的安全運行。
主要特點
穩固的物理連接
底座提供堅固的物理安裝點，確保 TRICONEX AI2351 模塊 的安全固定，避免由于振動或外力干擾造成的松動或脫落。電氣連接和數據傳輸
底座具備為模塊提供必要的電力支持，并通過內部電路與控制系統建立連接，實現數據的傳輸和處理。兼容性強
底座設計考慮到 TRICONEX 系列的模塊兼容性，能夠與其他 TRICONEX 系列模塊兼容安裝，方便系統擴展和升級。散熱設計
底座在設計時考慮到散熱需求，幫助模塊在高負荷工作時保持溫度穩定，確保設備的長時間可靠運行。高可靠性和耐用性
采用高質量材料，確保底座能夠承受惡劣的工業環境，如高溫、濕氣、振動等，提供長時間的穩定工作。
技術規格
| 項目 | 參數說明 |
|---|---|
| 型號 | TRICONEX AI2351 7400210-010 |
| 兼容模塊 | TRICONEX AI2351 模塊 |
| 安裝方式 | DIN導軌安裝 |
| 電壓范圍 | 24V DC |
| 工作溫度 | -20°C 至 +60°C |
| 連接接口 | 提供電力和數據連接 |
| 材料 | 高強度耐用材料 |
| 散熱設計 | 優化散熱系統 |
英文資料：
The TRICONEX AI2351 7400210-010 module base is an important component in the TRICONEX series control system, used to install and support the TRICONEX AI2351 module (analog input module). The base provides physical connection points for the module and ensures stable electrical contact and good heat dissipation performance. This base is part of the TRICONEX system and can provide power and data transmission support for modules while ensuring the safe operation of the system.
main features
Stable physical connection
The base provides a sturdy physical mounting point to ensure the safe fixation of the TRICONEX AI2351 module, avoiding looseness or detachment caused by vibration or external interference.
Electrical connection and data transmission
The base provides necessary power support for the module and establishes a connection with the control system through internal circuits to achieve data transmission and processing.
Strong compatibility
The base design takes into account the compatibility of the TRICONEX series modules, allowing for compatible installation with other TRICONEX series modules, facilitating system expansion and upgrades.
Thermal Design
The base is designed with heat dissipation requirements in mind, helping the module maintain temperature stability during high load operation and ensuring long-term reliable operation of the equipment.
High reliability and durability
Using high-quality materials to ensure that the base can withstand harsh industrial environments such as high temperature, moisture, vibration, etc., providing long-term stable operation.
technical specifications
Project parameter description
Model Triconex AI2351 7400210-010
Compatibility module Triconex AI2351 module
Installation method: DIN rail installation
Voltage range 24V DC
Working temperature -20 ° C to+60 ° C
The connection interface provides power and data connections
High strength and durable materials
Optimizing heat dissipation design and cooling system

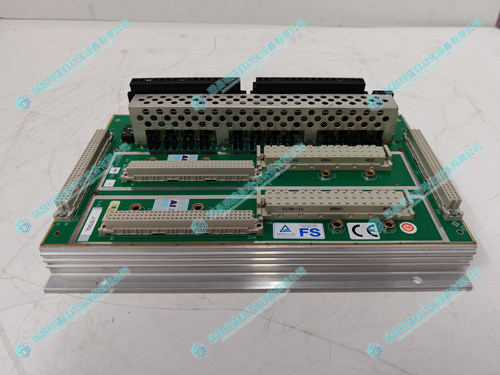

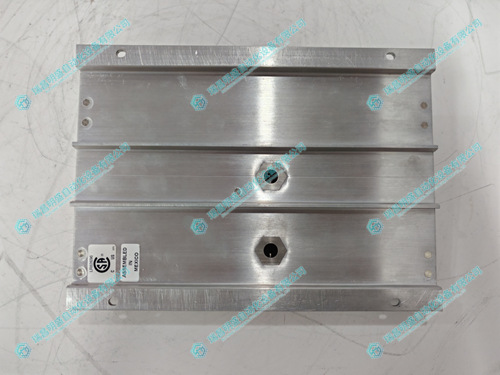

2.產 品 展 示
