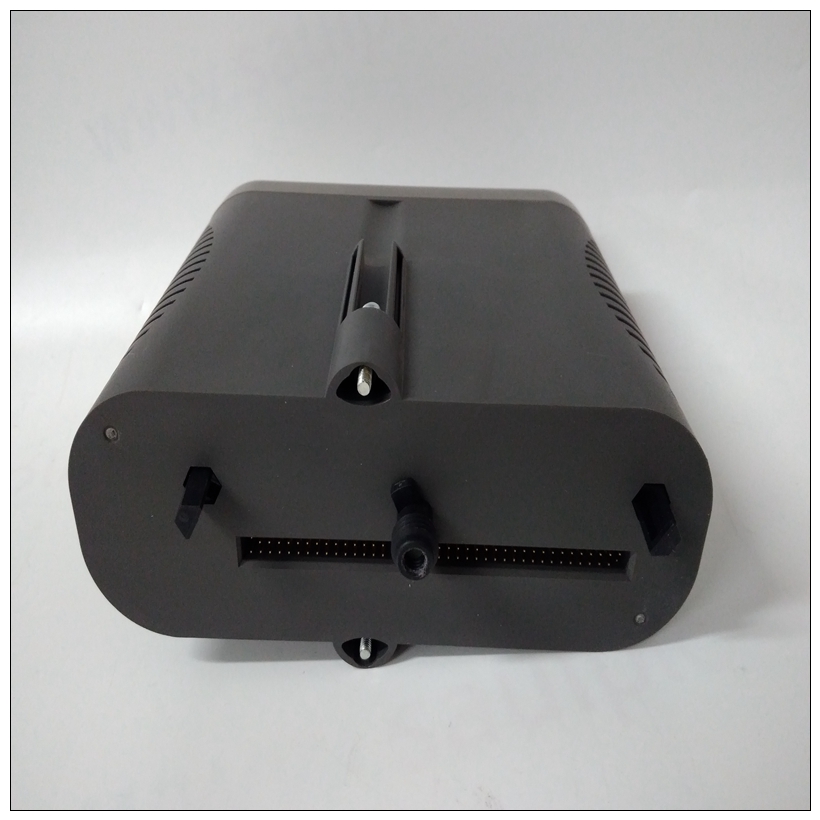

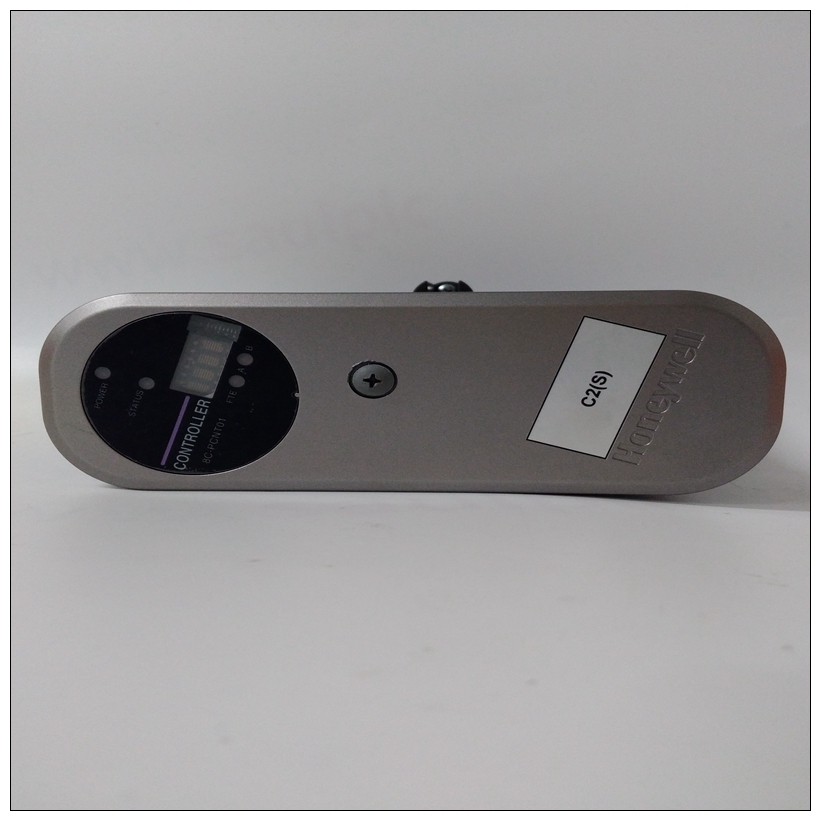

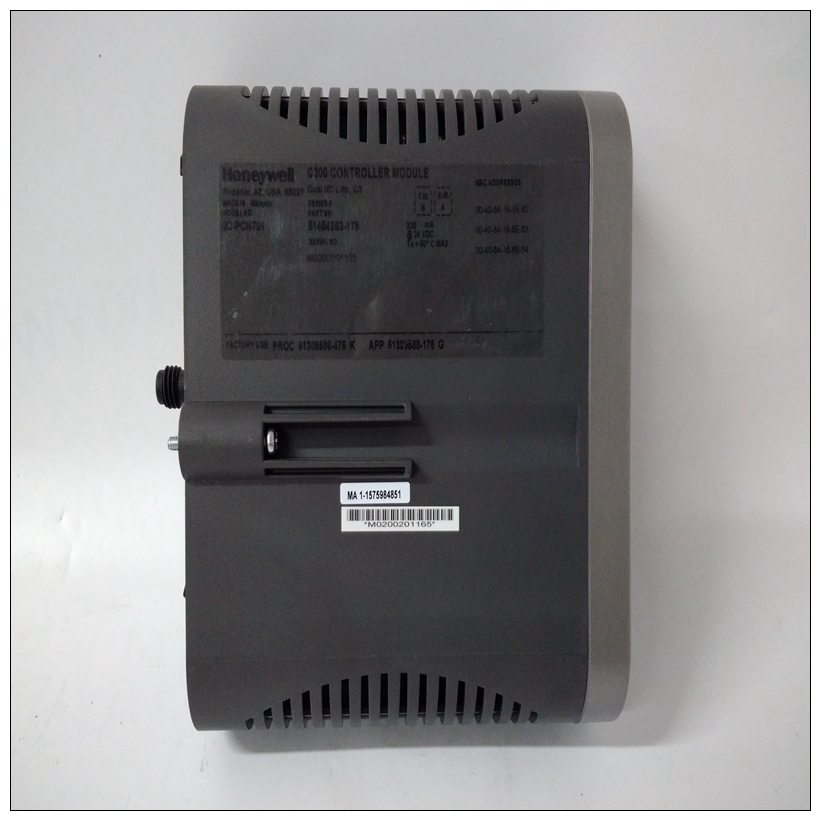

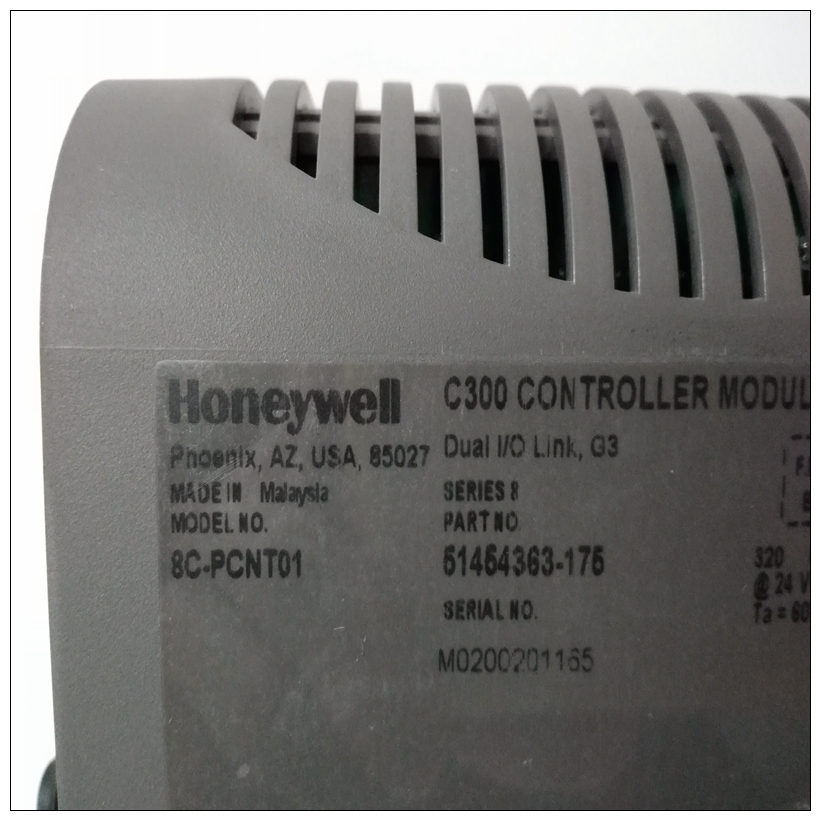

8C-PCNT01模塊卡件,HONEYWELL產品顏色
按下并釋放“斷開”鍵可生成“斷開”控制臺終端鍵盤。
? 中斷不會(huì )生成中斷。
? 唯一可以識別的時斷是在發送字符時或由控制臺端口接收。
很多時候，可能需要終止調試器命令竣工前；例如，在顯示大型內存塊。Break允許您終止命令。中斷序列1.刪除代碼中的任何斷點，并保留斷點表完好無損。
2使用系統調用輸入。然后可以訪問該機器狀態以便于診斷。
8C-PCNT01模塊卡件SYSFAIL*斷言/否定在重置/通電條件下，調試器斷言VMEbusSYSFAIL*線路（參考VMEbus規范）。SYSFAIL*保持如果發生以下任何情況，則斷言：
? 置信度測試失敗NVRAM校驗和錯誤
? NVRAM電池電量低
? 本地內存配置狀態
? 自檢（如果系統模式）已完成，但出現錯誤
? MPU時鐘速度計算失敗調試器初始化完成后，上述操作都沒有出現這種情況時，SYSFAIL*行被否定。這向用戶或VMEbus主機指示調試器的狀態。在多計算機配置中，其他VMEbus主機可以查看相關的控制和狀態寄存器以確定
CPU正在斷言SYSFAIL*。SYSFAIL*斷言/否定也是受ENV命令的影響。參考附錄A。
MPU時鐘速度計算計算并檢查微處理器的時鐘速度針對NVRAM中包含的用戶可定義參數（請參閱附錄A中的CNFG命令）。如果檢查失敗，則發出警告顯示消息。
A “Break” is generated by pressing and releasing the BREAK key on
the console terminal keyboard.
? Break does not generate an interrupt.
? The only time break is recognized is when characters are sent
or received by the console port.
Many times it may be desirable to terminate a debugger command
prior to its completion; for example, during the display of a large
block of memory. Break allows you to terminate the command. Break Sequence
1. Removes any breakpoints in your code and keeps the
breakpoint table intact.
2. Takes a snapshot of the machine state if the function was
entered using SYSCALL. This machine state is then accessible
to you for diagnostic purposes.
SYSFAIL* Assertion/Negation
Upon a reset/powerup condition the debugger asserts the VMEbus
SYSFAIL* line (refer to the VMEbus specification). SYSFAIL* stays
asserted if any of the following has occurred:
? Confidence test failure
? NVRAM checksum error
? NVRAM low battery condition
? Local memory configuration status
? Self test (if System Mode) has completed with error
? MPU clock speed calculation failure
After debugger initialization is done and none of the above
situations have occurred, the SYSFAIL* line is negated. This
indicates to the user or VMEbus masters the state of the debugger.
In a multi-computer configuration, other VMEbus masters could
view the pertinent control and status registers to determine which
CPU is asserting SYSFAIL*. SYSFAIL* assertion/negation is also
affected by the ENV command. Refer to Appendix A.
MPU Clock Speed Calculation
The clock speed of the microprocessor is calculated and checked
against a user definable parameter contained in NVRAM (refer to
the CNFG command in Appendix A). If the check fails, a warning
message is displayed.
