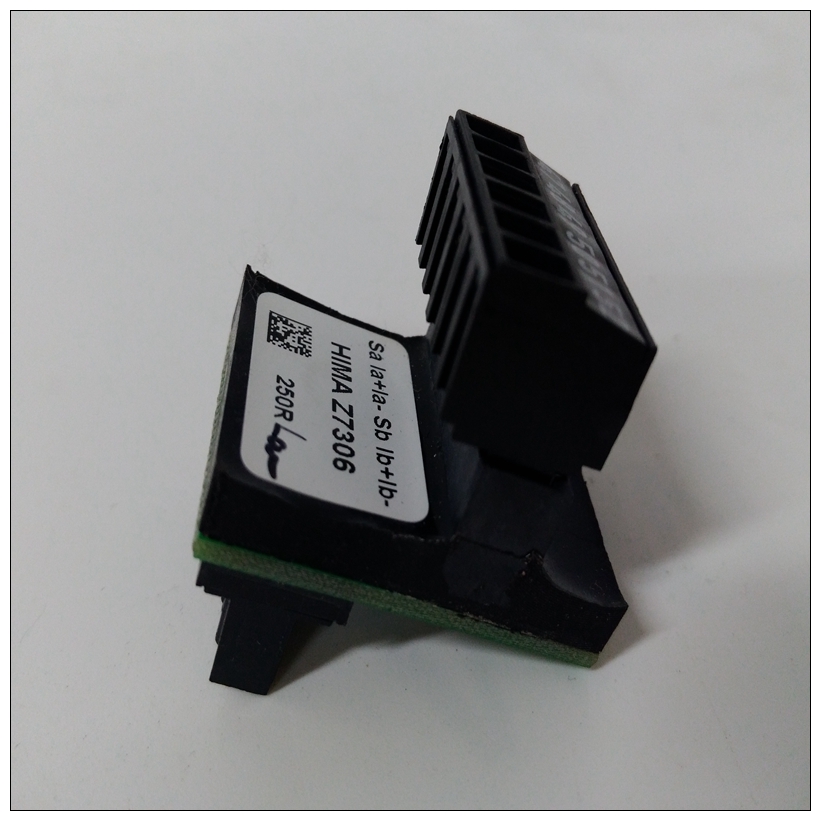

HIMA Z7306端子模塊，Z7306使用手冊
? SCSI接口（通過P2適配器）用于連接到兩個內部和外部設備
? 插座安裝的SCSI端接電阻器，用于電纜末端或中間電纜配置
? 調制解調器連接規定
? SCSI終端電源的綠色LED；以太網黃色LED收發器功率P2適配器板的功能包括：
? 一個50針連接器，用于SCSI布線至MVME712M和/或其他SCSI設備? 插座安裝的SCSI端接電阻器，用于電纜末端或中間電纜配置
HIMA Z7306端子模塊? 由+5VDC電源開發的熔斷SCSI終端電源接頭P2處
? 一個64針DIN連接器，用于連接EIA-232-D、并行、SCSI、，和以太網信號傳輸至MVME712M串行端口1-4 DCE/DTE配置串行端口1到4可配置為調制解調器（DCE）進行連接連接到終端，或作為連接到調制解調器的終端（DTE）。這個MVME712M附帶為DTE配置的串行端口活動串行端口DCE/DTE配置由以下步驟完成：在每個端口的兩個收割臺之一上定位跳線。下表列出串行端口及其相應的跳線頭。接下來的六幅圖說明了MVME2603/2604基板和帶互連和跳線的MVME712M過渡模塊每個串行端口上的DCE/DTE配置設置。串行端口4時鐘配置端口4可以通過J15（圖1-4）配置為使用TrxC4和RtxC4信號線。部分配置使用收割臺J16、J17和
MVME2603/2604上的J20（圖1-9和圖1-10）。P2適配器準備MVME712M P2適配器的準備包括拆除或安裝SCSI端接電阻器。圖1-11說明了電阻器、保險絲和接頭的位置。
有關準備過渡模塊和P2適配器，請參閱MVME712M的用戶手冊（中列出附錄D，相關文件）
? An SCSI interface (via P2 adapter) for connection to both internal
and external devices
? Socket-mounted SCSI terminating resistors for end-of-cable or
middle-of-cable configurations
? Provision for modem connection
? Green LED for SCSI terminator power; yellow LED for Ethernet
transceiver power
The features of the P2 adapter board include:
? A 50-pin connector for SCSI cabling to the MVME712M and/or to
other SCSI devices? Socket-mounted SCSI terminating resistors for end-of-cable or
middle-of-cable configurations
? Fused SCSI terminator power developed from the +5VDC present
at connector P2
? A 64-pin DIN connector to interface the EIA-232-D, parallel, SCSI,
and Ethernet signals to the MVME712MSerial Ports 1-4 DCE/DTE Configuration
Serial ports 1 through 4 are configurable as modems (DCE) for connection
to terminals, or as terminals (DTE) for connection to modems. The
MVME712M is shipped with the serial ports configured for DTE
operation. Serial port DCE/DTE configuration is accomplished by
positioning jumpers on one of two headers per port. The following table
lists the serial ports with their corresponding jumper headers.
The next six figures illustrate the MVME2603/2604 base board and
MVME712M transition module with the interconnections and jumper
settings for DCE/DTE configuration on each serial port.
Serial Port 4 Clock Configuration
Port 4 can be configured via J15 (Figure 1-4)to use the TrxC4 and RtxC4
signal lines. Part of the configuration is done with headers J16, J17, and
J20 on the MVME2603/2604 (Figure 1-9 and Figure 1-10).P2 Adapter Preparation
Preparation of the P2 adapter for the MVME712M consists of removing or
installing the SCSI terminating resistors. Figure 1-11 illustrates the
location of the resistors, fuse, and connectors.
For further information on the preparation of the transition module and the
P2 adapter, refer to the user’s manual for the MVME712M (listed in
Appendix D, Related Documentation) as necessary
