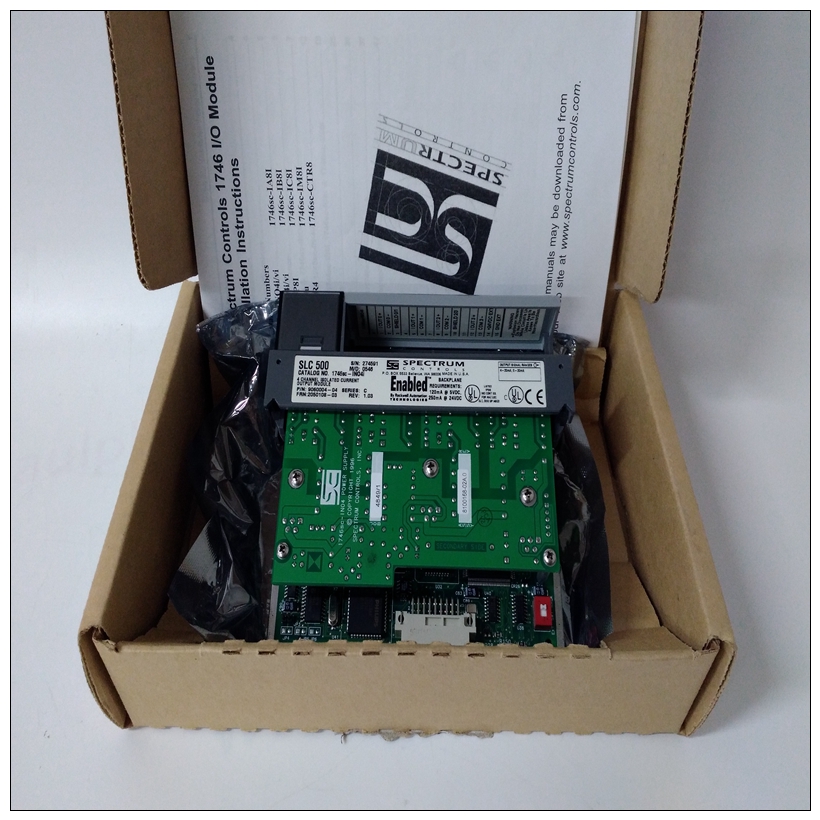

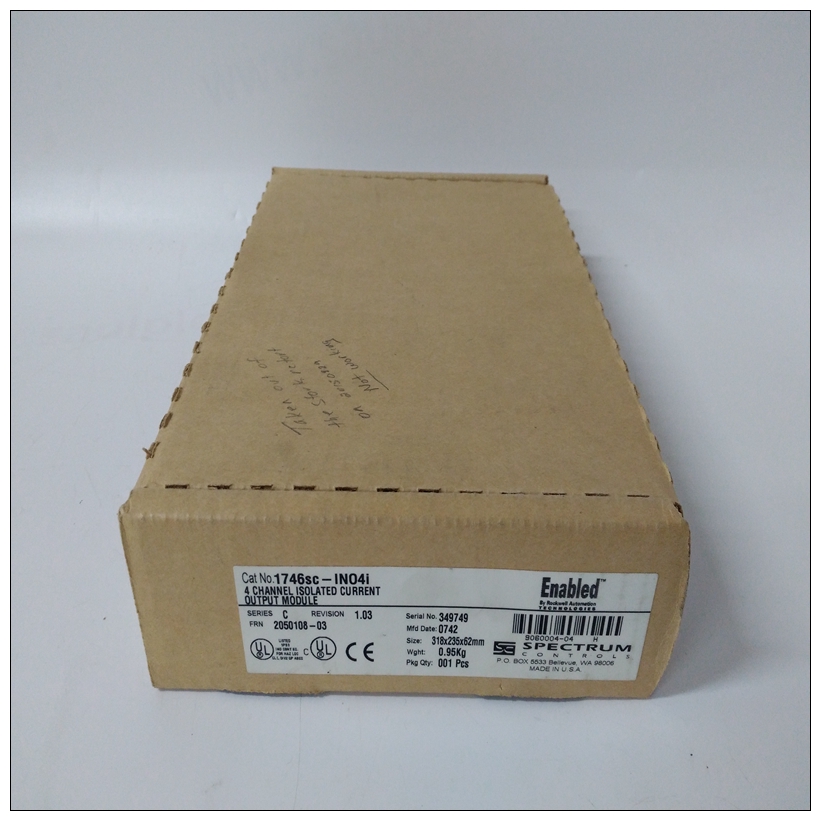

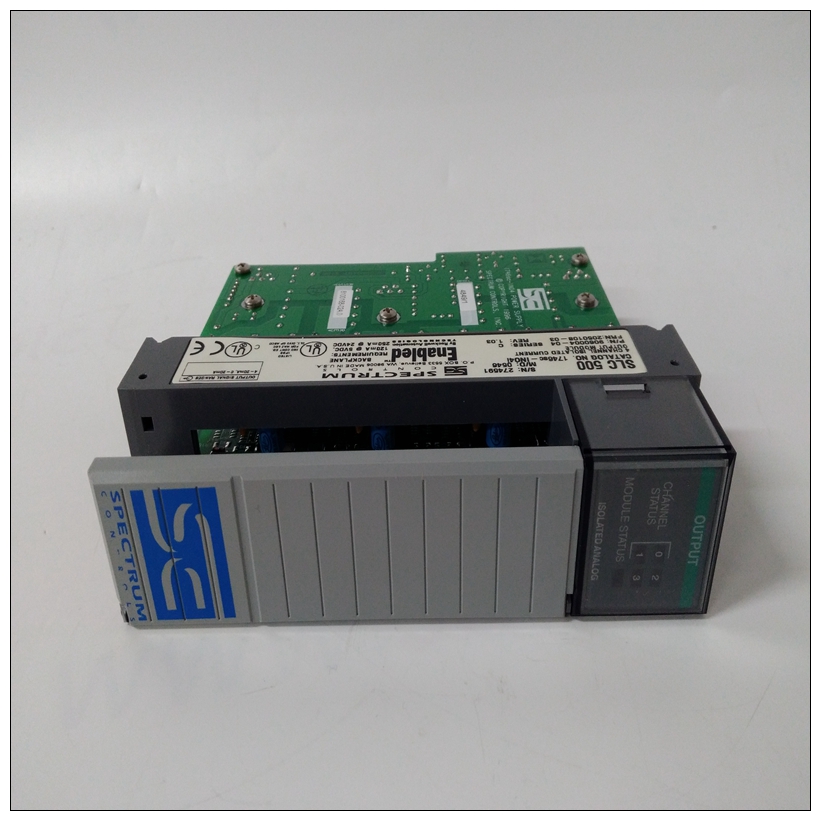

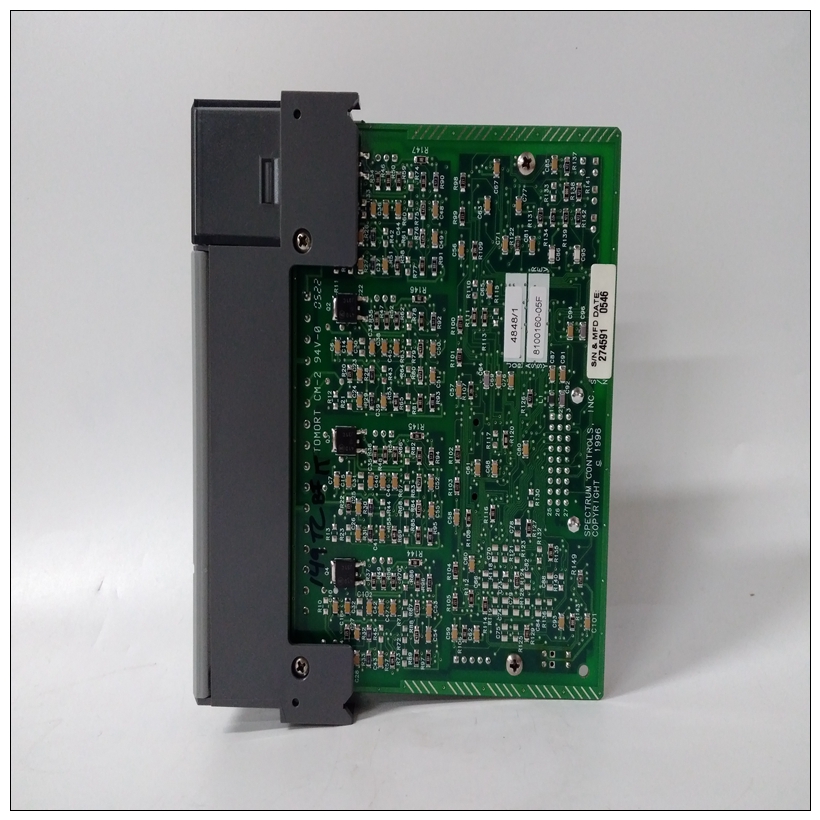

1746SC-INO4I模塊,A-B說明書
MVME2700 VME模塊消耗+5V DC、+12V DC和–來自VMEbus背板的12V直流電源，通過連接器P1和P2.3.3V DC和2.5V DC電源由車載+5V直流電。
MVME2700 VME模塊MVME2700 VME模塊提供+12V DC和（在MVME761中輸入/輸出模式）–通過多功能開關向過渡模塊提供12V直流電源（可復位保險絲）F2和F3。這些電壓源為
串行端口驅動程序和連接到轉換的任何LAN收發器單元保險絲+5V直流電源通過多功能開關F1提供給基板的鍵盤和鼠標連接器與14針相結合LED夾層/遠程重置接頭J1。
1746SC-INO4I模塊上的FUS LED（DS5）當所有三種電壓都可用時，MVME2700前面板點亮。在MVME712M輸入/輸出模式下，MVME712M上的黃色DS1 LED也發出+12V直流LAN電源可用性的信號，反過來表明多功能開關F2良好。如果以太網收發器無法工作，請檢查多功能開關F2。在MVME712M輸入/輸出模式下，MVME2700提供SCSI終端通過P2適配器板上的1A保險絲（F1）供電。如果保險絲如果SCSI設備損壞，則SCSI設備可能無法正常工作或根本無法正常工作。和P2適配器板，通過電纜連接到轉換模塊，并帶有SCSI總線連接到轉換模塊，模塊上的綠色SCSI指示燈SCSI終端電源可用時亮起。如果SCSI指示燈亮起轉換模塊在SCSI總線操作期間閃爍，檢查保險絲F1是否接通P2適配器板。注意，因為SCSI總線上的任何設備都可以提供TERMPWR信號，因為MVME2700 FUS LED監控多個電壓的狀態，LED不會(huì )直接指示任何單個保險絲的狀況。如果FUS LED閃爍或熄滅，檢查所有保險絲（多功能開關）。在MVME761輸入/輸出模式下，MVME2700提供SCSI終端電源通過P2適配器板上的多功能開關（可復位保險絲）。MVME2700向14針組合式揚聲器提供揚聲器輸出信號LED夾層/遠程重置接頭J1。當J1用作遙控器時卸下LED夾層，將揚聲器拔出，重置連接器信號可以通過電纜連接到外部揚聲器。對于J1的引腳分配，
參見表4-1。
The MVME2700 VME module draws +5V DC, +12V DC, and
–12V DC power from the VMEbus backplane through connectors P1 and
P2. The 3.3V DC and 2.5V DC power is derived on-board from the
+5V DC.
MVME2700 VME Module
The MVME2700 VME module furnishes +12V DC and (in MVME761
I/O mode) –12V DC power to the transition module through polyswitches
(resettable fuses) F2 and F3 respectively. These voltage sources power the
serial port drivers and any LAN transceivers connected to the transition
module. Fused +5V DC power is supplied through polyswitch F1 to the
base board’s keyboard and mouse connectors and to the 14-pin combined
LED-mezzanine/remote-reset connector, J1. The FUS LED (DS5) on the
MVME2700 front panel illuminates when all three voltages are available.
In MVME712M I/O mode, the yellow DS1 LED on the MVME712M also
signals the availability of +12V DC LAN power, indicating in turn that
polyswitch F2 is good. If the Ethernet transceiver fails to operate, check
polyswitch F2.
In MVME712M I/O mode, the MVME2700 supplies SCSI terminator
power through a 1A fuse (F1) located on the P2 adapter board. If the fuse
is blown, the SCSI device(s) may function erratically or not at all. With the
P2 adapter board cabled to a transition module and with an SCSI bus
connected to the transition module, the green SCSI LED on the module
illuminates when SCSI terminator power is available. If the SCSI LED on
the transition module flickers during SCSI bus operation, check fuse F1 on
the P2 adapter board.
Note Because any device on the SCSI bus can provide the TERMPWR
signal, and because the MVME2700 FUS LED monitors the
status of several voltages, the LED does not directly indicate the
condition of any single fuse. If the FUS LED flickers or goes out,
check all the fuses (polyswitches).In MVME761 I/O mode, the MVME2700 supplies SCSI terminator power
through a polyswitch (resettable fuse) located on the P2 adapter board.
The MVME2700 supplies a SPEAKER_OUT signal to the 14-pin combined
LED-mezzanine/remote-reset connector, J1. When J1 is used as a remote
reset connector with the LED mezzanine removed, the SPEAKER_OUT
signal can be cabled to an external speaker. For the pin assignments of J1,
refer to Table 4-1.
