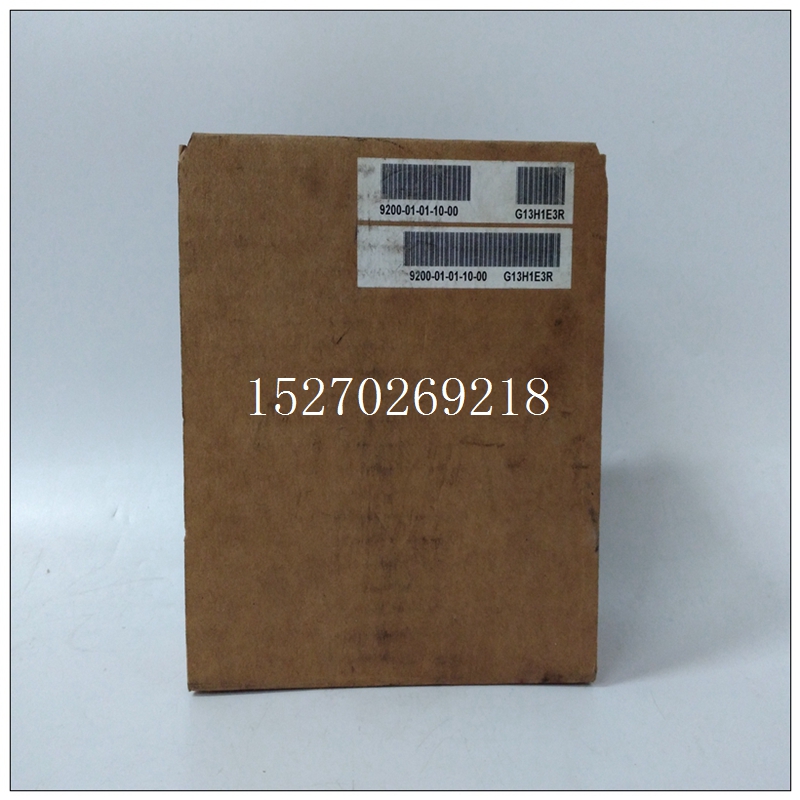

BENTLY 9200-01-01-10-00探頭傳感器
將標簽放卷、牽引、送出、裁切的機構構成，可以由多種類型的標站，采用收放卷的高速運動控制技術來保障穩定的張力，以為精準送標、切標提供保障。標簽的收放卷機構，其放卷必須確保與大盤同步，并能夠進行補充調整，而收卷則采用扭矩控制模式，帶擺輥的方式。通常送標帶色標的方式，送標控制由電子凸輪控制及鎖標（LATCH）功能配合完成，確保能夠精準而又平穩的送標過程。在這個過程中，必須對色標、主軸編碼器信號進行微秒級的預測和延時處理，以確保高速中的信號實時同步。
整機配置-緊湊型設計的ACOPOSmotor
BENTLY 9200-01-01-10-00探頭傳感器圖5-貼標機系統配置圖
從圖5整個機器的配置可以看到，多達60個伺服電機，其高速同步性，由POWERLINK實時網絡(luò )來保障，達到百微秒級的任務周期。而另一方面采用ACOPOSmotor伺服驅動與電機一體的設計，也讓整個接線變得更少，且空間緊湊，易于機械的安裝維護。
機器的功能性設計
在回轉式貼標機中，針對冷膠、熱熔膠、不干膠標準可以實現自動在線監測，自由配對，機械模塊化、電氣硬件模塊化，同時軟件也實現模塊化。
配方存儲與切換：在該機器中，由于經常需要重復生產，或者經常變化尺寸規格、材料等，工藝配方可以進行存儲并調用。
缺瓶檢測-確保無瓶不貼標，降低不必要的標簽損耗，節省成本；自動換卷、換標、自動接標—可以實現連續生產，保持整個產線的高OEE運營狀態-并可以對OEE狀態進行計算并記錄。步進電機作為一種開環控制的系統，和現代數字控制技術有著本質的聯系。在目前國內的數字控制系統中，步進電機的應用十分廣泛。隨著全數字式交流伺服系統的出現，交流伺服電機也越來越多地應用于數字控制系統中。為了適應數字控制的發展趨勢，運動控制系統中大多采用步進電機或全數字式交流伺服電機作為執行電動機。雖然兩者在控制方式上相似（脈沖和方向信號），但在使用性能和應用場合上存在著較大的差異?，F就二者的使用性能作一一比較。
基本結構
步進電機結構圖
兩相混合式步進電機步距角一般為 1.8°、0.9°，五相混合式步進電機步距角一般為0.72°、0.36°。也有一些高性能的步進電機通過細分后步距角更小。如鳴志公司（MOONS'）生產的二相混合式步進電機搭配其SR系列步進驅動器，其步距角可通過撥碼有16檔細分可以選擇1.8°、0.9°、0.45°、0.36°、0.225°、0.18°、0.1125°、0.09°、0.072°、0.05625°、0.045°、0.036°、0.028125°、0.018°、0.0144°、0.014°，兼容了兩相和五相混合式步進電機的步距角。
bidirectional thyristor and transistor. Therefore, for the output end of the circuit, there are corresponding types of "relay output, transistor output, bidirectional thyristor output". Relay output and transistor output are the most common in PLC. Although they are both control devices, they are different. Transistor input and output are not electrically isolated, while relay is electrically isolated. When the volume is limited and the response time is very short, transistor control is often used; When the voltage is relatively high and the current is relatively large, and personal safety should be paid attention to, relays are often used. The relay output is generally strong current controlled by weak current. The output current and voltage are written on the shell of the relay. The specific differences between the two are as follows:
1. Different types of load voltage and current
Load type: transistors can only carry DC loads, while relays can carry AC and DC loads. Current: the maximum transistor current is 0.75a, and the maximum relay current is 2A. Voltage: the transistor can be connected to DC 24V (generally the maximum is about DC 30V, and the relay can be connected to DC 24V, maximum 30V or AC 220V).
2. The load carrying capacity of transistors is less than that of relays. The load carrying capacity of transistors is less than that of relays. When using transistors, sometimes other things need to be added to drive large loads (such as relays, solid-state relays, etc.).
3. The overload capacity of transistor is less than that of relay. Generally speaking, when there is a large impulse
