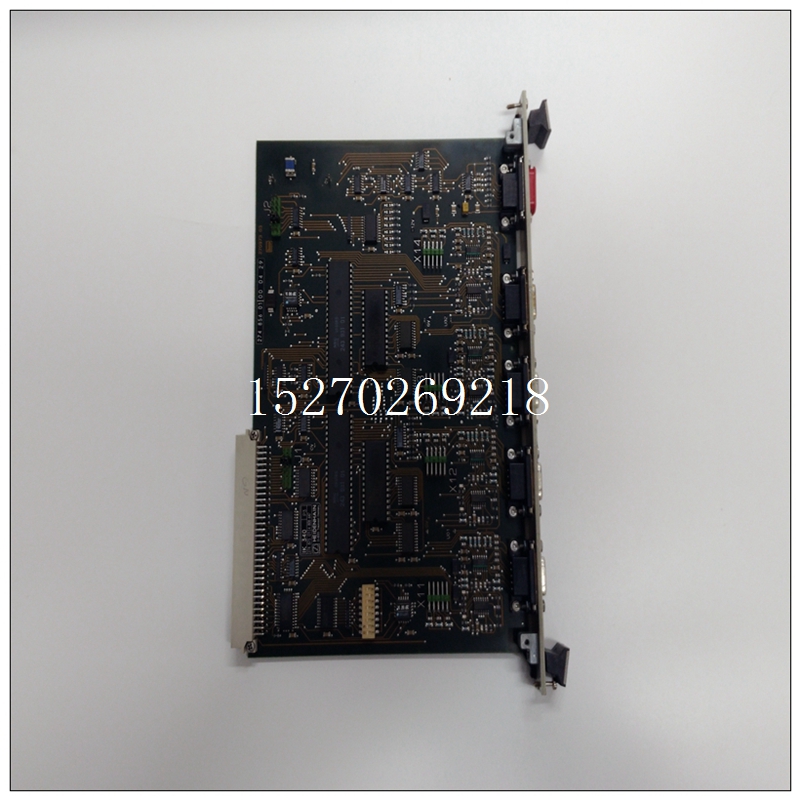

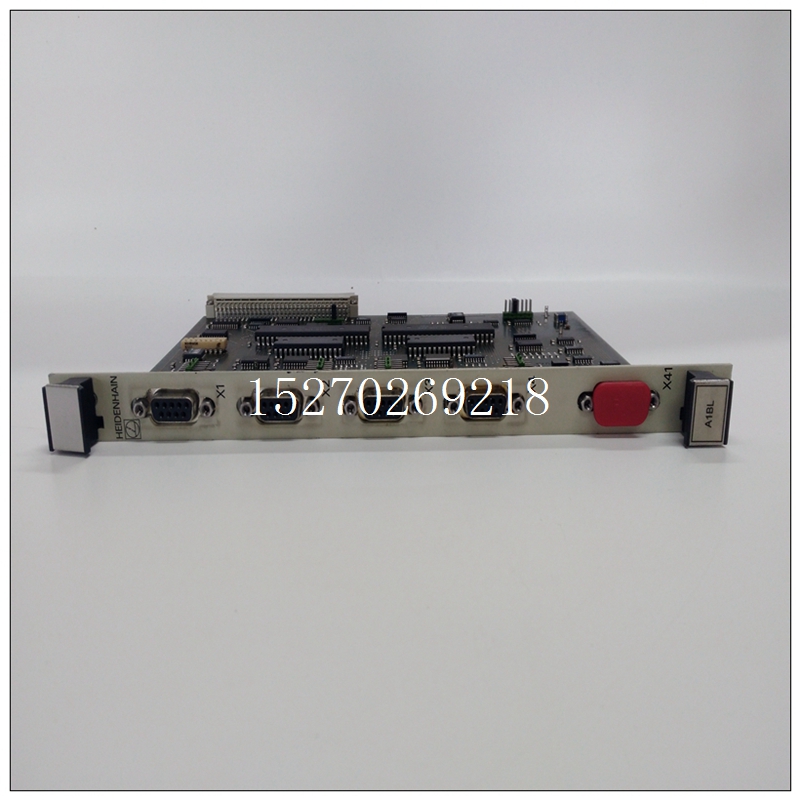

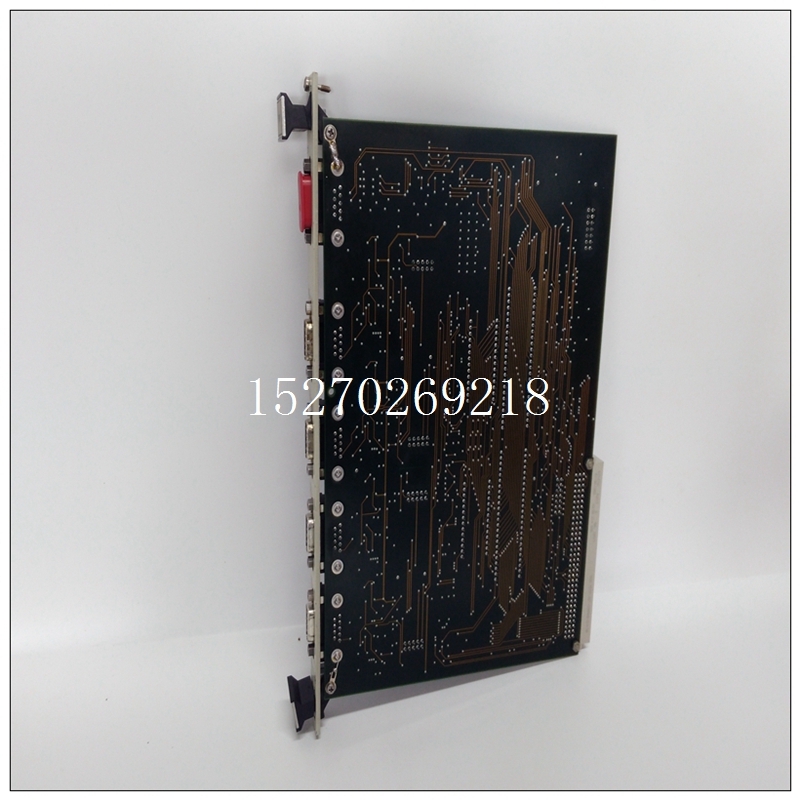

IK340驅動模塊,HEIDENHAIN英文使用說明
公共阻抗耦合
當來自?xún)蓚€(gè)不同電路的電流流經一個公共阻抗時就會(huì )產生共阻抗耦合。阻抗上的壓降由兩個電路決定，來自?xún)蓚€(gè)電路的地電流流經共地阻抗。電路1的地電位被地電流2調制，噪聲信號或DC補償經共地阻抗從電路2耦合到電路1。輻射耦合
經輻射的耦合通稱串擾。串擾發生在電流流經導體時產生電磁場，而電磁場在鄰近的導體中感應瞬態電流。 輻射發射
IK340驅動模塊,HEIDENHAIN英文使用說明輻射發射有兩種基本類型：差分模式(DM)和共模(CM)。共模輻射或單極天線輻射是由無意的壓降引起的，它使電路中所有地連接抬高到系統地電位之上。就電場大小而言，CM輻射是比DM輻射更為嚴重的問題。為使CM輻射最小，必須用切合實際的設計使共模電流降到零。
02影響EMC的因數
① 電壓。電源電壓越高，意味著電壓振幅越大，發射就更多，而低電源電壓影響敏感度。
② 頻率。高頻產生更多的發射，周期性信號產生更多的發射。在高頻單片機系統中，當器件開關時產生電流尖峰信號;在模擬系統中，當負載電流變化時產生電流尖峰信號。
③ 接地。在所有EMC問題中，主要問題是不適當的接地引起的。有三種信號接地方法：?jiǎn)吸c(diǎn)、多點和混合。在頻率低于1 MHz時，可采用單點接地方法，但不適于高頻;在高頻應用中，最好采用多點接地?；旌辖拥厥堑皖l用單點接地，而高頻用多點接地的方法。地線布局是關鍵，高頻數字電路和低電平模擬電路的地回路絕對不能混合。
④ PCB設計。適當的印刷電路板(PCB)布線對防止EMI是至關重要的。
⑤ 電源去耦。當器件開關時，在電源線上會(huì )產生瞬態電流，必須衰減和濾掉這些瞬態電流。來自高di/dt源的瞬態電流導致地和線跡“發射”電壓，高di/dt產生大范圍高頻電流，激勵部件和線纜輻射。流經導線的電流變化和電感會(huì )導致壓降，減小電感或電流隨時間的變化可使該壓降最小。
electromagnetic interference to any equipment in its environment. Therefore, EMC includes two requirements: on the one hand, it means that the electromagnetic interference generated by the equipment to the environment during normal operation cannot exceed a certain limit; On the other hand, it means that the appliance has a certain degree of immunity to the electromagnetic interference in the environment, that is, electromagnetic sensitivity. On the road of various motor vehicles, the driving of motor vehicles will produce a complex electromagnetic field, which requires the very strong electromagnetic compatibility ability of the switch, so as to accurately and quickly identify the electromagnetic interference generated by the vehicle and filter it out.
Industrial Ethernet switch, the so-called industrial Ethernet switch, generally speaking, is an Ethernet switch applied to industry. Generally speaking, it refers to technical and commercial Ethernet (automation is the mainstream trend of the development
