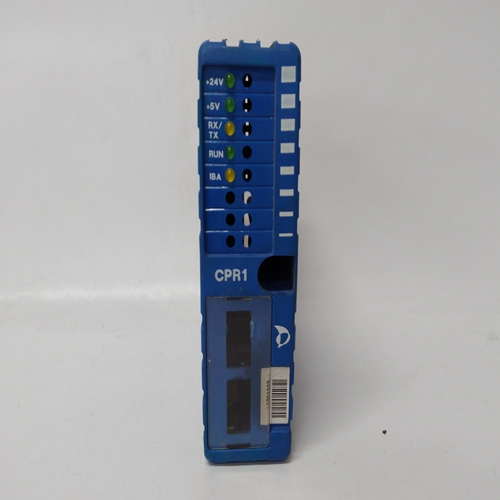

NELES AUTOMATION A413280 CPR1輸出模塊
一天中的時間（例如23:59），小時值閃爍。（4） 按下工程卡時鐘按鈕a
第二次和選定的控制卡數字顯示將以分鐘顯示一天中的時間（例如23:59）值正在閃爍。
（5） 再次按下工程卡時鐘按鈕時間和所選控制卡將顯示：a、 信息顯示屏上的年份（如1995年）（閃爍）。
b、 月和日（如08-26）或日和月（如26-08）顯示在數字顯示器上，具體取決于：國際日期格式配置。
（6） 隨后按下時鐘按鈕將導致月份然后一天就要過去了。
（7） 進一步按下時鐘按鈕將重復步驟（3）至（6）。
（8） 在每個階段，使用和按鈕升高或降低4.8
根據需要顯示數值，以設置任何新的日期和時間。
注意：在上述順序中，隨時按下按鈕將使工程卡返回到所選模式，而不更改時鐘時間和日歷日期。
（9） 按下按鈕設置工程卡實時時鐘返回到新的日期和時間，并將控制卡返回到選定的
模式維護記錄打印輸出
有關維護記錄打印輸出的詳細信息，請參閱第6章第節
4.8.批準和標準
設計符合：
EN50054一般要求（可燃氣體）。
EN50057性能（100 LEL）。EN50058性能（100 V/V）。
EN50271軟件和數字技術。
滿足50V操作的Exe隔離要求。
BBG Pruef-und Zertifizier GmbH考試，EC類型考試證書B(niǎo)VS
04 ATEX G 001 X。
注：如果符合EC型式檢驗證書B(niǎo)VS 04
需要ATEX G 001 X，請參閱第10章“特殊條件”為了安全使用’。確保滿足其中的所有條件。
SETTING THE CLOCK/CALENDAR
Note: This operation requires a control card to be selected but the
operation has no effect on the selected control card, which is used
as a display device only.
To set the clock time and calendar date, proceed as follows:
(1) Plug the Engineering Key into the Engineering Card front panel
socket and check that the Unlocked LED ( ) is illuminated.
(2) Push and hold the required control card RESET/SELECT pushbutton for approximately 1.5 seconds and check that the selected
control card indicates it has been selected by displaying the select
icon.
(3) Push the Engineering Card CLOCK push-button and
the selected control card digital display will show the
time of day (eg. 23:59) with the HOURS value flashing.
(4) Push the Engineering Card CLOCK push-button a
second time and the selected control card digital display
will display the time of day (eg. 23:59) with the MINUTES
value flashing.
(5) Push the Engineering Card CLOCK push-button a third
time and the selected control card will display:
a. The year (eg. 1995) on the message display
(flashing).
b. The month and day (eg. 08-26) or day and month
(eg. 26-08) on the digital display depending upon
the international date format configuration.
(6) Subsequent pushes of the CLOCK push-button will cause the month
and then the day to flash.
(7) Further pushes of the CLOCK push-button will repeat Steps (3) to (6).
(8) At each stage, use the and push-buttons to raise or lower the 4.8
displayed numerical value as required to set any new date and time.
Note: Pressing the push-button at any time during the above sequence
will return the Engineering Card to the selected mode without
changing the clock time and calendar date.
(9) Press the push-button to set the Engineering Card real time clock
to the new date and time, and return the control card to the selected
mode.MAINTENANCE RECORD PRINTOUTS
For details of maintenance record printouts, refer to Chapter 6 Section
4.8.APPROVALS AND STANDARDS
Designed to comply with:
EN50054 General Requirements (Combustible Gases).
EN50057 Performance (100 LEL).
EN50058 Performance (100 V/V).
EN50271 Software and Digital Technologies.
Meets Exe isolation requirements for 50V operation.
EXAM BBG Pruef- und Zertifizier GmbH, EC-type examination certificate BVS
04 ATEX G 001 X.
Note: If compliance with the EC-type examination certificate BVS 04
ATEX G 001 X is required, refer to chapter 10 ‘Special Conditions
for Safe Use’. Ensure that all conditions therein are met.
