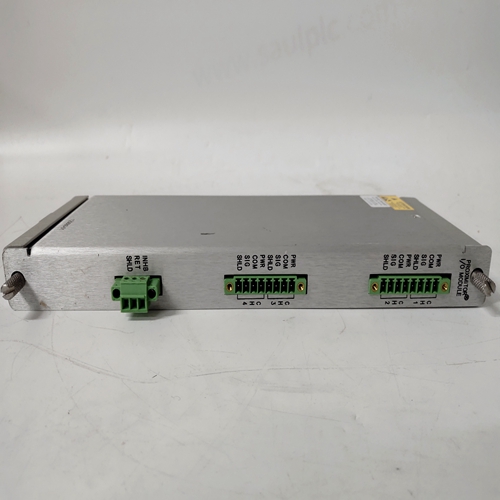

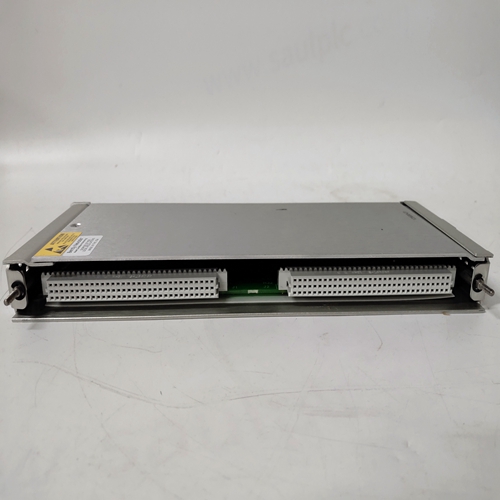

BENTLY 125680-01監測器卡件
回路按鈕-可配置一個或多個回路。當配置了多個環路時
循環按鈕將使操作員顯示前進到下一個活動循環。所有操作員控制現在都會(huì )影響
當前顯示在字母數字顯示器（如FC2367）中的活動循環。當第一次顯示循環時，循環標記將以字母數字形式出現，顯示的變量將與循環時相同上次查看。
?確認按鈕-該按鈕與L和S狀態指示燈一起用于管理事件（例如，狀態和錯誤條件）。事件具有用戶指定的優先級1-5（1最高）并且將首先按優先級然后按發生順序在控制器內組織。
?S狀態指示燈-表示事件在工作站中處于活動狀態。閃爍的LED指示燈指示事件需要：待確認。
?L狀態LED-表示事件在顯示的循環中處于活動狀態。閃爍的LED指示事件需要承認。優先：
?優先級1導致電站條形圖和事件LED閃爍，并要求停止確認閃爍。這是最高優先級。
?優先級2也會(huì )閃爍條形圖，但在事件清除（即自清除）時停止閃爍。
?優先級3導致事件LED L&S閃爍，并僅在確認事件時停止。
?優先級4也會(huì )導致事件LED閃爍，但在事件清除時停止。
優先級5顯示事件，但不要求確認。這是最低優先級。
如果事件處于活動循環中，字母數字顯示將在循環標記和未確認的條件（如“TC2053.P”<-->“A3高”）。按下確認按鈕確認此情況并停止閃爍。
確認所有事件后，可使用確認按鈕滾動瀏覽任何活動報警或活動環路內的狀態條件。按下確認按鈕將滾動瀏覽活動事件列表，以及當多個事件處于活動狀態時，環繞到列表的開頭。如果ACK按鈕未按下3秒鐘，并返回正常顯示模式。如果未確認事件不在活動循環中，請按循環按鈕翻頁瀏覽循環。?D按鈕-更改當前顯示的變量。按下此按鈕可逐步顯示在序列P、S、V、X和Y中從顯示選擇組中的任何起點開始的位置。
?單位按鈕-顯示字母數字顯示中顯示的變量單位。當按鈕按下時，應用于顯示變量的單位將以字母數字形式出現（例如“TC2053.P”和“deg F”，“TC2053.V”和“PRCT”）。3秒鐘后，字母數字顯示將返回變量標簽。?S條形圖-此垂直條形圖顯示激活回路中控制器設定點的縮放范圍。
條形圖高度將設定點顯示為范圍值的百分比?？梢圆榭匆怨こ虇挝槐硎镜脑O定點按D按鈕顯示點S參數（如TC2053.S）。?P條形圖-此垂直條形圖顯示活動回路中控制器過程的縮放范圍。
條形圖高度將過程顯示為范圍值的百分比。工程單位中的過程可通過以下方式查看：
按D按鈕顯示點P參數（如TC2053.P）。
LOOP Pushbutton - One or more loops can be configured. When more than one loop has been configured, the
LOOP button will advance the operator display to the next Active Loop. All operator controls now affect the
Active Loop that is currently shown in the alphanumeric display (e.g. FC2367). When a loop is first displayed,
the loop tag will appear in the alphanumeric and the displayed variable will be the same as when the loop was
last viewed.
? ACK Pushbutton - this button is used together with the L and S status LEDs to manage events (e.g. alarm,
status, and error conditions) within the controller. Events have user assigned priorities 1-5 (with 1 the highest)
and will be organized within the controller, first by priority and then by order of occurrence.
? S Status LED - Indicates that event is active in the Station. A flashing LED indicates that the event needs
to be acknowledged.
? L Status LED - Indicates that event is active in the displayed Loop. A flashing LED indicates that the event
needs to be acknowledged. Priority:
? Priority 1 causes the station bargraphs and event LEDs to flash and requires acknowledgment to stop
flashing. This is the highest priority.
? Priority 2 also flashes the bargraphs but stops flashing when the event clears (i.e. Self Clearing).
? Priority 3 causes the event LEDs L & S to flash and stops only when the event is acknowledged.
? Priority 4 also causes the event LEDs to flash but stops when the event clears.
? Priority 5 displays the event but does not require that it be acknowledged. This is the lowest priority.
If the event is in the active loop, the alphanumeric display will alternate between the loop tag and the
unacknowledged condition (e.g. ‘TC2053.P’ <---> ‘A3 HI’). Press the ACK button to acknowledge this condition
and stop the flashing.
The ACK button, after all events have been acknowledged, can then be used to scroll through any active alarm or
status conditions within the Active Loop. Pressing the ACK button will scroll through the list of active events and
wrap around to the start of the list when more than one event is active. This function will time out if the ACK
button is not pressed for 3 seconds and return to the normal display mode.
If an unacknowledged event is not within the active loop, press the LOOP button to page through the loops.
? D Pushbutton - changes the variable currently displayed. Pressing this pushbutton steps the display one
position in the sequence P, S, V, X and Y from any starting point within the display select group.
? UNITS Pushbutton - displays the units of the variable shown in the alphanumeric display. When the button is
pressed the units that apply to the displayed variable will appear in the alphanumeric (e.g. ‘TC2053.P’ ‘deg F’,
‘TC2053.V’ ‘PRCT’). After 3 seconds, the alphanumeric display will return to the variable tag.
? S Bargraph - this vertical bargraph displays the scaled range of the controller setpoint in the Active Loop.
Bargraph height shows the setpoint as the % of range value. The setpoint in engineering units can be viewed
by pressing the D button to display the dot S parameter (e.g. TC2053.S).
? P Bargraph - this vertical bargraph displays the scaled range of the controller process in the Active Loop.
Bargraph height shows the process as the % of range value. The process in engineering units can be viewed by
pressing the D button to display the dot P parameter (e.g. TC2053.P).
