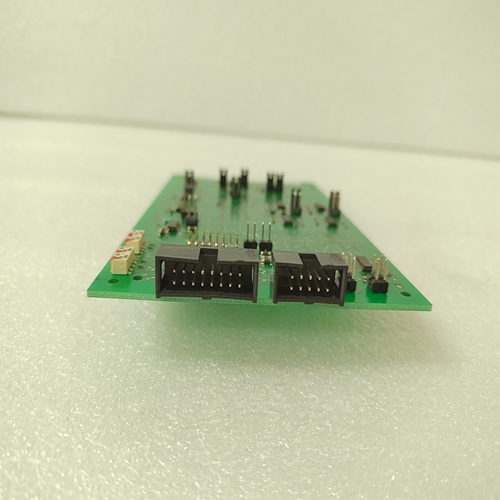

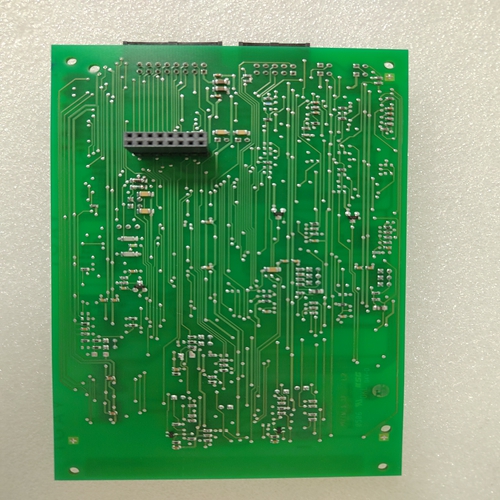

VT-MVTW-1-16/D伺服驅動模塊
控制主接觸器（K1）的接通和斷開通過數字輸出DO5。在緊急情況下關閉主接觸器由緊急斷開控制按鈕，可隨時關閉。負載下
主接觸器產生火花的條件當火花發生時產生高電壓出來為保護轉換器免受高壓a壓敏電阻MOV S20K625需要與直流并聯接線盒C1/D1。
在所有緊急情況下，驅動器故障跳閘
因為電樞電路開路。概述本手冊旨在幫助以下人員：
晶閘管功率轉換器的規劃、安裝、啟動和維護。
這些人應具備：?物理和電氣工程、電氣布線原理和組件的基本知識
電氣工程中使用的符號，以及?直流驅動器和產品的基本經驗。
操作面板DCS 400 PAN
控制和顯示面板用于參數設置，用于反饋值測量和驅動采用DCS 400系列晶閘管功率轉換器進行控制。
面板鏈接
DCS 400 PAN通過串行接口，在通電時可拆卸。初始化
接通電子電源后，面板顯示：立即獲取實際值。
輸出顯示面板顯示最多可顯示四個實際值
第一行有三個值，第二行有一個值
線對于單個顯示器，可以安排：通過參數面板Act 1…4以任何順序顯示。如果面板狀態行中顯示輸出顯示，按0（18）鍵切換到菜單
選擇菜單選擇模式允許您：訪問參數組和函數
可獲得的按下0（18）鍵后，將始終顯示菜單項1電機設置。
使用這些鍵，上面顯示的列表可以滾動不停。
為了有效地選擇所顯示的特定菜單項，按下（17）確認選擇（5.顯示然后將切換到所選菜單項。前九個菜單項或參數組為：用于設置驅動參數。
要訪問所需的參數組，請選擇使用滾動功能的相關組，以及按下（17（5）進行確認。顯示器現在切換到參數選擇級別。要訪問此組中的參數，請選擇并確認該參數
如上述參數所述組的編號、名稱和帶下劃線的值此時顯示所選參數。
Switch Main Contactor (K1) On and Off is controlled
by digital output DO5. In case of Emergency Off the
Main Contactor is controlled by the Emergency Off
button and can switched off at any time. Under load
condition that produce sparking on Main Contactor
which produce high voltage when the sparking goes
out. To protect the converter against high voltage a
Varistor MOV S20K625 is needed in parallel to the DC
terminal block C1 / D1.
In all cases of Emergency Off the drive trips with fault
because the armature circuit is open.General
This manual is designed to help those responsible for
planning, installing, start-up and servicing the thyristor power converter.
These people should possess:
? basic knowledge of physics and electrical engineering, electrical wiring principles, components
and symbols used in electrical engineering, and
? basic experience with DC drives and products.
Operating panel DCS 400 PAN
The Control and Display Panel is used for parameter
setting, for feedback value measuring and for drive
control with series DCS 400 thyristor power converters.
Panel link
The DCS 400 PAN is connected to the drive via a
serial interface and is removable under power.
Initialization
After switch on electronics supply the panel shows
actual values immediately.
OUPUT display
The panel display can show up to four actual values.
Three values at the first line and one at the second
line. For individual display it is possible to arrange
these in any order via Parameter Panel Act 1…4 .If OUTPUT is indicated in the status line of the panel
display, press the 0(18 key to change over to menu
selection. The menu selection mode allows you to
access the parameter groups as well as the functions
available.
After pressing the 0(18 key, menu item 1 Motor Settings will always be displayed.
Using the keys, the list shown above can be
scrolled endlessly.
To effectively select a specific menu item displayed,
confirm the selection by pressing (17(5 . The display
will then switch to the menu item selected.The first nine menu items or parameter groups are
used for setting the drive parameters.
To access the desired parameter group, select the
group concerned using the scrolling functions and
confirm by pressing (17(5 . The display now switches
to the parameter selection level. To access a parameter from this group, select and confirm the parameter
concerned as described above for the parameter
group. The number, name and underlined value of the
parameter selected is now displayed.
