公司主營產品圖展示
產品優勢
1：國外專業的供貨渠道，具有價格優勢
2：產品質量保證，讓您售后無憂
3：全國快遞包郵
產品詳情介紹

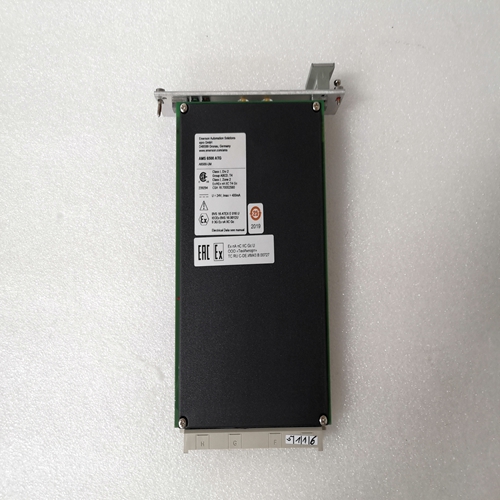

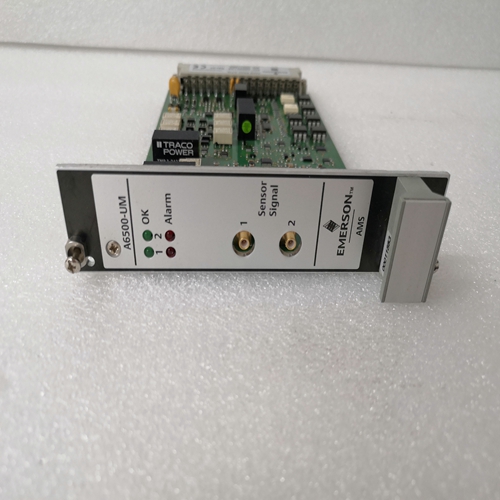

A6500-UM通用測量卡
按ENTER鍵打開系統控制器子菜單，其中VMEbus系統資源被配置。
VME字節交換此字段用于配置VMEbus主和從字節交換選項。這個選項包括字節交換全部（默認）、字節交換從屬、字節交換主和禁用。
主界面按ENTER鍵打開主界面子菜單，其中VMEbus主界面接口已配置。
從屬接口這是標題，不是字段。從機1和2運行模式
此字段允許配置VMEbus從設備1和2。選項包括可編程（默認）且兼容。選擇可編程允許您：配置和啟用VMEbus從站1和2，就像從站3、4、5、6、7和8一樣。選擇兼容時，BIOS會(huì )自動配置并啟用VMEbus
從設備1和2。兼容設置XVME-660從設備接口，以便與未使用的舊Xycom Automation VME PC處理器板兼容宇宙芯片。
sla這些字段確定的前12位的基本VMEbus地址前綴
VMEbus從接口將響應的地址。這三個字段是這12位的高（H）、中（M）和低（L）半字節。地址為HML00000h。在默認屏幕配置中，H為A，M為A，L為4，因此地址為AA400000h。
這些值根據大小和地址空間字段值而變化。當地址空間值為VMEbus標準，必須定位雙訪問存儲器
在1 MB邊界上，上兩個半字節被忽略，因此高和中半字節變?yōu)?，并變?yōu)橹蛔x。當地址空間值為VMEbus擴展時，從屬地址必須是從屬內存大小的倍數。當大小大于1 MB時，低半字節被截斷為偶數。
注意：使用這些字段設置的地址是VMEbus處理器。XVME-660上的PC/AT處理器將看到翻譯的
住址此轉換（以及轉換量）由BIOS和計算在BIOS設置中不可由用戶配置。關于翻譯的討論見第67頁地址。進行應保存的更改后，始終選擇退出或保存更改或保存更改。這兩個過程都將更改存儲在電池支持的CMOS RAM中。
下次啟動計算機時，BIOS將根據設置選擇存儲在CMOS中。如果這些值導致系統引導失敗，重新啟動并進入BIOS設置。在BIOS設置中，您可以加載默認值（加載設置默認值）或嘗試更改導致啟動失敗的選擇。
Press ENTER to open the System Controller submenu, where VMEbus system resources
are configured.
VME Byte Swaps This field is used to configure VMEbus Master and Slave byte-swapping options. The
choices are Byte Swap All (default), Byte Swap Slave, Byte Swap Master, and Disabled.
Master Interface Press ENTER to open the Master Interface submenu, where the VMEbus master
interface is configured.
Slave Interface This is a heading, not a field.
Slave 1 & 2 Operational
Mode
This field allows configuration of VMEbus Slaves 1 and 2. The choices are
Programmable (default) and Compatible. Selecting Programmable allows you to
configure and enable VMEbus slaves 1 and 2 just like slaves 3, 4, 5, 6, 7, and 8.
When Compatible is selected, the BIOS automatically configures and enables VMEbus
slaves 1 and 2. Compatible sets up the XVME-660 slave interface so that it is
compatible with older Xycom Automation VME PC processor boards which did not use
the Universe chip. SlaThese fields determine the base VMEbus address prefix for the first 12 bits of the
address to which the VMEbus slave interface will respond. The three fields are the
high (H), middle (M), and low (L) nibbles of these 12 bits. The address is HML00000h.
In the default screen configuration H is A, M is A, and L is 4, so the address is
AA400000h.
The values change depending on the Size and Address Space field values. When the
Address Space value is VMEbus Standard, the dual-access memory must be located
on a 1 MB boundary and the upper two nibbles are ignored, so the high and medium
nibbles are changed to 0 and are made read-only. When the Address Space value is
VMEbus Extended, the slave address must be a multiple of the slave memory size.
When the Size is greater than 1 MB, the low nibble is truncated to an even value.
Note: The address that is set with these fields is the address that is used by the
VMEbus processors. The PC/AT processor on the XVME-660 will see a translated
address. This translation (and the amount of translation) is calculated by the BIOS and
is not user-configurable in the BIOS setup. See p. 67 for a discussion of translation
addresses. After making changes that should be saved, always select either Exit Saving Changes
or Save Changes. Both procedures store the changes in battery-backed CMOS RAM.
The next time you boot your computer, the BIOS configures your system according to
the setup selections stored in CMOS. If those values cause the system boot to fail,
reboot and enter the BIOS setup. In the BIOS setup, you can load the default values
(Load Setup Defaults) or try to change the selections that caused the boot to fail.
