產品內容介紹

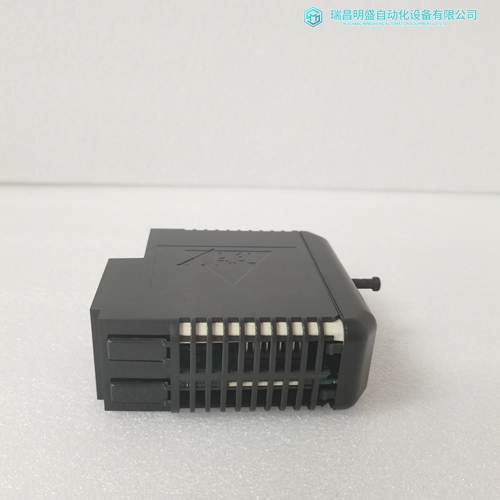

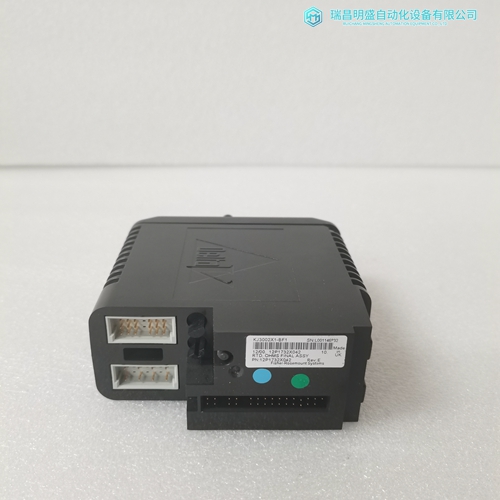

KJ3002X1-BF1模擬量輸入卡件
寫入寄存器開始
0至4999此參數指定模塊內存中寫入數據區域的開始。此中的數據區域將從處理器轉入。
注：用戶數據庫總內存空間限于模塊內存的前5000個寄存器，地址0到4999。因此，此參數的實際限制為4999減去為寫入輸入的值寄存器計數，以便寫入數據區不會(huì )嘗試擴展以上地址4999。
讀取數據和寫入數據區必須配置為占用模塊內存中的單獨地址范圍，并且不應允許重疊。
寫入寄存器計數0到5000此參數指定模塊內存的寫入數據區域的大小以及要從處理器傳輸到此內存區域的寄存器數，最多為最大值為5000字。
注：總讀取寄存器計數和寫入寄存器計數不能超過5000個總寄存器。讀取數據和寫入數據區必須配置為占用模塊內存和不允許重疊。
失敗標志計數如果該值大于零，協議通信將中斷一次檢測到背板故障，或與處理器的通信失敗。值為零將禁用此功能。
初始化輸出數據0=否，1=是此參數用于確定模塊的輸出數據是否使用處理器中的值初始化。
如果該值設置為0，則輸出數據將為初始化為0。
如果該值設置為1，則將使用來自加工機使用此選項需要關聯的梯形圖邏輯來從處理器到模塊。
客戶端錯誤/狀態指針-1至4990此參數設置客戶端錯誤/狀態所在的內部數據庫中的地址將放置數據。如果錯誤/狀態數據需要移動到處理器，并且放入ReadData數組中，輸入的值應該是模塊內存地址在“讀取數據”區域中。
如果該值設置為-1，錯誤/狀態數據將不會(huì )存儲在模塊的內部數據庫，不會(huì )傳輸到處理器的ReadData大堆啟用錯誤/狀態指針是可選的。
或者處理器可以請求特定客戶端，并以特殊客戶端狀態返回有關更多信息，請參閱客戶端狀態塊（第131頁）。
命令錯誤指針
-1至4999此參數設置命令錯誤列表所在的內部數據庫中的地址將放置數據。如果要將命令錯誤列表數據移動到處理器并放入ReadData數組中，則輸入的值應為模塊讀取數據區域中的內存地址。如果該值設置為-1，則命令錯誤列表數據不會(huì )存儲在模塊的內部數據庫中，也不會(huì )傳輸到處理器的ReadData數組。
啟用命令錯誤指針是可選的?；蛘?，命令錯誤列表處理器可以請求特定客戶機的數據，并以特殊格式返回客戶端狀態塊。有關更多信息，請參閱客戶端狀態塊（第131頁）。
Write Register Start
0 to 4999 This parameter specifies the start of the Write Data area in module memory. Data in this area will be transferred in from the processor. Note: Total user database memory space is limited to the first 5000 registers of module memory, addresses 0 through 4999. Therefore, the practical limit for this parameter is 4999 minus the value entered for Write Register Count, so that the Write Data Area does not try to extend above address 4999. Read Data and Write Data Areas must be configured to occupy separate address ranges in module memory and should not be allowed to overlap. Write Register Count 0 to 5000 This parameter specifies the size of the Write Data area of module memory and the number of registers to transfer from the processor to this memory area, up to a maximum value of 5000 words. Note: Total Read Register Count and Write Register Count cannot exceed 5000 total registers. Read Data and Write Data Areas must be configured to occupy separate address ranges in module memory and should not be allowed to overlap. Failure Flag Count If this value is greater than zero the protocol communication will be interrupted once a backplane failure is detected, or communication with the processor fails. A value of zero will disable this feature. Initialize Output Data 0 = No, 1 = Yes This parameter is used to determine if the output data for the module should be initialized with values from the processor. If the value is set to 0, the output data will be initialized to 0. If the value is set to 1, the data will be initialized with data from the processor. Use of this option requires associated ladder logic to pass the data from the processor to the module.
Client Error/Status Pointer
-1 to 4990 This parameter sets the address in the internal database where the Client error/status data will be placed. If the error/status data needs to be moved to the processor and placed into the ReadData array, the value entered should be a module memory address in the Read Data area. If the value is set to -1, the error/status data will not be stored in the module's internal database and will not be transferred to the processor's ReadData array. Enabling the Error/Status Pointer is optional. Alternatively, the error/status data for a specific Client can be requested by the processor and returned in a special Client Status block. For more information, see Client Status Blocks (page 131). Command Error Pointer -1 to 4999 This parameter sets the address in the internal database where the Command Error List data will be placed. If you want the Command Error List data to be moved to the processor and placed into the ReadData array, the value entered should be a module memory address in the Read Data area. If the value is set to -1, the Command Error List data will not be stored in the module's internal database and will not be transferred to the processor's ReadData array. Enabling the Command Error Pointer is optional. Alternatively, the Command Error List data for a specific Client can be requested by the processor and returned in a special Client Status block. For more information, see Client Status Blocks (page 131).
