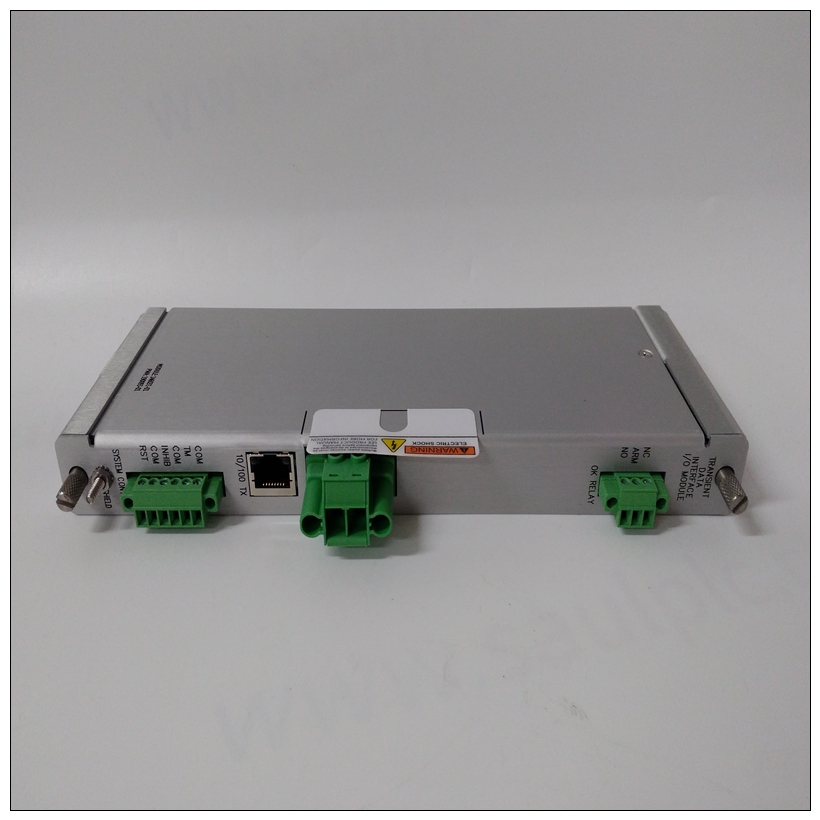

BENTLY 146031-01繼電器模塊，146031-01產品外觀
點輸入/輸出以太網/IP適配器是用于點輸入/輸出模塊。適配器為以下各項提供接口：從以太網。開始之前為了有效地使用適配器，請注意以下注意事項。確定兼容性如果將1734-AENT適配器與1756-ENBT模塊一起使用，或1788-ENBT模塊
BENTLY 146031-01繼電器模塊使用以下所需的固件版本這些橋接模塊：?1756-ENBT固件版本2.3或更高版本?1788-ENBT固件版本1.33或更高版本如果使用BootP實用程序為適配器分配IP地址，請使用版本2.3.2或更高版本。了解消息傳遞類3（顯式消息）通過1734-AENT適配器請求特定點輸入/輸出模塊可能并不總是收到響應來自輸入/輸出模塊。如果輸入/輸出模塊沒有在響應請求時，適配器會(huì )以錯誤代碼進行響應表示超時。建立輸入/輸出連接當您啟動點輸入/輸出系統并建立輸入/輸出時連接，輸出轉換到空閑狀態，應用空閑進入運行模式前狀態數據。即使在建立連接的控制器已處于運行模式。配置Autobaud適配器無法重新配置以前安裝的輸入/輸出模塊配置為以固定波特率運行。當您重用點時從另一點輸入/輸出系統輸入/輸出模塊，配置模塊在將其與適配器一起使用之前，先將其連接到autobaud。
報錯 筆記拼音
The POINT I/O EtherNet/IP Adapter is a communications adapter for
POINT I/O modules. The adapter provides an interface for
controlling and communicating with POINT I/O modules from an
Ethernet network.Before You Begin
To effectively use your adapter, note the following considerations.
Determine Compatibility
If using the 1734-AENT adapter with a 1756-ENBT module or
1788-ENBT module, use the following required firmware versions for
these bridge modules:
? 1756-ENBT firmware version 2.3 or greater
? 1788-ENBT firmware version 1.33 or greater
If you use the BootP Utility to assign IP addresses to the adapter, use
version 2.3.2 or greater.
Understand Messaging
Class 3 (Explicit Message) requests through the 1734-AENT adapter to
a specific POINT I/O module may not always receive a response
from the I/O modules. In the case where the I/O module does not
reply to the request, the adapter responds with an error code
indicating a time-out.
Establish I/O Connections
When you power up a POINT I/O system and establish I/O
connections, the outputs transition to the Idle state, applying Idle
state data before going to RUN mode. This occurs even when the
controller making the connection is already in RUN mode.
Configure Autobaud
The adapter cannot reconfigure an I/O module that you previously
configured to operate at a fixed baud rate. When you reuse a POINT
I/O module from another POINT I/O system, configure the module
to autobaud before using it with the adapter.
