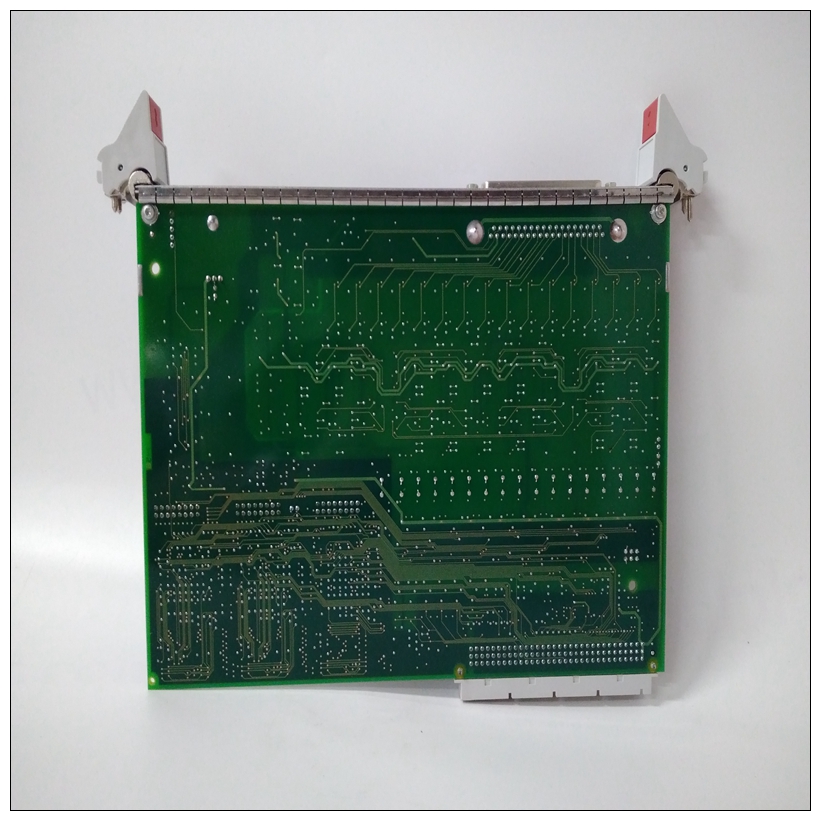

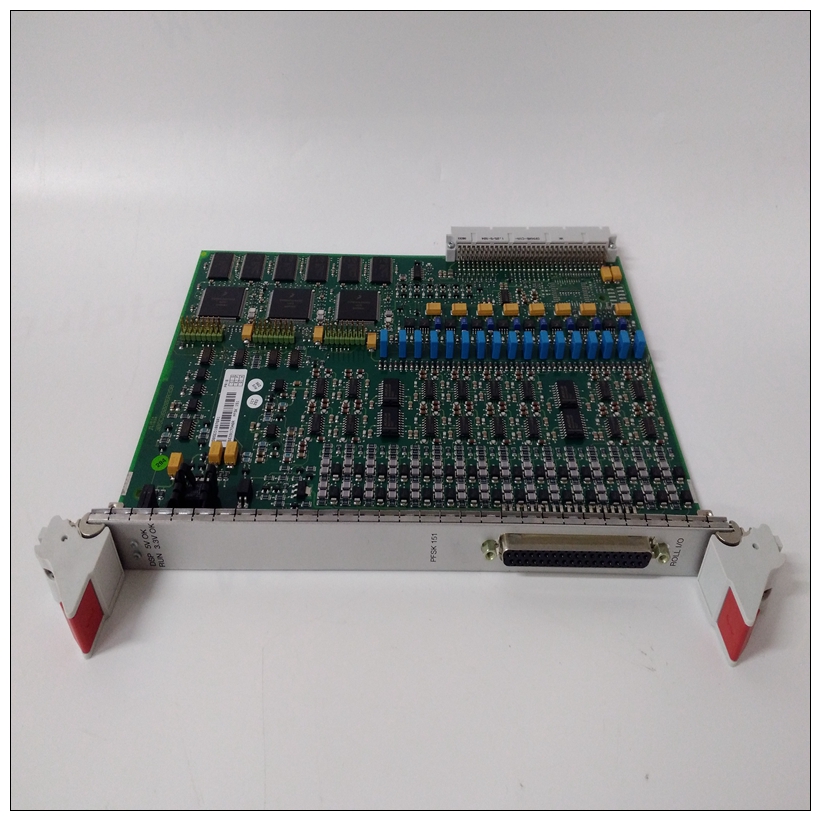

PFSK151 3BSE018876R1控制板卡，ABB產品尺寸
總線錯誤處理由于不同的條件可能導致總線錯誤異常，因此軟件必須能夠區分來源。為了幫助實現這一點MVME147在VMEchip和PCC芯片中提供狀態位。通常，總線錯誤處理程序可以查詢狀態位和繼續查看結果。然而，有兩個條件會(huì )破壞
狀態位：? 總線執行期間可能發生中斷錯誤處理程序（在指令可以寫入狀態之前寄存器以提升中斷掩碼）。如果中斷服務例程導致第二個總線錯誤，該狀態指示第一個總線錯誤的來源可能丟失。軟件必須為解決這個問題而寫。
PFSK151 3BSE018876R1控制板卡PCC可以編程為發生總線錯誤時，生成7級中斷。這
當總線連接時，可能有助于將MC68030強制到已知位置出現錯誤。
? PCC可以采用VMEbus綁定的BERR*（更新MC68030接收和處理之間的狀態位）
總線錯誤，反之亦然。MC68030執行需要不可分割周期的操作序列到本地DRAM和VMEbus。MVME147需要特殊電路來支持這些操作。不可分割的對單個地址的訪問稱為單地址讀修改寫周期（SARMC）。對多個地址的不可分割訪問稱為多地址讀修改寫周期（MARMC）。SARMC周期（由測試和設置（TA）和單字節引起比較和交換（CAS）指令）完全受MVME147。這是可能的，因為VMEbus定義了這樣的周期。MARMC循環（由CAS2和多字節CAS指令引起
和MMU桌面行走）有條件地由MVME147。VMEbus不定義這些周期。PCC中的WAITRMC位控制MARMC的支持周期。如果WAITRMC被清除，則不能保證MARMC循環不可分割。此外，如果MARMC循環跨越船上DRAM和VMEbus內存，MVME147出現故障。如果設置了WAITRMC，則保證MARMC循環是不可分的只有當其他VMEbus板實現其MARMC循環時與MVME147相同（帶有WAITRMC集合）。注意，設置WAITRMC位可能是性能損失。當鉆頭設置后，MVME147等待成為VMEbus主控執行任何MARMC循環（即使它可能只執行車載DRAM）。
Bus Error Processing
Because different conditions can cause bus error exceptions, the
software must be able to distinguish the source. To aid in this, the
MVME147 provides status bits in the VMEchip and PCC chip.
Generally, the bus error handler can interrogate the status bits and
proceed with the result. However, two conditions can corrupt the
status bits:
? An interrupt can happen during the execution of the bus
error handler (before an instruction can write to the status
register to raise the interrupt mask). If the interrupt service
routine causes a second bus error, the status that indicates the
source of the first bus error may be lost. The software must be
written to deal with this. The PCC can be programmed to
generate a Level 7 interrupt when a bus error occurs. This
may help force the MC68030 to a known place when a bus
error occurs.
? The PCC can take a VMEbus bound BERR* (which updates
the status bits) between the MC68030 receiving and handling
of a bus error, or vice-versa. The MC68030 performs operations that require indivisible cycle
sequences to the local DRAM and to the VMEbus. The MVME147
requires special circuitry to support these operations. Indivisible
accesses to a single address are called Single Address Read-ModifyWrite Cycles (SARMC). Indivisible accesses to multiple addresses
are called Multiple Address Read-Modify-Write Cycles (MARMC).
SARMC cycles (caused by Test and Set (TAS) and single byte
Compare and Swap (CAS) instructions) are supported fully by the
MVME147. This is possible because the VMEbus defines such
cycles.
MARMC cycles (caused by CAS2 and multi-byte CAS instructions
and by MMU table walking) are conditionally supported by the
MVME147. The VMEbus does not define these cycles.
The WAITRMC bit in the PCC controls the support of MARMC
cycles. If WAITRMC is cleared, MARMC cycles are not guaranteed
to be indivisible. Furthermore, if MARMC cycles straddle onboard
DRAM and VMEbus memory, the MVME147 malfunctions.
If WAITRMC is set, MARMC cycles are guaranteed to be indivisible
only if the other VMEbus board implements its MARMC cycles the
same way as the MVME147 (with WAITRMC set). Note that setting
the WAITRMC bit can be a performance penalty. When the bit is
set, the MVME147 waits to become VMEbus master before it
