PROSOFT MVI56E-MNETC通信模塊  PDF資料

1.產 品 資 料 介 紹：

中文資料：

PROSOFT MVI56E-MNETC 是一款專為 Allen-Bradley ControlLogix 系列控制器設計的 Modbus TCP/IP 通信模塊。該模塊可以將 ControlLogix PLC 與支持 Modbus TCP 協議的設備連接，廣泛應用于工業自動化中的數據傳輸和設備集成，如工廠自動化、能源管理、過程控制等。

產品特點

1. 雙端口以太網連接：MVI56E-MNETC 模塊具備兩個獨立的以太網端口，支持冗余和負載分擔，確保通信的穩定性和可靠性。
2. 高速數據傳輸：支持高達 10/100 Mbps 的傳輸速率，能夠在嚴苛的工業環境中實現高效的數據交換。
3. 模塊化設計：與 ControlLogix 系統無縫集成，插入背板后無需額外的電源供電，模塊即插即用，便于維護和更換。
4. 多設備連接：支持多客戶端/多服務器連接，能夠與多個 Modbus TCP/IP 設備同時通信，提升系統靈活性。
5. 故障恢復：模塊支持數據緩存、自動重連等功能，有效降低因通信中斷帶來的數據丟失風險。
6. 強大的診斷功能：配備 LED 狀態指示燈和模塊診斷工具，便于實時監控模塊狀態，快速排除故障。

技術規格

• 網絡(luò )協議：支持 Modbus TCP/IP 協議，兼容主/從模式。
• 傳輸速度：10/100 Mbps 自適應以太網端口
• 最大連接數：支持多達 30 個客戶端和 10 個服務器連接
• 電源：5V DC（通過 ControlLogix 背板供電）
• 環境溫度：工作溫度范圍為 0°C 至 60°C，適合工業環境
• 安裝類型：安裝在 ControlLogix 背板插槽中，占用一個 I/O 插槽

應用領域

• 工廠自動化：與 ControlLogix 控制系統集成，用于將各種傳感器、執行器等設備的數據傳輸到中央控制室，實現智能制造和生產監控。
• 能源管理：在電力、水務等行業中，用于實時采集和監控電表、流量計等設備的數據，以提升資源管理效率。
• 過程控制：應用于石化、煉油、制藥等行業，將 PLC 與 DCS 或 SCADA 系統對接，實現關鍵過程數據的實時監控和控制。
• 交通運輸：在交通信號控制、隧道監控等場景下，能夠連接不同的網絡(luò )設備，實現實時的數據采集和指令下達。

使用和維護

• 安裝簡便：將模塊直接插入 ControlLogix 系統的 I/O 插槽中，確保與 ControlLogix PLC 的兼容性。
• 配置便捷：利用 ProSoft Configuration Builder (PCB) 軟件進行配置，支持快速設置通信參數，便于用戶初次部署。
• 定期診斷：建議定期查看模塊的 LED 指示燈和使用診斷工具，以確保通信的持續穩定。
• 故障排除：模塊提供多種狀態和錯誤日志，有助于快速排查和解決通信問題。

配置方法

1. 安裝 ProSoft Configuration Builder：打開軟件，添加 MVI56E-MNETC 模塊。
2. 設置網絡(luò )參數：根據網絡(luò )需求配置 IP 地址、子網掩碼和網關地址。
3. 配置 Modbus 通信參數：設置模塊的 Modbus 客戶端/服務器角色、端口號、超時等參數。
4. 上傳到模塊：完成設置后，將配置上傳至模塊，并重啟以應用新設置。

英文資料：

PROSOFT MVI56E-MNETC is a Modbus TCP/IP communication module designed specifically for Allen Bradley ControlLogix series controllers. This module can connect ControlLogix PLC with devices that support Modbus TCP protocol, and is widely used for data transmission and device integration in industrial automation, such as factory automation, energy management, process control, etc.

Product Features

Dual port Ethernet connection: The MVI56E-MNETC module has two independent Ethernet ports, supporting redundancy and load sharing to ensure communication stability and reliability.

High speed data transmission: Supports transmission rates of up to 10/100 Mbps, enabling efficient data exchange in harsh industrial environments.

Modular design: seamlessly integrated with the ControlLogix system, no additional power supply is required after inserting into the backplane, the module is plug and play, easy to maintain and replace.

Multi device connection: Supports multiple client/server connections, can communicate with multiple Modbus TCP/IP devices simultaneously, and enhances system flexibility.

Fault recovery: The module supports functions such as data caching and automatic reconnection, effectively reducing the risk of data loss caused by communication interruptions.

Powerful diagnostic function: Equipped with LED status indicator lights and module diagnostic tools, it facilitates real-time monitoring of module status and quick troubleshooting.

technical specifications

Network protocol: Supports Modbus TCP/IP protocol and is compatible with master/slave mode.

Transmission speed: 10/100 Mbps adaptive Ethernet port

Maximum number of connections: Supports up to 30 clients and 10 server connections

Power supply: 5V DC (powered through the ControlLogix backplane)

Environmental temperature: The working temperature range is from 0 ° C to 60 ° C, suitable for industrial environments

Installation type: Installed in the ControlLogix backplane slot, occupying one I/O slot

application area

Factory Automation: Integrated with the ControlLogix control system, it is used to transmit data from various sensors, actuators, and other devices to the central control room, achieving intelligent manufacturing and production monitoring.

Energy management: Used in industries such as electricity and water to collect and monitor real-time data from devices such as electricity meters and flow meters to improve resource management efficiency.

Process control: applied in industries such as petrochemicals, refining, and pharmaceuticals, it connects PLC with DCS or SCADA systems to achieve real-time monitoring and control of critical process data.

Transportation: In scenarios such as traffic signal control and tunnel monitoring, different network devices can be connected to achieve real-time data collection and command issuance.

Usage and maintenance

Easy installation: Insert the module directly into the I/O slot of the ControlLogix system to ensure compatibility with the ControlLogix PLC.

Convenient configuration: Using ProSoft Configuration Builder (PCB) software for configuration, it supports quick setting of communication parameters, making it easy for users to deploy for the first time.

Regular diagnosis: It is recommended to regularly check the LED indicator lights of the module and use diagnostic tools to ensure continuous and stable communication.

Troubleshooting: The module provides multiple status and error logs to help quickly troubleshoot and resolve communication issues.

Configuration method

Install ProSoft Configuration Builder: Open the software and add the MVI56E-MNETC module.

Set network parameters: Configure IP address, subnet mask, and gateway address according to network requirements.

Configure Modbus communication parameters: Set the Modbus client/server role, port number, timeout, and other parameters of the module.

Upload to module: After completing the settings, upload the configuration to the module and restart to apply the new settings.

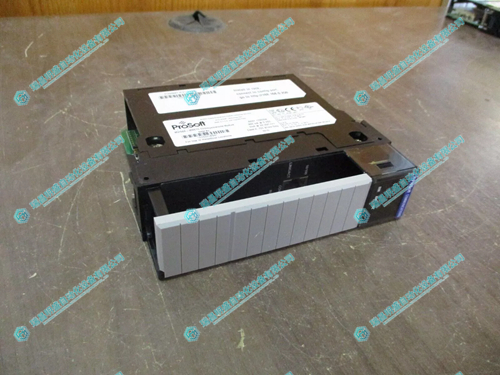

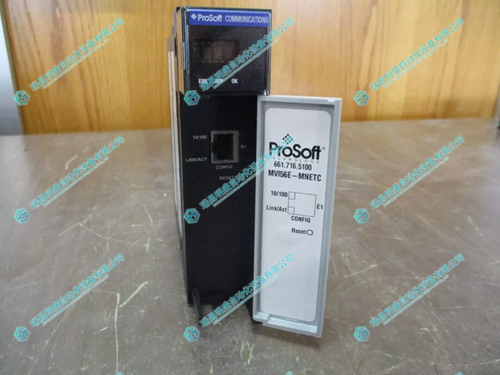

2.產      品      展      示

3.其他產品

KOLLMORGEN S22460-SRS 伺服驅動器

GESSBS-6AH256 固態驅動器

ABB GDC801B101 印刷電路板

4.其他英文產品

ABB UN0841B-P Analog Module

ABB UN0803B-P Printed Circuit Board

ABB UN0503a-P Digital Output Module

5.更多庫存型號

本篇文章出自瑞昌明盛自動化設備有限公司官網，轉載請附上此鏈接:http://www.jiangxidcs.co

品牌：PROSOFT

型號：MVI56E-MNETC通信模塊

質保：一年

成色：全新/二手

優勢產品：ABB、GE、FOXBORO、TRICONEX、BENTLY、A-B、MOTOROLA、HONEYWELL 、SCHNEIDER

                    WOODWARD、EMERSON、RELIANCE、DEIF、NI、XYVOM等

特點：主營產品各種模塊/卡件，控制器，觸摸屏，伺服驅動器。

應用行業：廣泛應用于冶金、石油天然氣、玻璃制造業、鋁業、石油化工、煤礦、造紙印刷、紡織印染、機械、電子制造、汽車制造、煙草、塑膠機械、電力、水利、水處理/環保、市政工程、鍋爐供暖、能源、輸配電等

快遞方式：國內順豐、德邦、京東快遞包郵，按照實際報價貨期發貨
