YOKOGAWA SDV144-S63 數字輸入模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
橫河（Yokogawa）的 SDV144-S63 數字輸入模塊是一款用于工業自動化系統的高性能模塊，專為接收和處理數字信號而設計。
主要特點：
16通道輸入： 每個模塊提供16個獨立的數字輸入通道，支持24V DC信號。
模塊隔離： 模塊內部具有隔離設計，有效防止信號干擾，確保系統穩定運行。
標準型設計： 配備壓鉗接線端子或MIL電纜連接方式，方便與其他設備連接。
高可靠性： 采用工業級元件，確保在惡劣環境下的長期穩定運行。
技術規格：
型號： SDV144-S63
輸入類型： 數字輸入
輸入通道數： 16
輸入電壓： 24V DC
隔離方式： 模塊隔離
連接方式： 壓鉗接線端子或MIL電纜
應用領域：
SDV144-S63 數字輸入模塊廣泛應用于以下領域：
工業自動化： 用于接收來自傳感器、開關等設備的數字信號，實現過程控制和監測。
過程控制系統： 在化工、石油、天然氣等行業的過程控制系統中，作為信號輸入模塊，確保數據采集的準確性。
樓宇自動化： 用于樓宇管理系統中，接收門禁、照明等設備的狀態信號，實現智能化管理。
安裝與維護：
安裝： 根據產品手冊，將模塊正確安裝在控制系統的I/O槽中，確保連接牢固。
維護： 定期檢查模塊的工作狀態，清潔接線端子，防止接觸不良。
注意事項： 在安裝和維護過程中，務必斷開電源，遵循相關安全操作規程。
注意事項：
電源要求： 確保提供穩定的24V DC電源，避免電壓波動影響模塊性能。
環境條件： 模塊應在規定的溫度和濕度范圍內運行，避免在極端環境下使用。
兼容性： 在選型時，確認模塊與現有系統的兼容性，確保系統的整體性能。
英文資料：
Yokogawa's SDV144-S63 digital input module is a high-performance module designed for receiving and processing digital signals in industrial automation systems.
Main features:
16 channel input: Each module provides 16 independent digital input channels, supporting 24V DC signals.
Module isolation: The module has an isolation design inside to effectively prevent signal interference and ensure stable system operation.
Standard design: equipped with crimping terminal blocks or MIL cable connection methods for easy connection with other devices.
High reliability: using industrial grade components to ensure long-term stable operation in harsh environments.
Technical specifications:
model: SDV144-S63
Input type: numeric input
Number of input channels: sixteen
Input voltage: 24V DC
Isolation method: module isolation
Connection method: crimping terminal or MIL cable
Application areas:
The SDV144-S63 digital input module is widely used in the following fields:
Industrial automation: used to receive digital signals from sensors, switches, and other devices to achieve process control and monitoring.
Process control system: In process control systems in industries such as chemical, petroleum, and natural gas, it serves as a signal input module to ensure the accuracy of data acquisition.
Building automation: used in building management systems to receive status signals from access control, lighting, and other equipment, achieving intelligent management.
Installation and maintenance:
Installation: Install the module correctly into the I/O slot of the control system according to the product manual, ensuring a secure connection.
Maintenance: Regularly check the working status of the module, clean the wiring terminals, and prevent poor contact.
Attention: During installation and maintenance, be sure to disconnect the power supply and follow relevant safety operating procedures.
matters needing attention:
Power requirements: Ensure a stable 24V DC power supply to avoid voltage fluctuations affecting module performance.
Environmental conditions: The module should operate within the specified temperature and humidity range, avoiding use in extreme environments.
Compatibility: When selecting, confirm the compatibility of the module with the existing system to ensure the overall performance of the system.

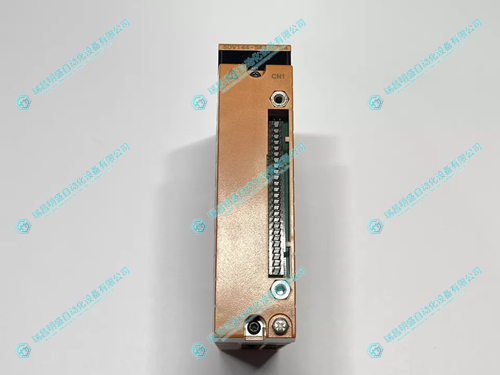

2.產 品 展 示
