A-B 6181P-19B3SW71AC 集成顯示屏 PDF資料
1.產 品 資 料 介 紹：
中文資料：
A-B 6181P-19B3SW71AC 集成顯示屏 是 Allen-Bradley（A-B）推出的一款工業級集成顯示屏，專為工業環境中的人機界面（HMI）應用設計。它結合了高性能的顯示技術和工業自動化控制需求，廣泛應用于生產線、機器控制、設備監控等領域。該顯示屏不僅具有強大的視覺顯示功能，還集成了控制和數據交互功能，能夠幫助操作員更高效地管理和監控工業過程。
主要特點：
- 高分辨率顯示：該集成顯示屏具有 19 英寸的屏幕，提供高清晰度的顯示效果，確保操作員可以清晰查看實時數據和監控信息。
- 工業級設計：采用堅固耐用的外殼和防護設計，適應惡劣的工業環境，能夠承受高溫、振動、濕氣以及其他挑戰性環境條件。
- 觸摸屏操作：配備 觸摸屏接口，使得操作員可以通過簡單的觸摸進行控制和設置，提升操作的便捷性和效率。
- 廣泛的兼容性：兼容 Allen-Bradley 控制系統，如 PLC、PAC，以及其他工業控制系統，通過多種工業協議（如 Ethernet/IP）實現無縫集成。
- 高亮度顯示：具有較高亮度和對比度，即使在光線較強的環境下也能保證清晰可見。
- 多種輸入/輸出選項：支持多種輸入/輸出接口，方便與其他自動化設備連接，進行數據交換和通信。
技術規格：
- 屏幕尺寸：19 英寸
- 顯示分辨率：高分辨率，適應各種工業控制和顯示需求
- 顯示類型：LCD，提供高亮度和高對比度顯示
- 觸摸技術：電阻式或電容式觸摸屏，便于交互操作
- 工作電壓：通常為 24V DC，適用于工業自動化控制系統的電源需求
- 輸入接口：支持 Ethernet/IP、USB、RS-232/485 等多種工業通信協議
- 防護等級：符合工業標準，防塵、防水，適應惡劣工作環境
應用領域：
- 人機界面（HMI）：在工業自動化系統中，作為操作員和機器之間的交互界面，提供監控、控制和數據采集功能。
- 生產線監控：實時顯示生產過程中的關鍵參數，如速度、溫度、壓力等，幫助操作員及時調整和優化生產過程。
- 機器控制：與PLC或其他控制設備集成，提供對機器的遠程控制和狀態顯示，簡化操作流程。
- 設備維護與故障診斷：實時顯示設備的工作狀態、故障報警及故障代碼，幫助維修人員快速診斷并進行維護。
- 過程控制：在自動化過程中，顯示控制系統的運行狀態，確保生產過程的順利進行。
英文資料：
The A-B 6181P-19B3SW71AC integrated display screen is an industrial grade integrated display screen launched by Allen Bradley (A-B), designed specifically for human-machine interface (HMI) applications in industrial environments. It combines high-performance display technology with industrial automation control requirements and is widely used in production lines, machine control, equipment monitoring, and other fields. This display screen not only has powerful visual display functions, but also integrates control and data interaction functions, which can help operators manage and monitor industrial processes more efficiently.
Main features:
High resolution display: This integrated display screen has a 19 inch screen, providing high-definition display effects, ensuring that operators can clearly view real-time data and monitoring information.
Industrial grade design: Adopting a sturdy and durable shell and protective design, it can adapt to harsh industrial environments, withstand high temperatures, vibrations, moisture, and other challenging environmental conditions.
Touch screen operation: Equipped with a touch screen interface, allowing operators to control and set through simple touch, improving the convenience and efficiency of operation.
Wide compatibility: compatible with Allen Bradley control systems such as PLC PAC， And other industrial control systems, seamlessly integrated through multiple industrial protocols such as Ethernet/IP.
High brightness display: With high brightness and contrast, it can ensure clear visibility even in strong lighting environments.
Multiple input/output options: Supports multiple input/output interfaces, making it easy to connect with other automation devices for data exchange and communication.
Technical specifications:
Screen size: 19 inches
Display resolution: High resolution, suitable for various industrial control and display needs
Display type: LCD， Provide high brightness and high contrast display
Touch technology: resistive or capacitive touch screen for easy interactive operation
Working voltage: typically 24V DC, suitable for power requirements of industrial automation control systems
Input interface: Supports various industrial communication protocols such as Ethernet/IP, USB, RS-232/485, etc
Protection level: Compliant with industrial standards, dustproof, waterproof, suitable for harsh working environments
Application areas:
Human Machine Interface (HMI): In industrial automation systems, it serves as an interactive interface between operators and machines, providing monitoring, control, and data acquisition functions.
Production line monitoring: Real time display of key parameters in the production process, such as speed, temperature, pressure, etc., to help operators adjust and optimize the production process in a timely manner.
Machine control: Integrated with PLC or other control devices, providing remote control and status display of the machine, simplifying the operation process.
Equipment maintenance and fault diagnosis: Real time display of the working status, fault alarms, and fault codes of the equipment, helping maintenance personnel to quickly diagnose and perform maintenance.
Process control: In the automation process, display the operating status of the control system to ensure the smooth progress of the production process.

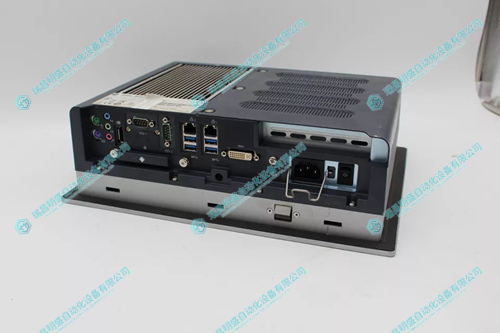

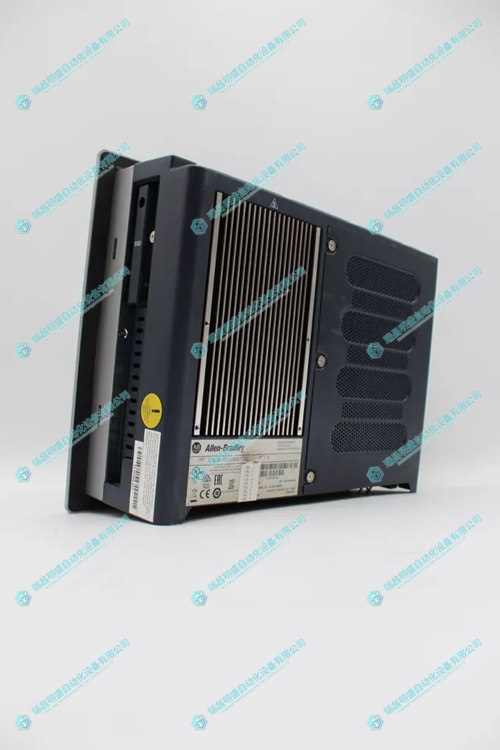

2.產 品 展 示
