ABB CI860K01 3BSE032444R1 電源模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
ABB CI860K01（3BSE032444R1） 是 AC 800M 控制系統中的通信接口模塊，主要用于連接 FOUNDATION 現場總線 HSE（高速以太網）網絡(luò )，以實現與現場設備的高效通信。
產品特點：
- FOUNDATION 現場總線支持：可將 AC 800M 控制器連接至 HSE 子網，實現可靠的現場總線通信。
- 冗余設計：支持冗余配置，提高系統可靠性和穩定性，每個 AC 800M 控制器最多可支持 12 個 CI860 模塊。
- 模塊化結構：便于安裝、維護和系統擴展，適用于不同規模的自動化系統。
- 工業級可靠性：具備較強的抗干擾能力，能夠在嚴苛的工業環境下穩定運行。
技術參數：
- 電源電壓：24 VDC
- 功耗：2 W
- 通信速率：31.25 kbps 至 2 Mbps
- 工作溫度：-25°C 至 70°C
- 尺寸：125 x 75 x 30 mm
- 重量：0.5 kg
應用領域：
- 石油和天然氣：適用于管道監測、井口控制等。
- 化工行業：支持危險區域的自動化控制和數據采集。
- 電力系統：用于發電廠和變電站的過程控制。
- 水處理：支持污水處理、自來水廠等設施的遠程監控。
該模塊由處理器單元通過 CEX 總線供電，因此不需要額外的外部電源。在實際應用中，CI860K01 主要用于確?，F場設備的數據能夠高效、安全地傳輸到控制系統中。
英文資料：
ABB CI860K01 (3BSE032444R1) is a communication interface module in the AC 800M control system, mainly used to connect to the FOUNDATION fieldbus HSE (High Speed Ethernet) network to achieve efficient communication with field devices.
Product features:
FOUNDATION fieldbus support: The AC 800M controller can be connected to the HSE subnet to achieve reliable fieldbus communication.
Redundancy design: Supports redundant configuration, improves system reliability and stability, and each AC 800M controller can support up to 12 CI860 modules.
Modular structure: easy to install, maintain, and expand, suitable for automation systems of different scales.
Industrial grade reliability: It has strong anti-interference ability and can operate stably in harsh industrial environments.
Technical parameters:
Power supply voltage: 24 VDC
Power consumption: 2 W
Communication speed: 31.25 kbps to 2 Mbps
Working temperature:- 25 ° C to 70 ° C
Size: 125 x 75 x 30 mm
Weight: 0.5 kg
Application areas:
Oil and gas: suitable for pipeline monitoring, wellhead control, etc.
Chemical industry: supports automated control and data collection in hazardous areas.
Power system: used for process control in power plants and substations.
Water treatment: supports remote monitoring of facilities such as sewage treatment and water treatment plants.
This module is powered by the processor unit through the CEX bus, so no additional external power supply is required. In practical applications, CI860K01 is mainly used to ensure that data from on-site devices can be efficiently and securely transmitted to the control system.

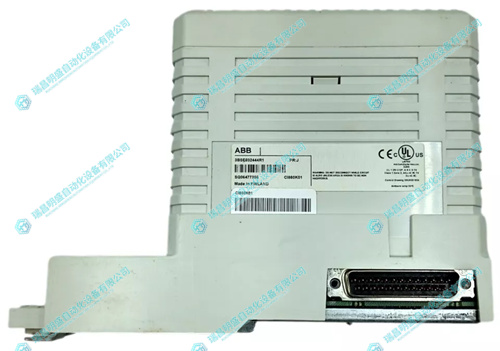

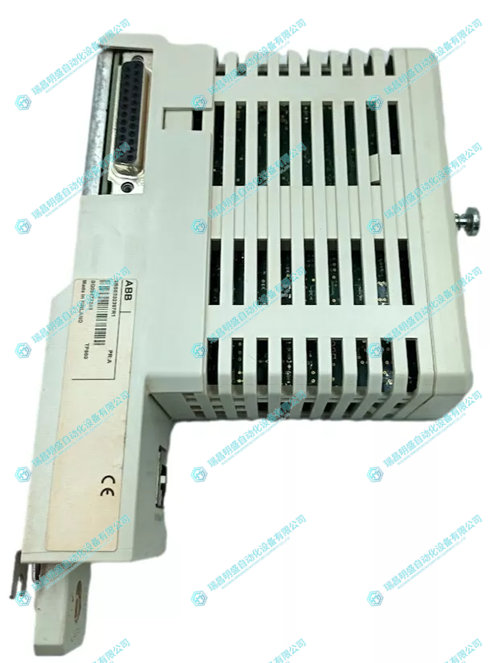

2.產 品 展 示
