NI PXIE-5672信號發生器 PDF資料
1.產 品 資 料 介 紹：
中文資料：
NI PXIe-5672 是 National Instruments（NI）公司推出的一款高性能射頻（RF）信號發生器，基于 PXI Express 平臺設計，適用于需要高精度和高帶寬信號生成的應用。以下是其特點和應用領域：
主要特點：
寬頻率范圍
支持從 85 MHz 到 6.6 GHz 的頻率范圍，適合多種射頻應用。
高帶寬
提供高達 100 MHz 的瞬時帶寬，支持復雜波形生成。
高信號質量
具有優異的相位噪聲和頻譜純度，適合高精度測試。
模塊化設計
基于 PXIe 平臺，支持與其他模塊化儀器集成，構建靈活的測試系統。
快速信號生成
支持實時信號生成和流盤模式，適合動態測試場景。
多種調制方式
支持 AM、FM、PM、QAM 等多種調制方式，滿足復雜信號生成需求。
軟件定義功能
結合 NI LabVIEW 和 Signal Generation Toolkit，支持自定義波形生成和信號處理。
高可靠性
設計符合工業標準，適用于實驗室和生產線環境。
應用領域：
無線通信測試
用于 5G、LTE、Wi-Fi、藍牙等無線通信技術的研發和測試。
雷達與電子戰
用于雷達系統仿真、電子戰設備測試和信號分析。
衛星通信
用于衛星信號生成和通信系統測試。
航空航天與國防
用于飛行器通信系統、導航設備和電子設備的測試與驗證。
半導體測試
用于射頻集成電路（RFIC）和微波器件的性能測試。
科研與教育
在通信、信號處理和射頻工程等領域用于研究和教學實驗。
汽車電子
用于車載通信系統（如 V2X、GPS）和雷達傳感器的測試。
醫療設備
用于醫療成像設備（如 MRI）和無線醫療設備的信號生成與測試。
總結：
NI PXIe-5672 是一款高性能射頻信號發生器，廣泛應用于無線通信、雷達與電子戰、衛星通信、航空航天、半導體測試、科研與教育、汽車電子和醫療設備等領域，滿足高精度、高帶寬信號生成的需求。其模塊化設計和軟件定義功能使其成為靈活且強大的測試解決方案。
英文資料：
NI PXIe-5672 is a high-performance radio frequency (RF) signal generator launched by National Instruments (NI), designed based on the PXI Express platform, suitable for applications that require high-precision and high bandwidth signal generation. The following are its characteristics and application areas:
Main features:
Wide Frequency Range
Supports a frequency range from 85 MHz to 6.6 GHz, suitable for various RF applications.
high bandwidth
Provides up to 100 MHz instantaneous bandwidth and supports complex waveform generation.
High signal quality
It has excellent phase noise and spectral purity, suitable for high-precision testing.
Modular design
Based on the PXIe platform, it supports integration with other modular instruments to build a flexible testing system.
Fast signal generation
Supports real-time signal generation and streaming mode, suitable for dynamic testing scenarios.
Multiple modulation methods
Supports various modulation methods such as AM, FM, PM, QAM, etc., to meet the requirements of complex signal generation.
Software defined functionality
Combining NI LabVIEW and Signal Generation Toolkit, it supports custom waveform generation and signal processing.
high reliability
Designed to meet industry standards and suitable for laboratory and production line environments.
Application areas:
Wireless communication testing
Used for 5G LTE、Wi-Fi、 Research and testing of wireless communication technologies such as Bluetooth.
Radar and Electronic Warfare
Used for radar system simulation, electronic warfare equipment testing, and signal analysis.
satellite communication
Used for satellite signal generation and communication system testing.
Aerospace & Defense
Used for testing and validation of aircraft communication systems, navigation equipment, and electronic devices.
semiconductor testing
Used for performance testing of Radio Frequency Integrated Circuits (RFID) and microwave devices.
Research and Education
Used for research and teaching experiments in fields such as communication, signal processing, and radio frequency engineering.
Automotive Electronics
Used for testing vehicle communication systems (such as V2X, GPS) and radar sensors.
medical equipment
Used for signal generation and testing of medical imaging devices (such as MRI) and wireless medical devices.
Summary:
NI PXIe-5672 is a high-performance RF signal generator widely used in fields such as wireless communication, radar and electronic warfare, satellite communication, aerospace, semiconductor testing, scientific research and education, automotive electronics, and medical equipment, meeting the requirements of high-precision and high bandwidth signal generation. Its modular design and software defined functionality make it a flexible and powerful testing solution.

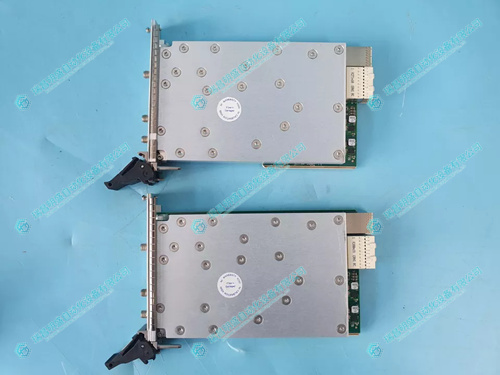

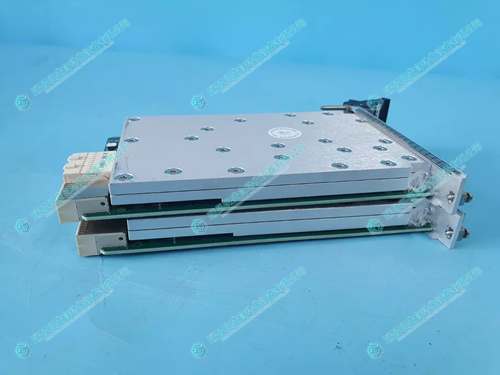

2.產 品 展 示
