GE SSI232.1(029.365083)接口模板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
SSI232.1（部件號：029.365083）是一款由艾默生（Emerson）生產的接口模塊，旨在工業自動化系統中實現與編碼器等設備的通信。該模塊通常用于接收來自旋轉編碼器的同步串行接口（SSI）信號，以獲取位置、速度等參數。
主要特點：
多通道輸入： 提供多個輸入通道，可同時接收多個SSI信號源，提高系統的靈活性和擴展性。
高數據傳輸速率： 支持高速數據傳輸，確保實時獲取編碼器數據，滿足高性能應用需求。
靈活的配置選項： 用戶可根據實際需求配置數據格式、傳輸速率等參數，適應不同應用場景。
可靠的工業設計： 采用堅固的工業級設計，確保在惡劣環境下的穩定運行，適應工業現場的需求。
應用領域：
位置和速度監測： 與旋轉編碼器配合使用，實時監測電機或機械部件的位置信息和轉速。
自動化控制系統： 在自動化生產線中，獲取編碼器數據，實現精確控制和反饋。
技術規格：
輸入類型： 支持SSI協議的編碼器輸入，兼容多種編碼器型號。
數據格式： 支持多種數據格式配置，滿足不同編碼器的數據傳輸要求。
電源要求： 通常為24 V DC電源供電，具體請參考產品手冊。
工作溫度范圍： 適應-20°C至+60°C的環境溫度，確保在各種工業環境下穩定運行。
安裝方式： DIN導軌安裝，方便在控制柜中進行安裝和維護。
英文資料：
SSI232.1 (part number: 029.365083) is an interface module produced by Emerson, designed to enable communication with encoders and other devices in industrial automation systems. This module is typically used to receive synchronous serial interface (SSI) signals from rotary encoders to obtain parameters such as position and velocity.
Main features:
Multi channel input: Provides multiple input channels that can simultaneously receive multiple SSI signal sources, improving the flexibility and scalability of the system.
High data transmission rate: Supports high-speed data transmission to ensure real-time acquisition of encoder data and meet high-performance application requirements.
Flexible configuration options: Users can configure data formats, transmission rates, and other parameters according to their actual needs to adapt to different application scenarios.
Reliable industrial design: Adopting robust industrial grade design to ensure stable operation in harsh environments and meet the needs of industrial sites.
Application areas:
Position and speed monitoring: Used in conjunction with a rotary encoder to monitor real-time position information and speed of motors or mechanical components.
Automated control system: In automated production lines, encoder data is obtained to achieve precise control and feedback.
Technical specifications:
Input type: Supports SSI protocol encoder input, compatible with multiple encoder models.
Data format: Supports multiple data format configurations to meet the data transmission requirements of different encoders.
Power requirements: Usually powered by a 24V DC power supply, please refer to the product manual for details.
Working temperature range: Suitable for ambient temperatures ranging from -20 ° C to+60 ° C, ensuring stable operation in various industrial environments.
Installation method: DIN rail installation facilitates installation and maintenance in the control cabinet.

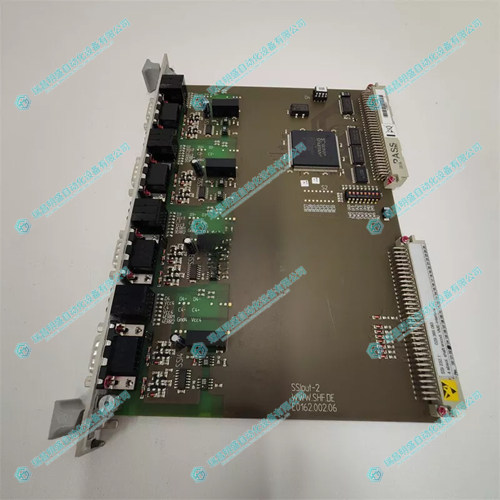

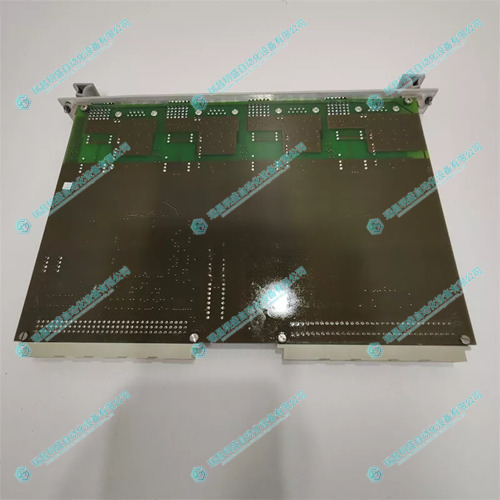

2.產 品 展 示
