GE 193X256AAG02電動電路板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
193X256AAG02 是 GE（通用電氣公司）生產的一款電動電路板，屬于其工業驅動和控制系統的核心部件，主要用于調節和控制電機驅動器的運行狀態，是 GE 193X 系列控制板中的一員。
主要功能包括：
控制電機驅動器的輸出；
處理反饋信號（如電流、電壓）；
協調控制系統的信號傳輸；
提供驅動系統的保護功能。
應用領域如下：
工業自動化控制系統
適用于各種工業場景下的自動化生產線，常見于紡織、造紙、冶金和鋼鐵行業，用于電動機驅動系統的控制與優化。風機與泵類控制系統
用于大型工業風機、水泵的驅動控制，通過精確調節轉速，實現能效優化和運行穩定性。石油和化工行業
適合在高溫、高壓等嚴苛工況下使用，如輸送泵或壓縮系統的控制。軌道交通系統
應用于電動列車或地鐵驅動控制系統中，配合驅動器管理車輛運行狀態。發電廠控制系統
廣泛用于燃氣輪機、蒸汽輪機等發電設備控制，通常與 GE Mark 系列（如 Mark IV、Mark V）控制平臺配合使用。
總結：
193X256AAG02 控制板在工業電機控制和自動化系統中具有重要作用，適用于各種高可靠性、高性能需求的應用環境，尤其是 GE 的大型驅動和能源設備系統。
英文資料：
193X256AAG02 is an electric circuit board produced by GE (General Electric), which is a core component of its industrial drive and control system. It is mainly used to regulate and control the operating status of motor drives and is a member of the GE 193X series control board.
The main functions include:
Control the output of the motor driver;
Processing feedback signals (such as current and voltage);
Coordinate the signal transmission of the control system;
Provide protection function for the drive system.
The application areas are as follows:
industrial automation control system
Suitable for automated production lines in various industrial scenarios, commonly used in the textile, papermaking, metallurgy, and steel industries, for the control and optimization of electric motor drive systems.
Fan and pump control system
Used for driving and controlling large industrial fans and water pumps, achieving energy efficiency optimization and operational stability through precise speed adjustment.
Petroleum and chemical industry
Suitable for use in harsh working conditions such as high temperature and high pressure, such as control of conveying pumps or compression systems.
rail transit system
Applied in the drive control system of electric trains or subways, it cooperates with the driver to manage the vehicle's operating status.
Power plant control system
Widely used for controlling power generation equipment such as gas turbines and steam turbines, it is usually used in conjunction with GE Mark series (such as Mark IV, Mark V) control platforms.
Summary:
The 193X256AAG02 control board plays an important role in industrial motor control and automation systems, suitable for various high reliability and high-performance application environments, especially GE's large-scale drive and energy equipment systems.

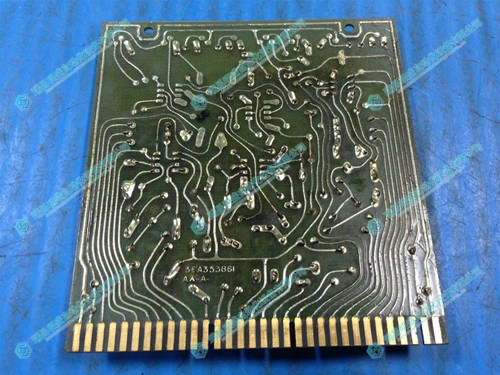

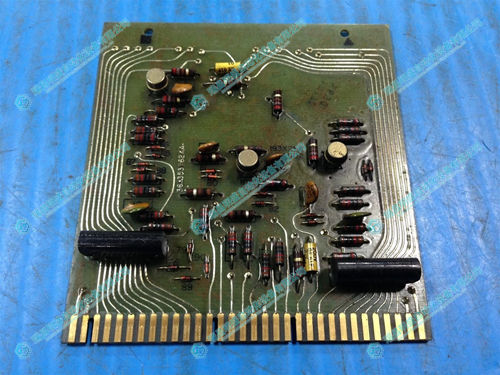

2.產 品 展 示
