GE IS220PSVOH1A 伺服接線板 PDF資料
1.產 品 資 料 介 紹：
中文資料：
一、產品簡介
GE IS220PSVOH1A 是通用電氣（General Electric）公司生產的一款 伺服系統接線板，用于連接和管理伺服驅動器與伺服電機之間的信號和電源線路。該接線板通常應用于 GE Mark VIe、Mark V、PACSystems RX3i 等自動化系統中的運動控制部分，確保伺服系統的高效通信和穩定運行。
二、技術規格
| 項目 | 參數說明 |
|---|---|
| 產品型號 | IS220PSVOH1A |
| 類型 | 伺服接線板（Servo Wiring Board） |
| 功能 | 伺服驅動器與電機間信號及電源接線 |
| 兼容系統 | GE Mark VIe、PACSystems RX3i 等 |
| 接口類型 | 多針連接器，支持編碼器、反饋及電源 |
| 安裝形式 | 插拔式或螺釘固定 |
| 支持電纜類型 | 屏蔽伺服電纜、編碼器信號線 |
| 額定電壓 | 24V DC（信號部分）及相應電機電壓 |
| 使用環境溫度 | 工業環境標準，-20℃ 至 +60℃ |
| 機械尺寸 | 標準工業板卡尺寸，具體尺寸視版本而定 |
三、功能特點
集中接線管理：將伺服驅動器和電機的電源、控制信號、反饋信號統一接入，便于維護和故障排查；
兼容多種編碼器信號：支持增量編碼器和絕對值編碼器接口；
抗干擾設計：采用屏蔽結構與接地措施，保證信號穩定，減少電磁干擾；
模塊化結構：便于快速安裝與更換，支持現場維護；
高可靠性連接：采用工業級連接器，確保長期穩定運行；
安全保護：具備短路和過載保護接口，防止設備損壞。
英文資料：
Brief introduction
GE IS220PSVOH1A is a servo system wiring board produced by General Electric, used to connect and manage signal and power lines between servo drives and servo motors. This wiring board is commonly used in the motion control section of automation systems such as GE Mark VIe, Mark V, PACSystems RX3i, ensuring efficient communication and stable operation of servo systems.
2、 Technical specifications
Project parameter description
Product model IS220PSVOH1A
Type: Servo Wiring Board
Signal and power wiring between functional servo drive and motor
Compatible with systems such as GE Mark VIe, PACSystems RX3i, etc
Interface type multi pin connector, supporting encoder, feedback, and power supply
Installation form: plug-in or screw fixed
Support cable type shielding servo cable, encoder signal line
Rated voltage 24V DC (signal part) and corresponding motor voltage
Using industrial environmental standards for ambient temperature, ranging from -20 ℃ to+60 ℃
Mechanical size standard industrial board size, specific size depends on the version
3、 Functional Features
Centralized wiring management: Unify the power supply, control signals, and feedback signals of servo drives and motors for easy maintenance and troubleshooting;
Compatible with multiple encoder signals: supports incremental encoder and absolute value encoder interfaces;
Anti interference design: adopting shielding structure and grounding measures to ensure signal stability and reduce electromagnetic interference;
Modular structure: easy to install and replace quickly, supports on-site maintenance;
High reliability connection: using industrial grade connectors to ensure long-term stable operation;
Safety protection: Equipped with short-circuit and overload protection interfaces to prevent equipment damage.

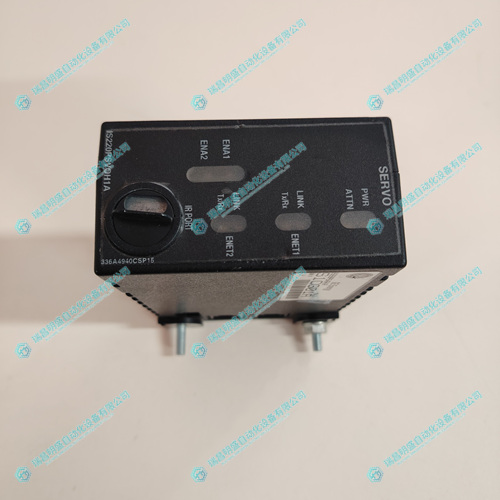

2.產 品 展 示
