HONEYWELL MC-PDOX02 51304487-150 數字輸出模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：

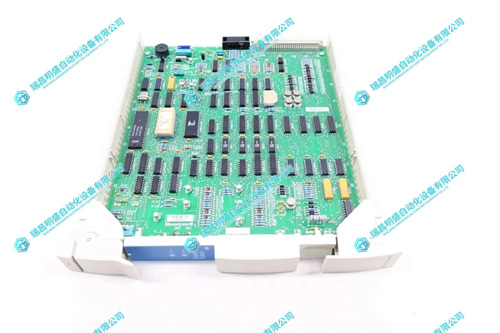

HONEYWELL MC-PDOX02 51304487-150 是一款數字輸出模塊，隸屬于 Honeywell Experion PKS 或 TDC3000 系統架構下的 Process Manager（PM）控制系統平臺，用于將控制器的邏輯控制信號轉換為數字信號輸出，驅動外部執行設備如電磁閥、繼電器、報警器等。
一、基本信息概覽
| 項目 | 內容 |
|---|---|
| 產品名稱 | 數字輸出模塊（Digital Output Module） |
| 型號 | MC-PDOX02 |
| 部件號 | 51304487-150 |
| 制造商 | Honeywell |
| 系統平臺 | TDC3000、Experion PKS、PlantScape |
| 模塊類型 | 多通道數字輸出模塊 |
二、功能說明
主要功能：
將控制器發出的控制命令（如邏輯開/關）輸出至現場設備，實現開關量驅動控制。通道數量：
通常支持 16 點數字輸出（具體通道數視子型號而定）。輸出形式：
開路集電極型輸出、固態繼電器輸出或晶體管輸出（需以技術手冊確認）。負載驅動能力：
可直接驅動低功率負載（如 LED 指示燈、電磁繼電器等）或中繼驅動接觸器。狀態指示：
面板上配有 LED 指示燈，每個通道輸出狀態實時顯示。
英文資料：
HONEYWELL MC-PDOX02 51304487-150 is a digital output module belonging to the Process Manager (PM) control system platform under the Honeywell Expert PKS or TDC3000 system architecture. It is used to convert the logic control signal of the controller into a digital signal output and drive external execution devices such as solenoid valves, relays, alarms, etc.
1、 Overview of Basic Information
Project Content
Product Name: Digital Output Module
Model MC-PDOX02
Part number 51304487-150
Manufacturer Honeywell
System platform TDC3000, Expert PKS, PlantScape
Module type: Multi channel digital output module
2、 Function Description
Main functions:
Output the control commands (such as logic on/off) issued by the controller to the on-site equipment to achieve switch driven control.
Number of channels:
Usually supports 16 point digital output (the specific number of channels depends on the sub model).
Output format:
Open collector type output, solid-state relay output, or transistor output (to be confirmed in the technical manual).
Load driving capability:
It can directly drive low-power loads (such as LED indicator lights, electromagnetic relays, etc.) or relay driven contactors.
Status indication:
The panel is equipped with LED indicator lights, and the output status of each channel is displayed in real-time.
