KEBA TI-570熱電偶輸入模塊 PDF資料
1.產 品 資 料 介 紹：
中文資料：
KEBA TI-570 熱電偶輸入模塊** 是 KeControl 系列控制系統中的模擬量采集模塊，專為接收和處理來自熱電偶傳感器的溫度信號而設計。該模塊通過高速、高精度的模擬-數字轉換器（ADC），將熱電偶的毫伏級信號轉換為可被控制系統處理的數值數據，廣泛應用于各種工業溫控場合。
技術參數：
模塊類型：熱電偶模擬輸入模塊
輸入通道數：8 路獨立熱電偶輸入
支持熱電偶類型：J、K、T、E、N、R、S、B 等多種標準熱電偶
分辨率：16 位 A/D 轉換精度
采樣速率：每通道 50ms～250ms（依據配置）
測量范圍：依據熱電偶類型可覆蓋 -200°C 至 +1800°C
冷端補償：內置冷端自動補償功能（CJC）
通道隔離：每通道電氣隔離，抗干擾性能強
連接方式：通過系統背板或擴展總線連接至主控制器
工作電壓：24V DC 供電
安裝方式：標準 DIN 導軌安裝
工作環境溫度：0°C 至 +55°C
產品應用領域：
1. 注塑機溫度控制系統
采集模具加熱區、噴嘴、筒體等關鍵區域的溫度信號。
與 KePlast 控制器配合，實現閉環溫控。
2. 加熱/冷卻系統過程控制
用于電加熱爐、蒸汽管線、電烘箱、熱處理設備的溫度監測。
實現多點同步采集與區域溫度差控制。
3. 食品與制藥設備監控
對滅菌、烘干、恒溫保存等設備的溫度進行精確測量。
滿足GMP與HACCP等監管需求下的實時溫度數據采集。
4. 包裝與印刷行業
控制封口機、加熱輥、熱壓等部位溫度，確保工藝穩定性。
提供熱封溫區的實時反饋以防質量波動。
5. 冶金與陶瓷高溫過程
采集高溫燒結、熔煉爐等場景下的溫度變化。
模塊支持高溫范圍的熱電偶類型（如 B、R、S 型）。
6. 新能源與儲能設備
檢測電池包、儲能艙、光伏逆變器中的關鍵溫度點。
實現安全監控與過溫保護邏輯。
英文資料：
The KEBA TI-570 thermocouple input module is an analog acquisition module in the KeControl series control system, designed specifically for receiving and processing temperature signals from thermocouple sensors. This module converts the millivolt level signals of thermocouples into numerical data that can be processed by control systems through high-speed and high-precision analog-to-digital converters (ADCs), and is widely used in various industrial temperature control applications.
Technical parameters:
Module Type: Thermocouple Analog Input Module
Number of input channels: 8 independent thermocouple inputs
Support thermocouple types: J, K, T, E, N, R, S, B and other standard thermocouples
Resolution: 16 bit A/D conversion accuracy
Sampling rate: 50ms to 250ms per channel (depending on configuration)
Measurement range: Depending on the type of thermocouple, it can cover temperatures from -200 ° C to+1800 ° C
Cold end compensation: Built in cold end automatic compensation function (CJC)
Channel isolation: Each channel is electrically isolated, with strong anti-interference performance
Connection method: Connect to the main controller through the system backplane or expansion bus
Working voltage: 24V DC power supply
Installation method: Standard DIN rail installation
Working environment temperature: 0 ° C to+55 ° C
Product application areas:
1. Injection molding machine temperature control system
Collect temperature signals from key areas such as the heating zone, nozzle, and cylinder of the mold.
Cooperate with KePlast controller to achieve closed-loop temperature control.
2. Process control of heating/cooling system
Used for temperature monitoring of electric heating furnaces, steam pipelines, electric ovens, and heat treatment equipment.
Realize multi-point synchronous acquisition and regional temperature difference control.
3. Monitoring of food and pharmaceutical equipment
Accurately measure the temperature of sterilization, drying, and constant temperature storage equipment.
Real time temperature data collection to meet regulatory requirements such as GMP and HACCP.
4. Packaging and Printing Industry
Control the temperature of sealing machine, heating roller, hot pressing and other parts to ensure process stability.
Provide real-time feedback on the heat sealing temperature zone to prevent quality fluctuations.
5. High temperature processes in metallurgy and ceramics
Collect temperature changes in scenarios such as high-temperature sintering and melting furnaces.
The module supports thermocouple types with high temperature range (such as B, R, S type).
6. New energy and energy storage equipment
Detect key temperature points in battery packs, energy storage compartments, and photovoltaic inverters.
Implement safety monitoring and over temperature protection logic.

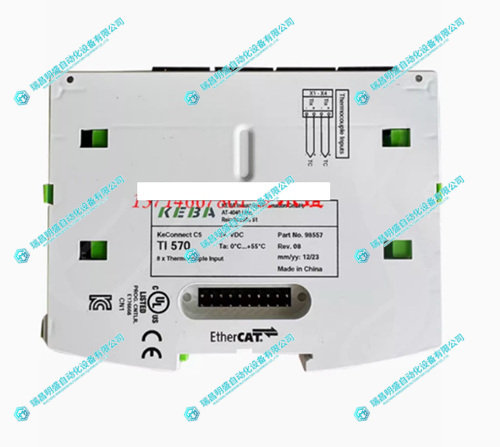

2.產 品 展 示
