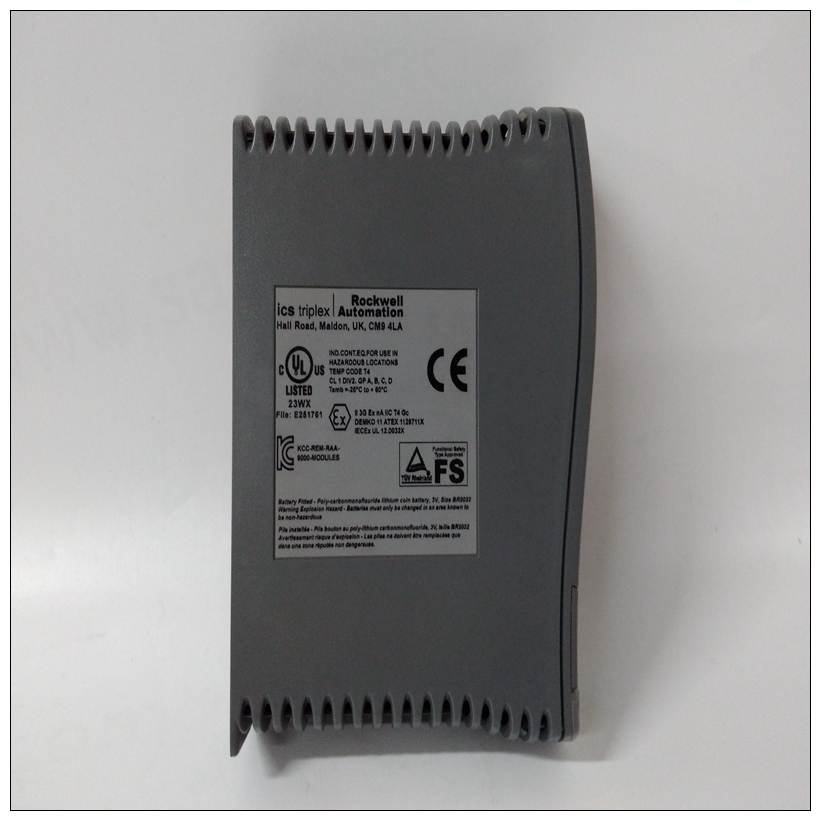

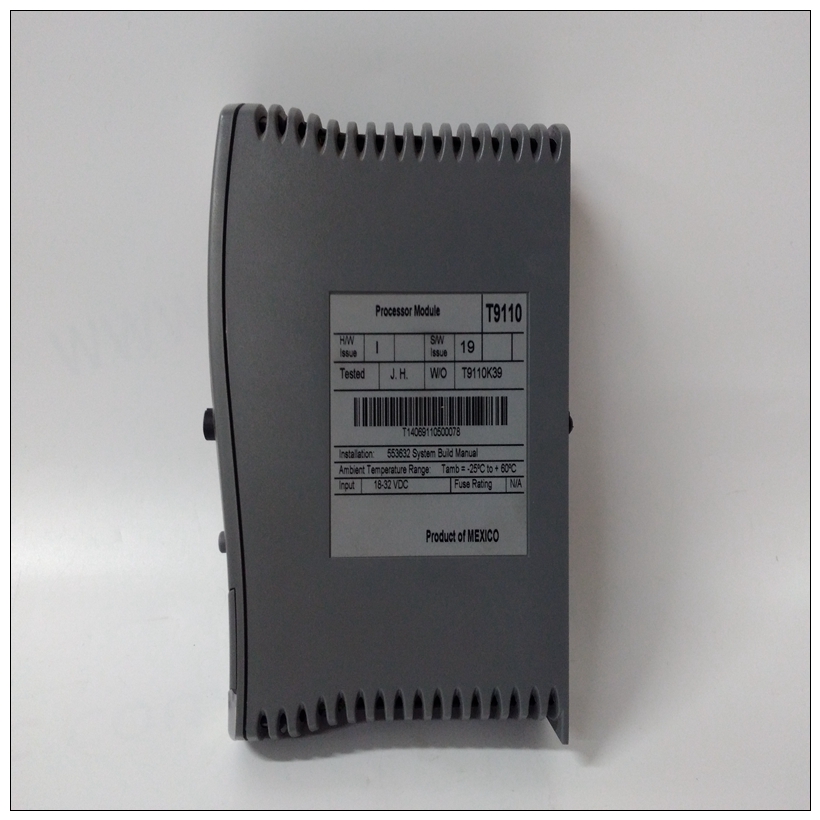

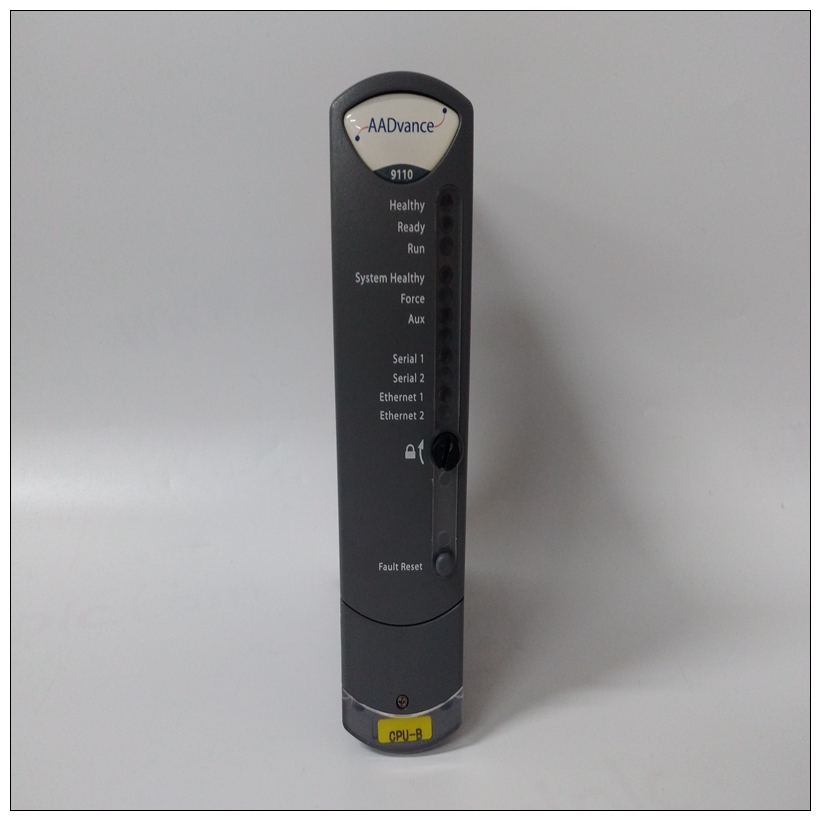

ICS TRIPLEX T9110冗余處理模塊，T9110說明書在線閱讀
引用的參數是左對齊字符（ASCII）字符串用空格字符填充，并顯示引號（“）以指示字符串的大小。未引用的參數被視為數據字符串和數據字符串右對齊。填充數據字符串如果不滿足長度，則使用零。電路板信息塊在出廠前已配置。無需修改塊參數，除非NVRAM已損壞。參考MVME172 VME嵌入式控制器程序員的有關實際位置和其他信息的參考指南電路板信息塊。請參閱摩托羅拉的調試包68K CISC CPU用戶手冊，用于CNFG描述和示例。
ICS TRIPLEX T9110冗余處理模塊環境-設置環境使用ENV命令以交互方式查看和/或配置所有錯誤保存在非易失性RAM（NVRAM）中的操作參數。請參閱摩托羅拉68K CISC CPU用戶的調試包ENV使用說明手冊。有關的其他信息MVME172LX中影響這些參數的寄存器出現在MVME172 VME嵌入式控制器程序員參考指南。下面列出并描述了您可以配置的參數使用環境。顯示的默認值是在以下情況下生效的值：出版物已付印。不要顯示現場服務菜單。遠程啟動方法開關[G/M/B/N]B使用兩種方法[全局控制和狀態在VMEchip2中注冊（GCSR），以及多處理器控制寄存器（MPCR）共享RAM]以傳遞和執行交叉加載程序。支持輸入/輸出的探針系統控制器[是/否]Y將訪問適當的系統總線（例如VMEbus、本地MPU總線）確定是否存在受支持的控制器。否定VMEbus SYSFAIL?始終[是/否]N否定VMEbus SYSFAIL? 成功后完成或進入錯誤命令班長本地SCSI總線重置打開調試器啟動[是/否]N調試器啟動時沒有重置本地SCSI總線。本地SCSI總線協商類型[A/S/N]異步協商
The parameters that are quoted are left-justified character (ASCII) strings
padded with space characters, and the quotes (") are displayed to indicate
the size of the string. Parameters that are not quoted are considered data
strings, and data strings are right-justified. The data strings are padded
with zeroes if the length is not met.
The Board Information Block is factory-configured before shipment.
There is no need to modify block parameters unless the NVRAM is
corrupted.
Refer to the MVME172 VME Embedded Controller Programmer’s
Reference Guide for the actual location and other information about the
Board Information Block. Refer to the Debugging Package for Motorola
68K CISC CPUs User's Manual for a CNFG description and examples.ENV - Set Environment
Use the ENV command to view and/or configure interactively all 172Bug
operational parameters that are kept in Non-Volatile RAM (NVRAM).
Refer to the Debugging Package for Motorola 68K CISC CPUs User’s
Manual for a description of the use of ENV. Additional information on
registers in the MVME172LX that affect these parameters appears in your
MVME172 VME Embedded Controller Programmer’s Reference Guide.
Listed and described below are the parameters that you can configure
using ENV. The default values shown were those in effect when this
publication went to print.Do not display field service menu.
Remote Start Method Switch
[G/M/B/N]
B Use both methods [Global Control and Status
Register (GCSR) in the VMEchip2, and
Multiprocessor Control Register (MPCR) in
shared RAM] to pass and execute cross-loaded
programs.
Probe System for Supported I/O
Controllers [Y/N]
Y Accesses will be made to the appropriate
system buses (e.g., VMEbus, local MPU bus)
to determine presence of supported controllers.
Negate VMEbus SYSFAIL?
Always [Y/N]
N Negate VMEbus SYSFAIL? after successful
completion or entrance into the bug command
monitor.
Local SCSI Bus Reset on
Debugger Startup [Y/N]
N No local SCSI bus reset on debugger startup.
Local SCSI Bus Negotiations
Type [A/S/N]
A Asynchronous negotiations
