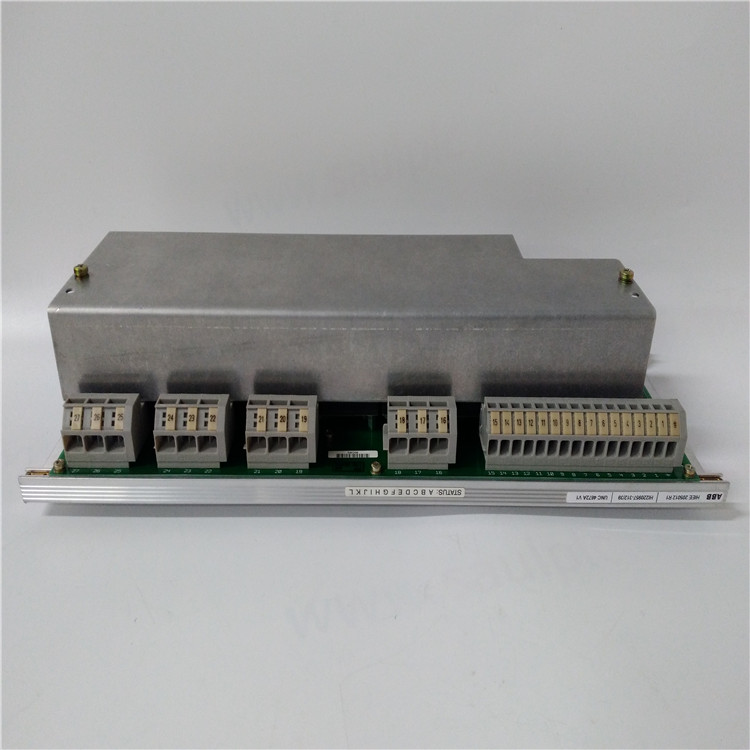

ABB運動控制UNC4611B V2 HIER460378R3的操作

選項模塊的功能包括：

?使用Operating（操作）按鈕選擇的適配器或抽頭操作模式模式跳線（J4）。在適配器模式（默認）下，選項模塊作為支持星形、線性或設備級環（DLR）網絡(luò )拓撲。僅適用于Tap模式與PowerFlex 755驅動器一起使用時，選項模塊使用ENET3（DEVICE）端口作為連接點，用于傳輸“Integrated Motion on”EtherNet/IP網絡(luò )數據到PowerFlex 755驅動器的嵌入式EtherNet/IP適配器。

?工業以太網交換機和ENET1和ENET2網絡(luò )端口為EtherNet/IP星形、線性或設備級環提供連接（DLR）網絡(luò )拓撲。

?ENET3（設備）端口，僅適用于支持傳輸“EtherNet/IP網絡(luò )上的Integrated Motion”該驅動器的數據。

?PowerFlex 750系列的嵌入式電子數據表（EDS）文件無需從Rockwell下載EDS文件的驅動器自動化網站。而是從選項上載EDS文件模塊，使用RSLinx軟件。

?自動設備配置（ADC），即“RSLogix 5000”軟件，版本20或更高版本，功能“支持自動下載配置數據。這發生在Logix控制器之后建立與PowerFlex 750系列的EtherNet/IP網絡(luò )連接驅動器（固件版本4.001或更高版本）及其相關外圍設備。

?固定螺釘，用于將模塊固定并接地至驅動器。

?開關，用于在接通電源之前設置網絡(luò )節點地址或者您可以禁用交換機并使用BOOTP服務器動態主機配置協議（DHCP）服務器或選項模塊參數配置IP地址。

?與配置選項的各種配置工具兼容模塊和主機驅動器。這些工具包括增強的PowerFlex 7-Class驅動器上的HIM（目錄號20-HIM-A6或20-HIM-C6S），以及驅動器配置軟件，如DriveExplorer軟件，版本6.01或更高版本，或DriveExecutive軟件5.01或更高版。

?報告選項模塊和網絡(luò )狀態的狀態指示器表達當卸下驅動器蓋時，它們是可見的。

?輸入/輸出中配置參數的32位數據鏈路，以滿足應用要求（16個數據鏈路，用于將數據從網絡(luò )寫入驅動器，和16個數據鏈路，從驅動器向網絡(luò )讀取數據）。

?顯式消息傳遞支持。

The features of the option module include the following: ? Adapter or Tap mode of operation that is selected by using the Operating Mode Jumper ( J4). In Adapter mode (default), the option module operates as a network communication adapter supporting star, linear or device-level ring (DLR) network topologies. In Tap mode—only intended for use with PowerFlex 755 drives—the option module uses ENET3 (DEVICE) port as a connection point to transfer ‘Integrated Motion on the EtherNet/IP network’ data to the PowerFlex 755 drive’s embedded EtherNet/IP adapter. ? Industrial Ethernet switch, and ENET1 and ENET2 network ports that provide connections for EtherNet/IP star, linear, or device-level ring (DLR) network topologies. ? ENET3 (DEVICE) port—for use with only PowerFlex 755 drives—that supports the transfer of ‘Integrated Motion on the EtherNet/IP network’ data for that drive. ? Embedded electronic data sheet (EDS) files for PowerFlex 750-Series drives that eliminate the need to download an EDS file from the Rockwell Automation website. Instead, the EDS file is uploaded from the option module by using RSLinx software. ? Automatic Device Configuration (ADC), which is an ‘RSLogix 5000 software, version 20 or later, feature’ that supports the automatic download of configuration data. This occurs after the Logix controller establishes an EtherNet/IP network connection to a PowerFlex 750-Series drive (firmware revision 4.001 or later) and its associated peripherals. ? Captive screws to secure and ground the module to the drive. ? Switches to set a network node address before applying power to the drive—or you can disable the switches and use a BOOTP server, a Dynamic Host Configuration Protocol (DHCP) server, or option module parameters to configure the IP address. ? Compatibility with various configuration tools to configure the option module and host drive. The tools include the enhanced PowerFlex 7-Class HIM (catalog number 20-HIM-A6 or 20-HIM-C6S) on the drive, and drive-configuration software, such as DriveExplorer software, version 6.01 or later, or DriveExecutive software, version 5.01 or later. ? Status indicators that report the status of the option module and network communication. They are visible when the drive cover is removed. ? Parameter-configured 32-bit Datalinks in the I/O to meet application requirements (16 Datalinks to write data from the network to the drive, and 16 Datalinks to read data to the network from the drive). ? Explicit Messaging support.
